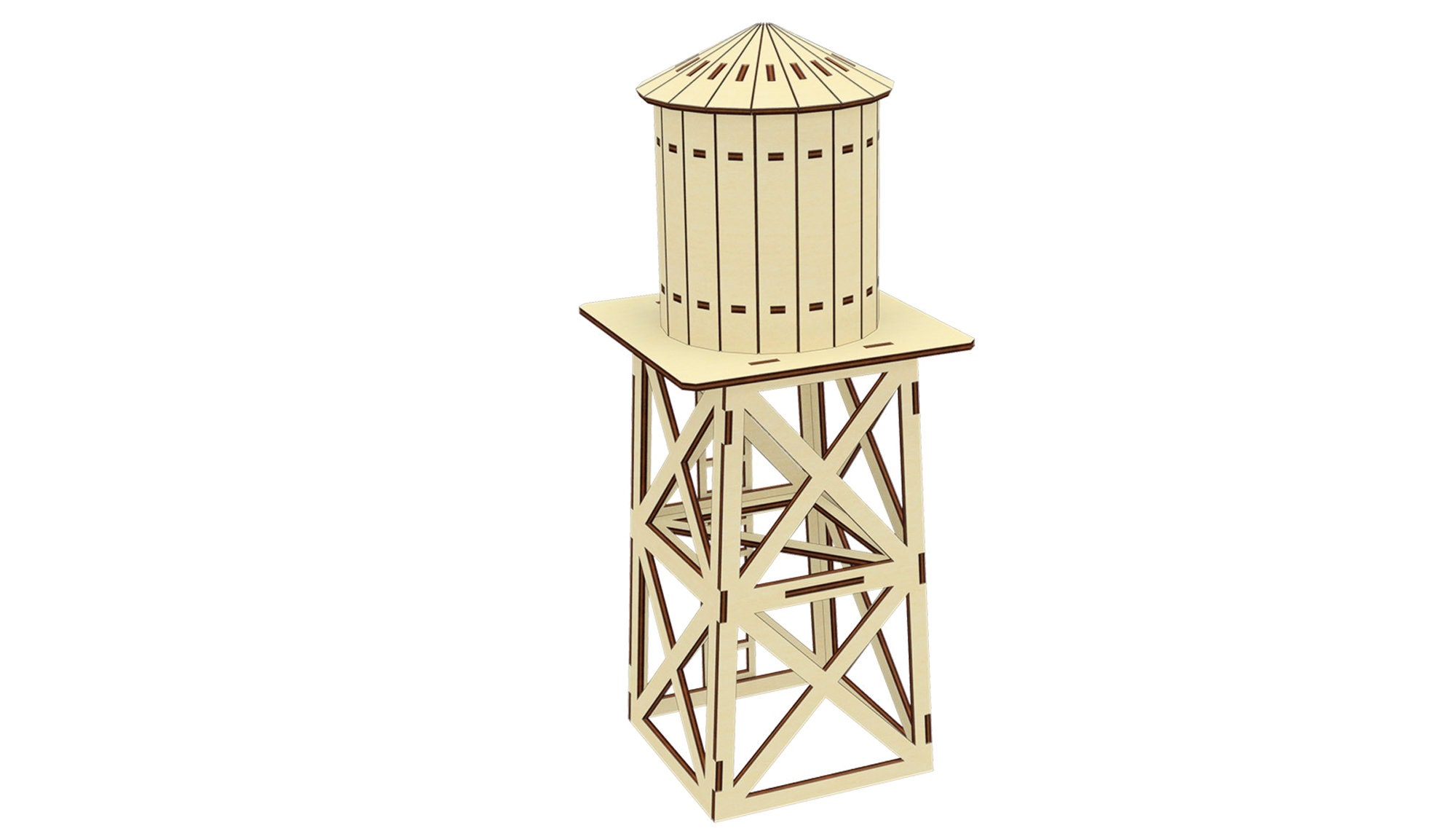

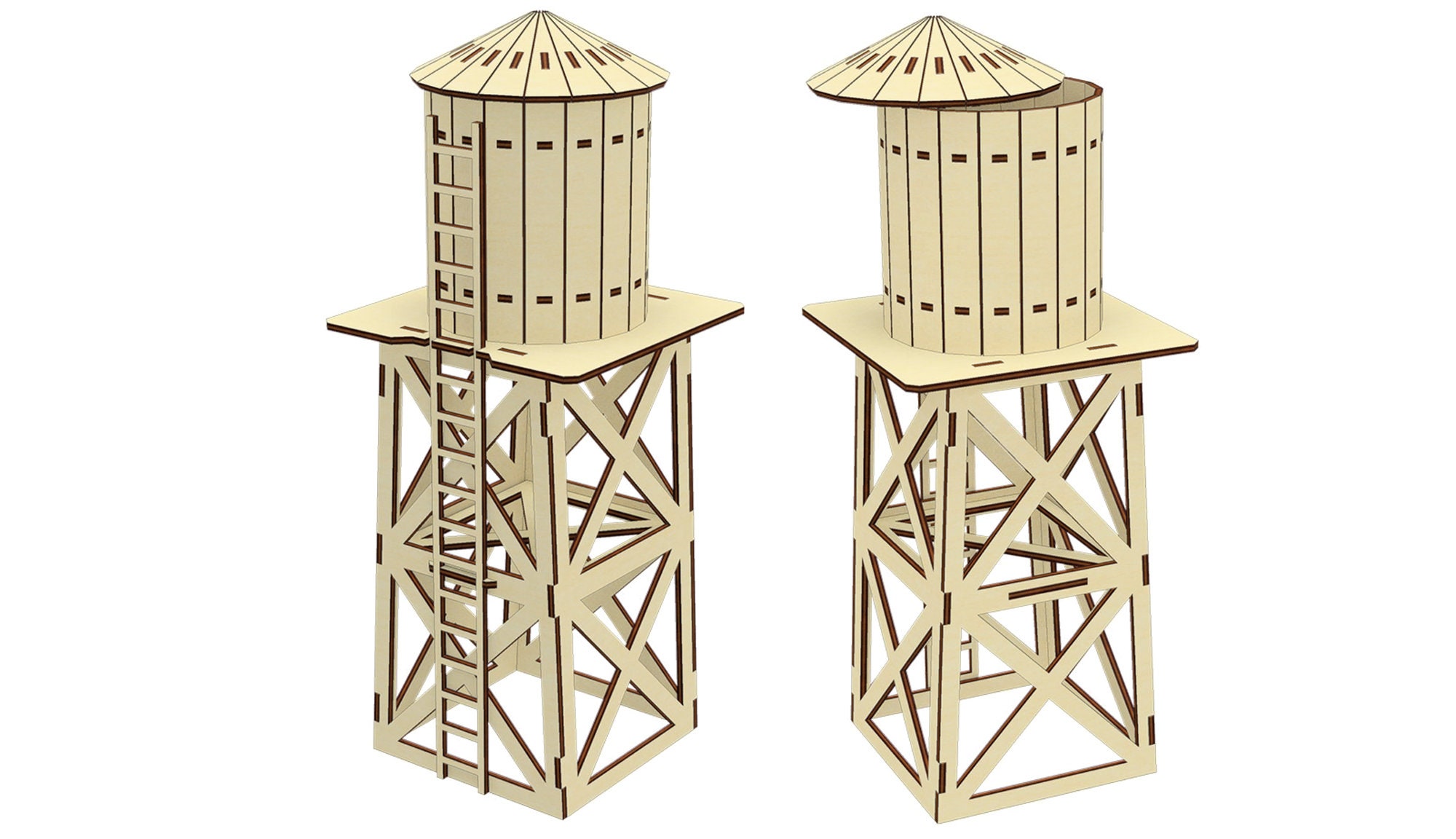

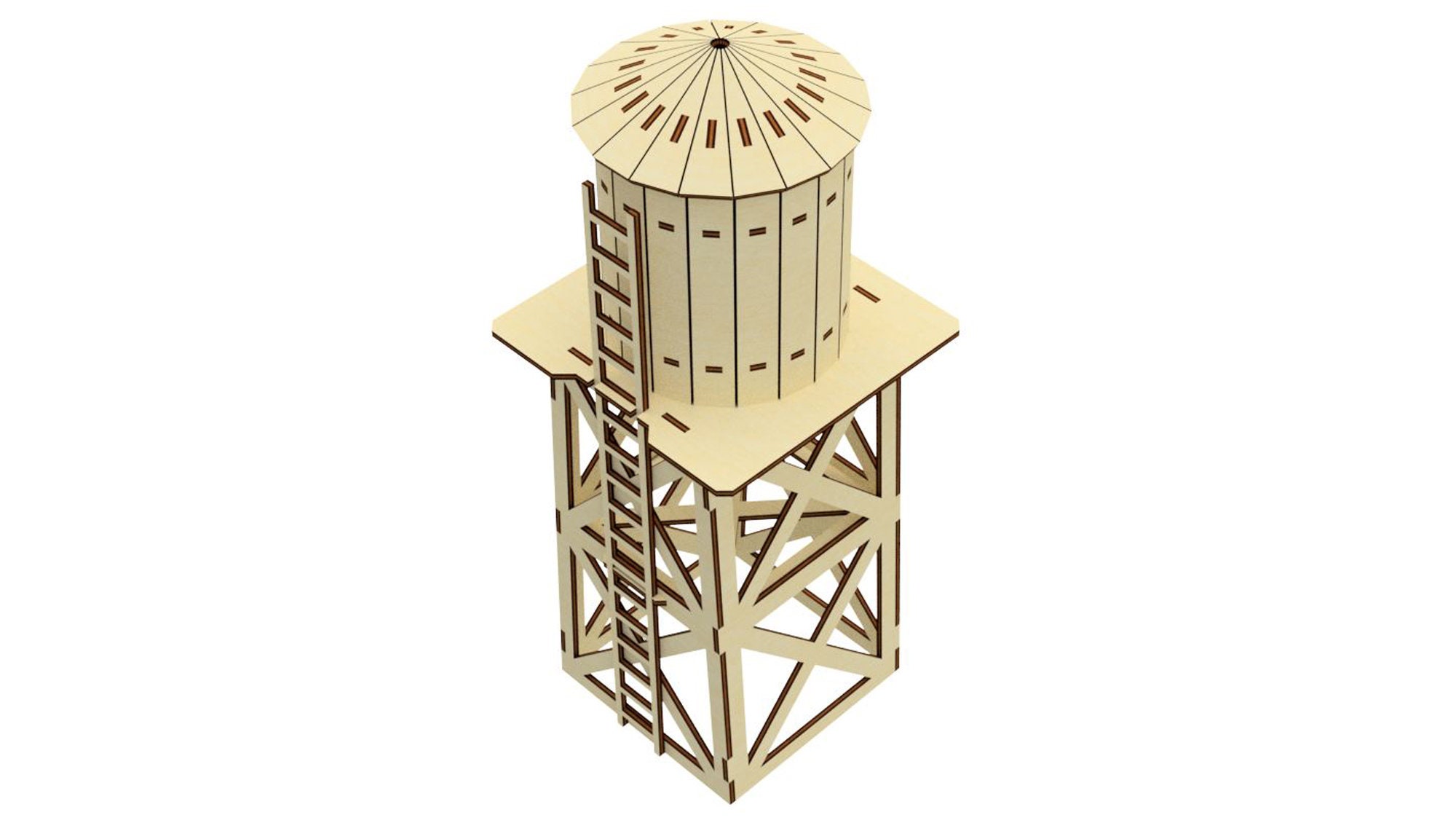

Model “Water tower”. Vector plan for Laser Cutting.

Material thickness: 3mm, 1/8”(3.175mm), 4mm, 6mm, 1/4”(6.35mm)

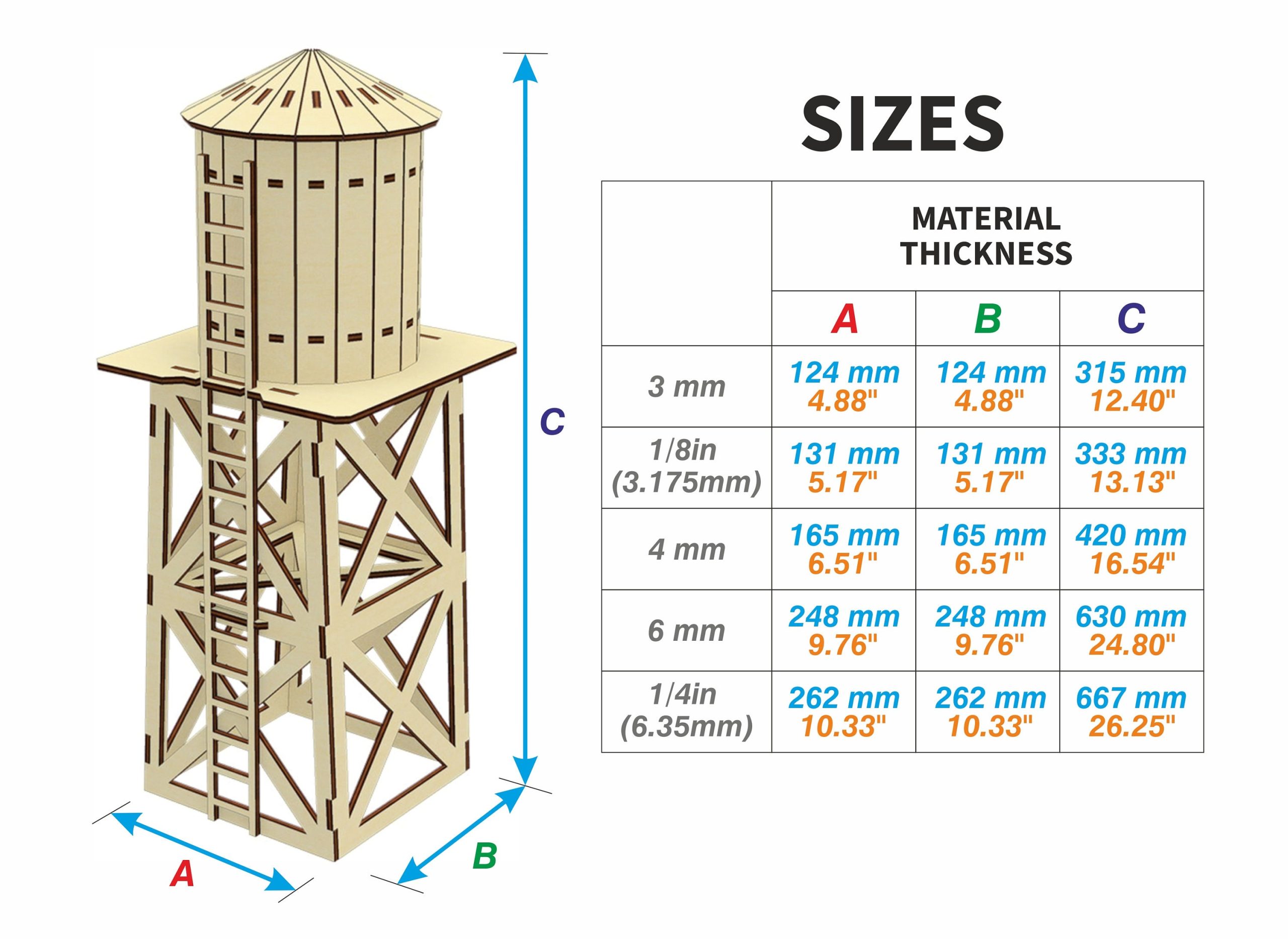

Sizes:
3 mm thickness: 124 x 124 x 315 mm (4.88 x 4.88 x 12.40”)
1/8”(3.175mm) thickness: 131 x 131 x 333 mm (5.17 x 5.17 x 13.13”)
4 mm thickness: 165 x 165 x 420 mm (6.51 x 6.51 x 16.54”)
6 mm thickness: 248 x 248 x 630 mm (9.76 x 9.76 x 24.80”)
1/4”(6.35mm) thickness: 262 x 262 x 667 mm (10.33 x 10.33 x 26.25”)

Work area:
3 mm thickness: 615 x 320 mm (24.21 x 12.60”)
1/8”(3.175mm) thickness: 651 x 339 mm (25.63 x 13.33”)
4 mm thickness: 820 x 427 mm (32.28 x 16.80”)
6 mm thickness: 1230 x 640 mm (48.43 x 25.20”)
1/4”(6.35mm) thickness: 1302 x 677 mm (51.25 x 26.67”)

Biggest part:
3 mm thickness: 100 x 191 mm (3.94 x 7.52”)
1/8”(3.175mm) thickness: 106 x 202 mm (4.17 x 7.96”)
4 mm thickness: 133 x 255 mm (5.25 x 10.03”)
6 mm thickness: 200 x 382 mm (7.87 x 15.04”)
1/4”(6.35mm) thickness: 212 x 404 mm (8.33 x 15.92”)

In the file:
pink color – cut
black color – cut

What you receive:
You will download 1 ZIP files for 3mm, 1/8”(3.175mm), 4mm, 6mm, 1/4”(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)

These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine

This is an Instant Digital Download

The item is non-refundable because it’s not physical.
YOU CAN use the files for personal purposes and for your small business. For commercial use, indicate my authorship “Designed by Ivan Bilous”
YOU CANNOT share, redistribute or resell the files.

Copyright is not transferable with the sale.

Wholesale cheaper
Use promocodes for discount

3 files – WHOLESALE3 – 15%
5 files – WHOLESALE5 – 20%
10 files – WHOLESALE10 – 30%
