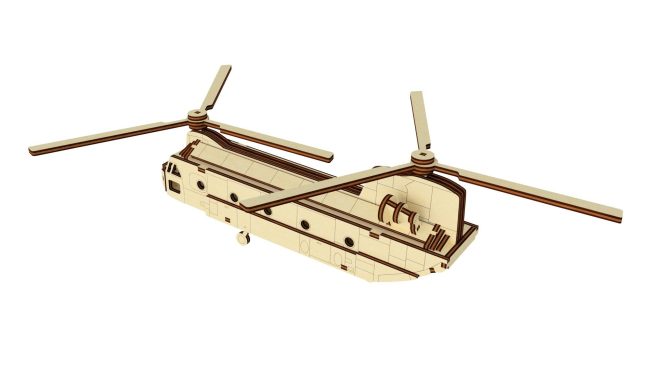

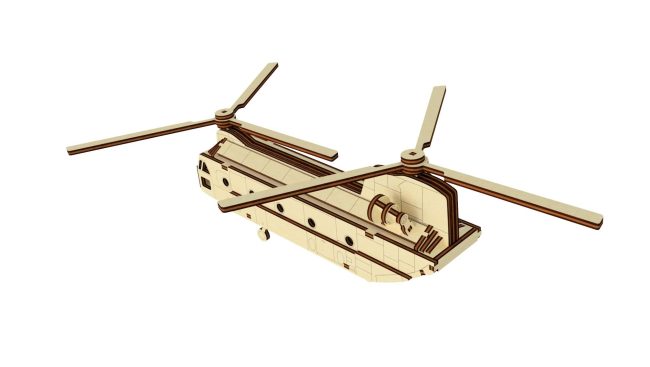

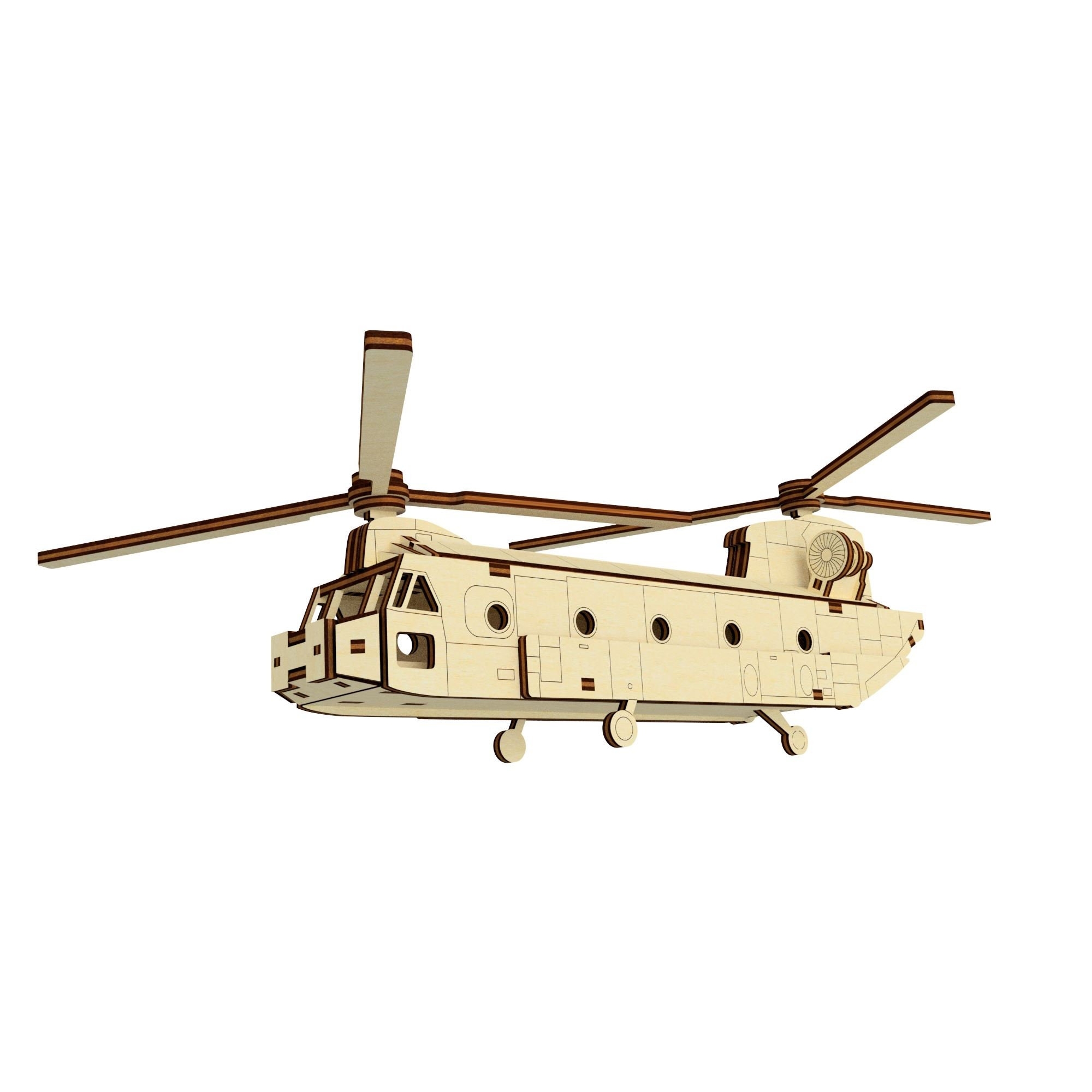

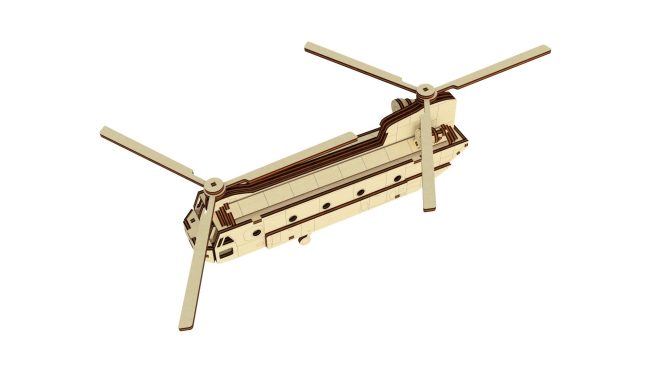

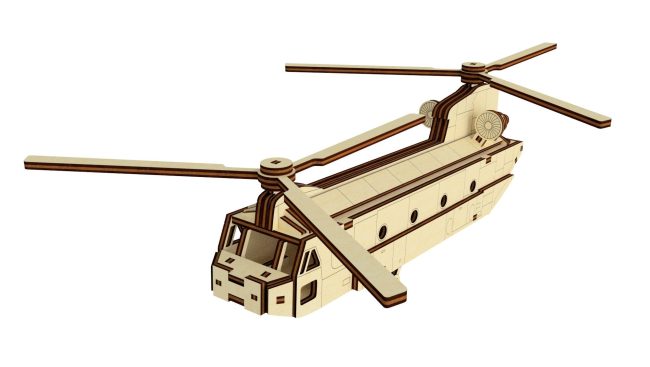

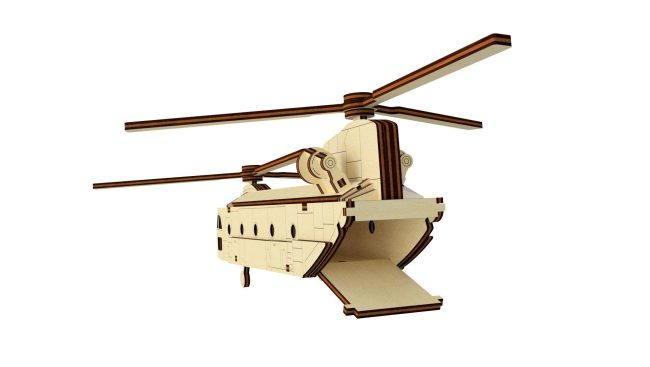

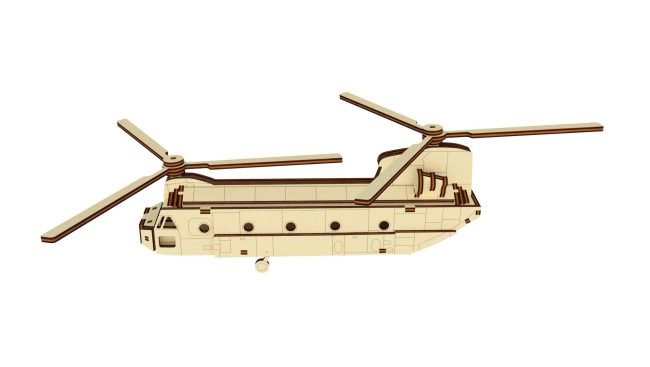

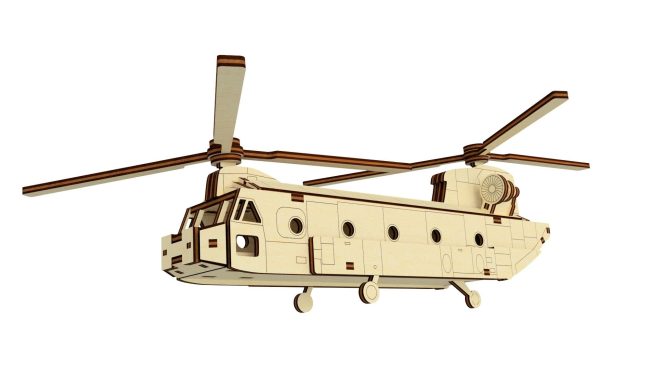

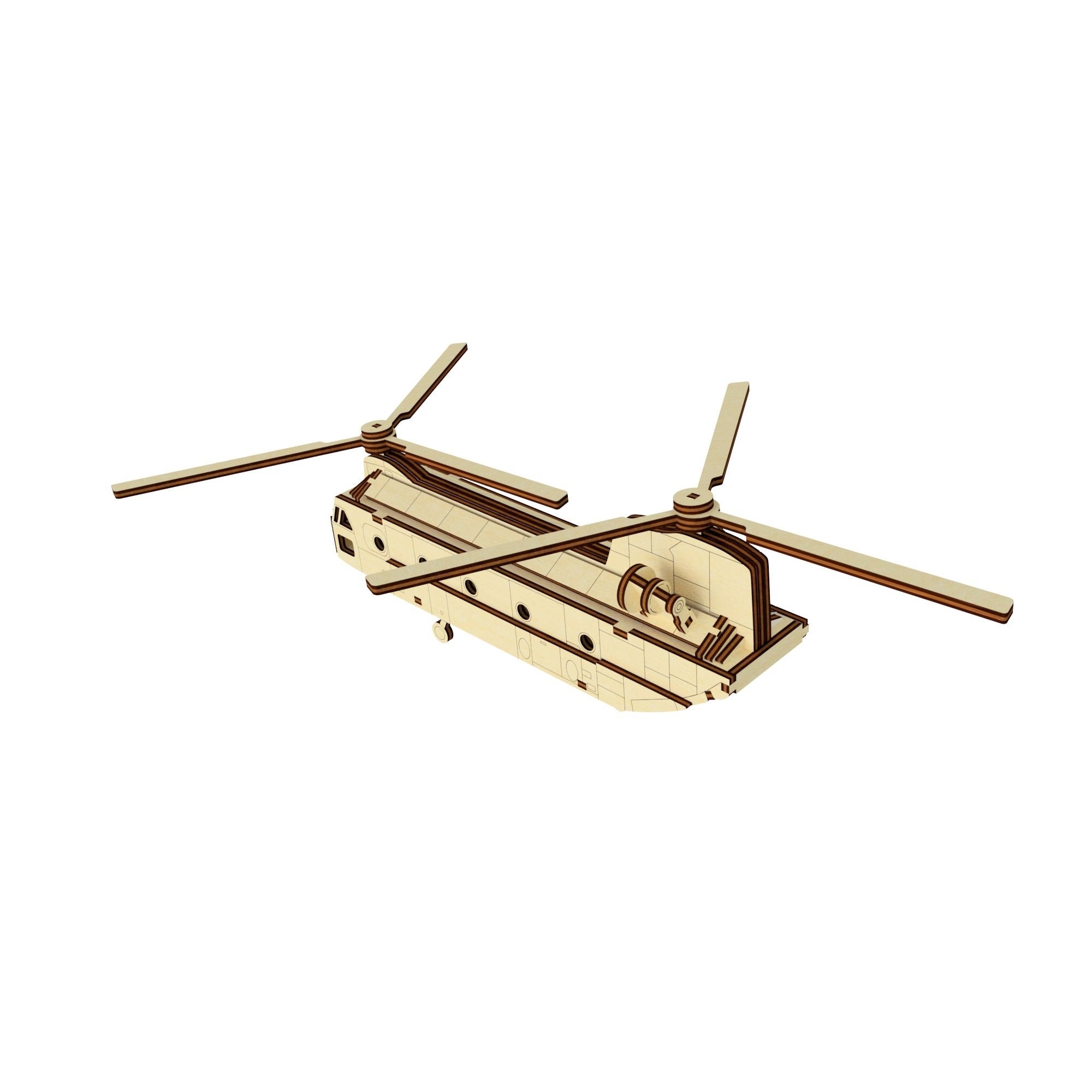

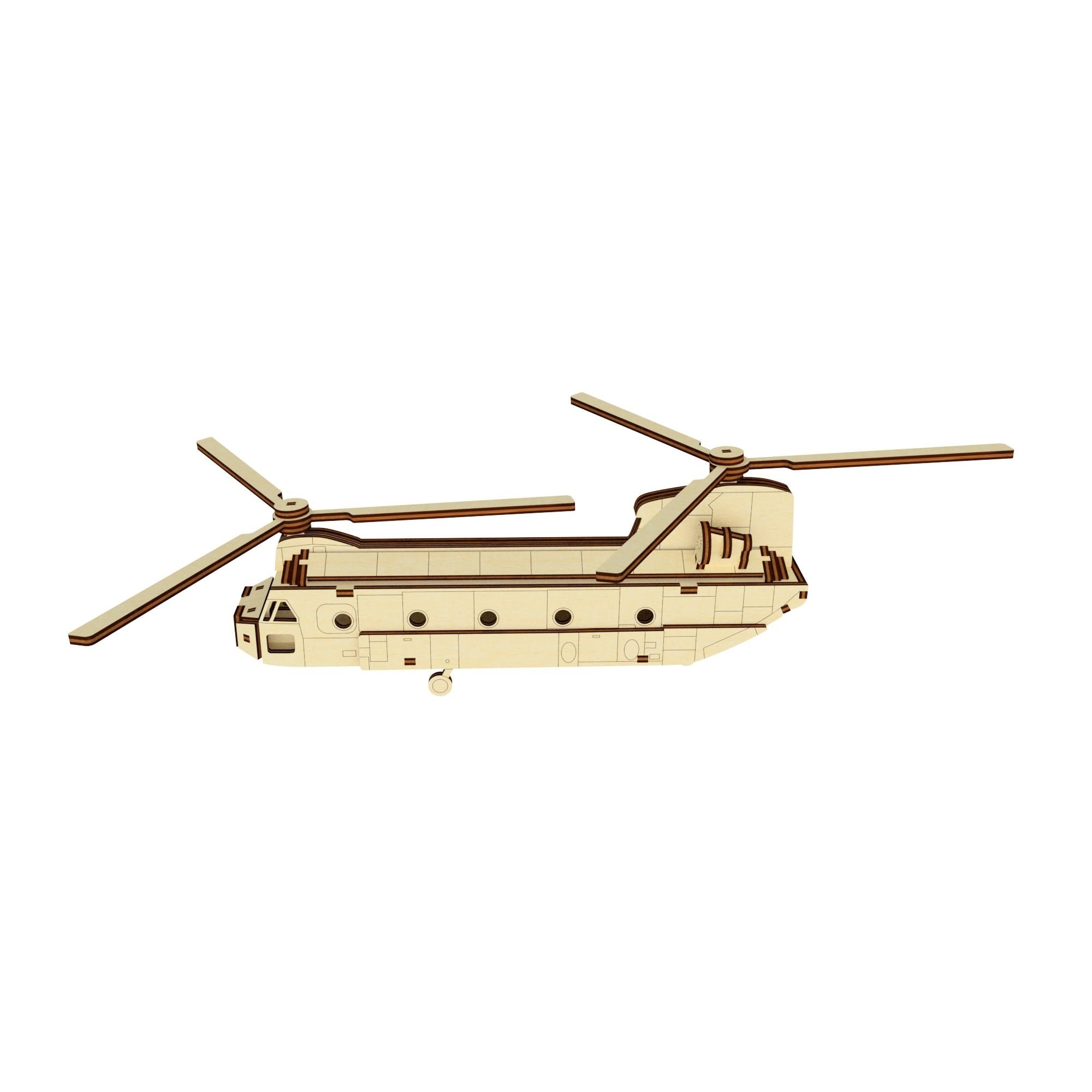

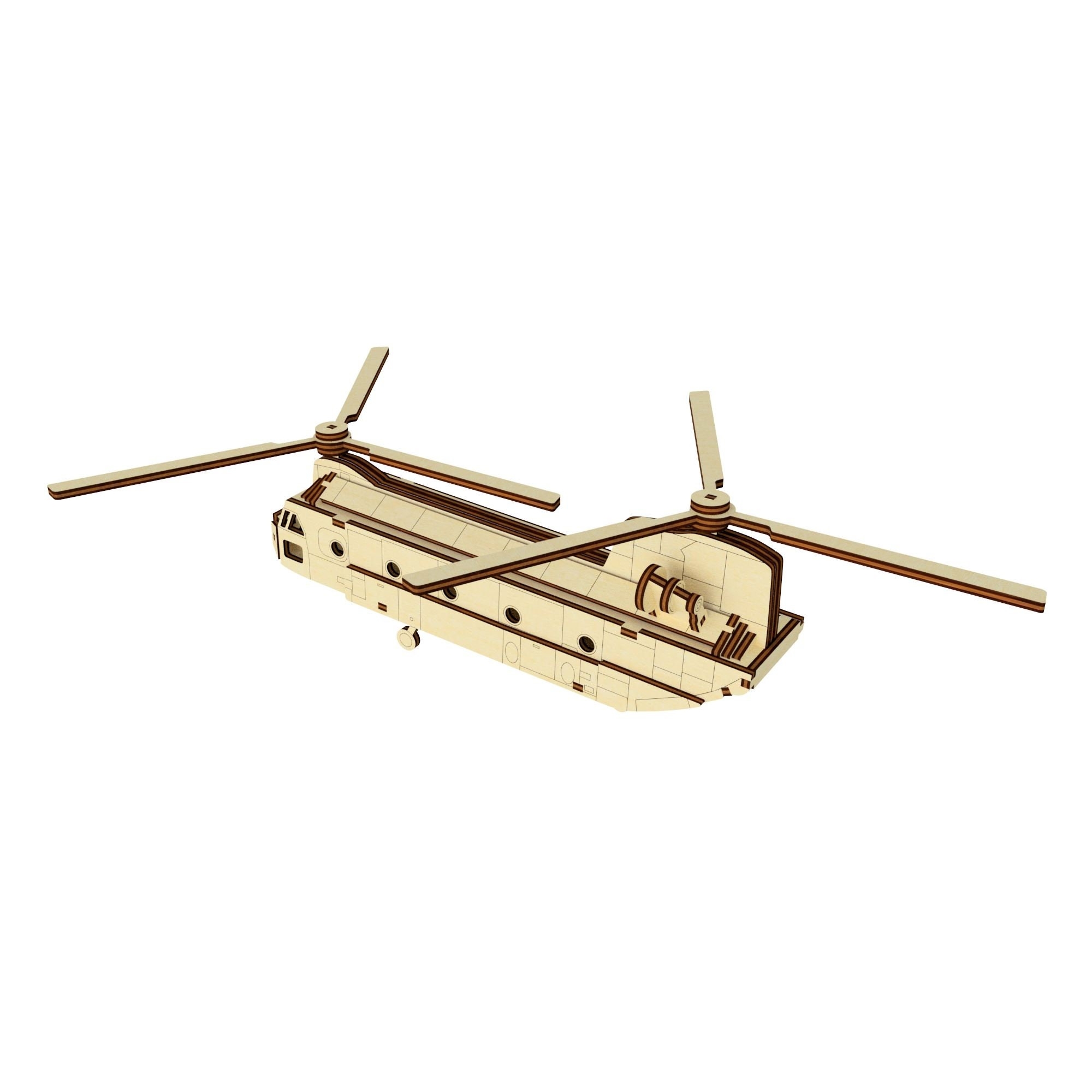

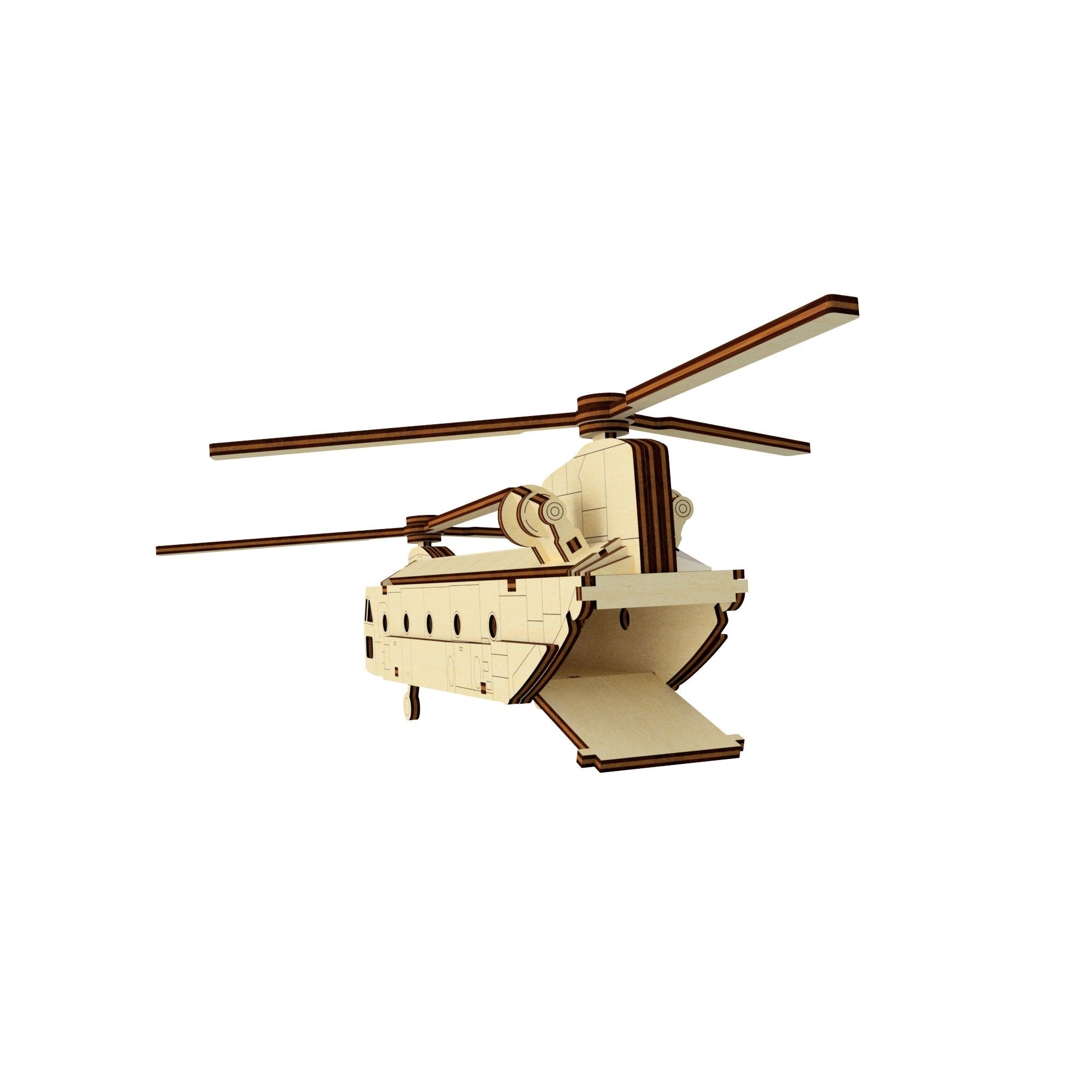

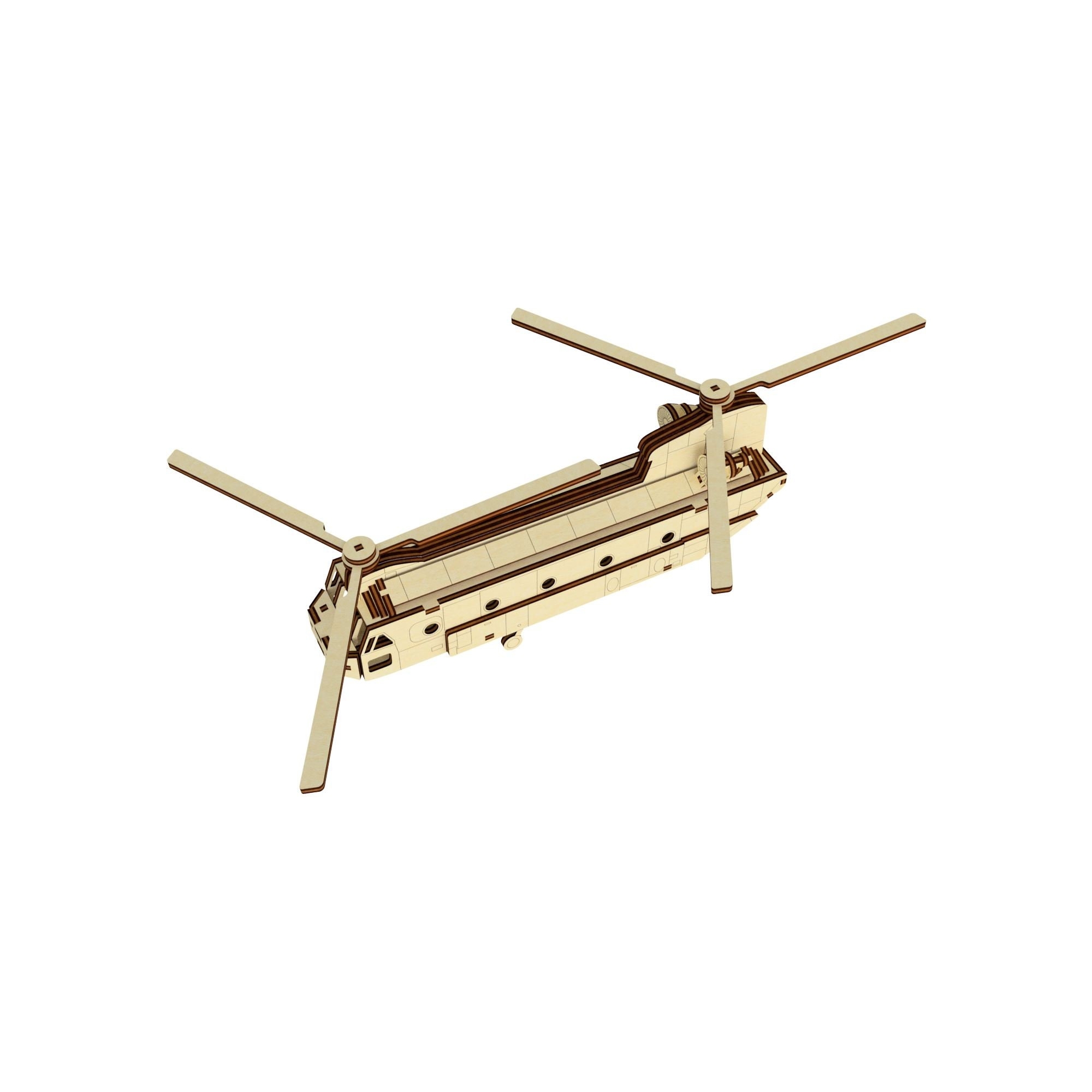

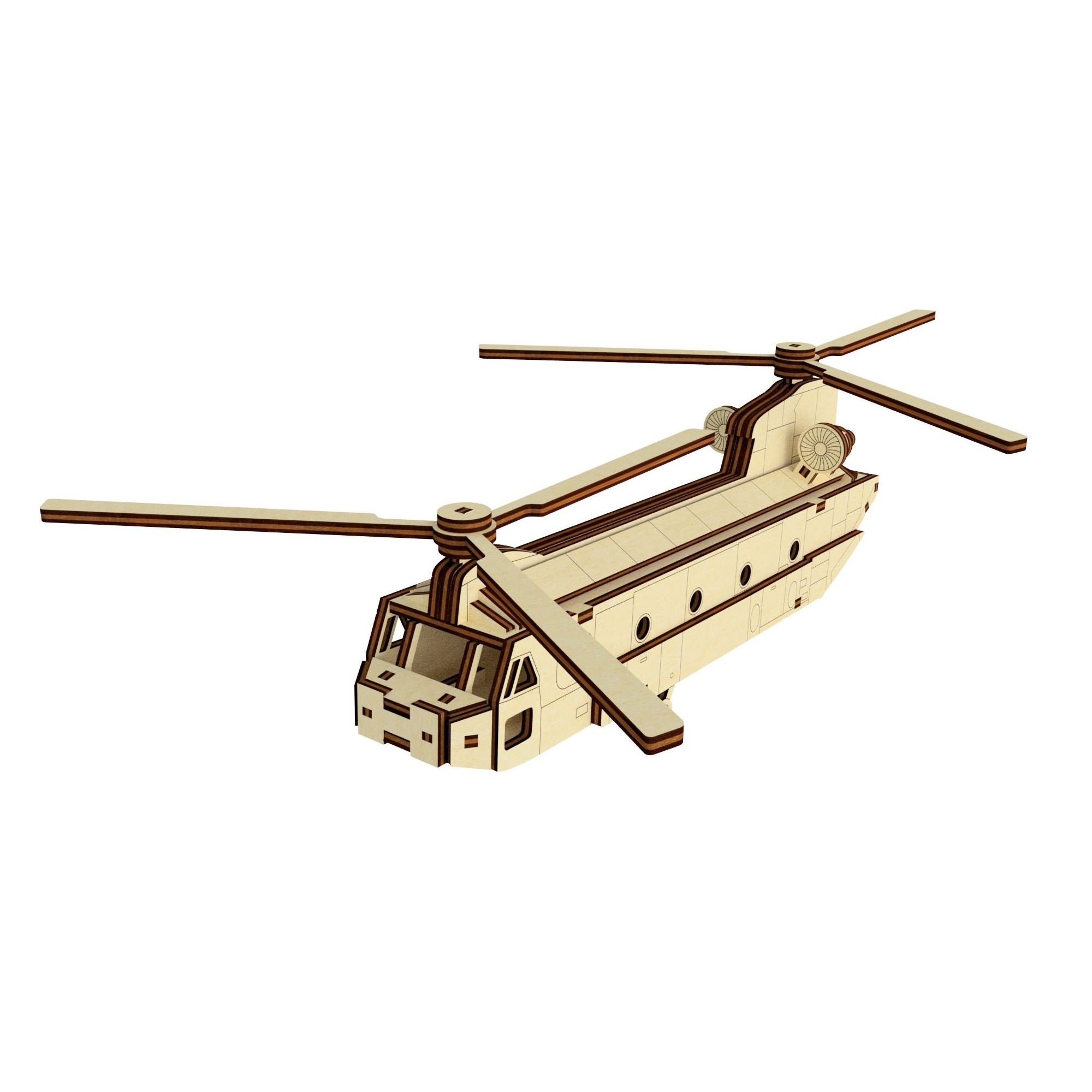

Model “Helicopter”. Vector plan for Laser Cutting.

Material thickness: 3mm, 4mm, 6mm plywood.

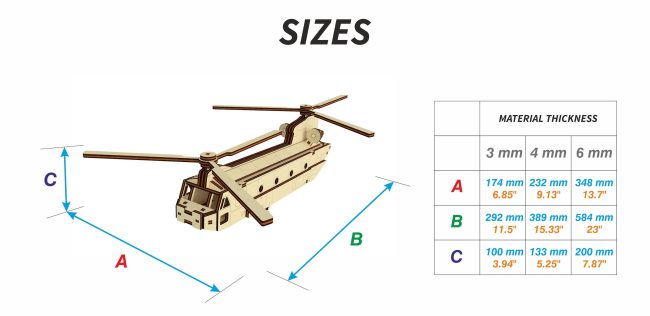

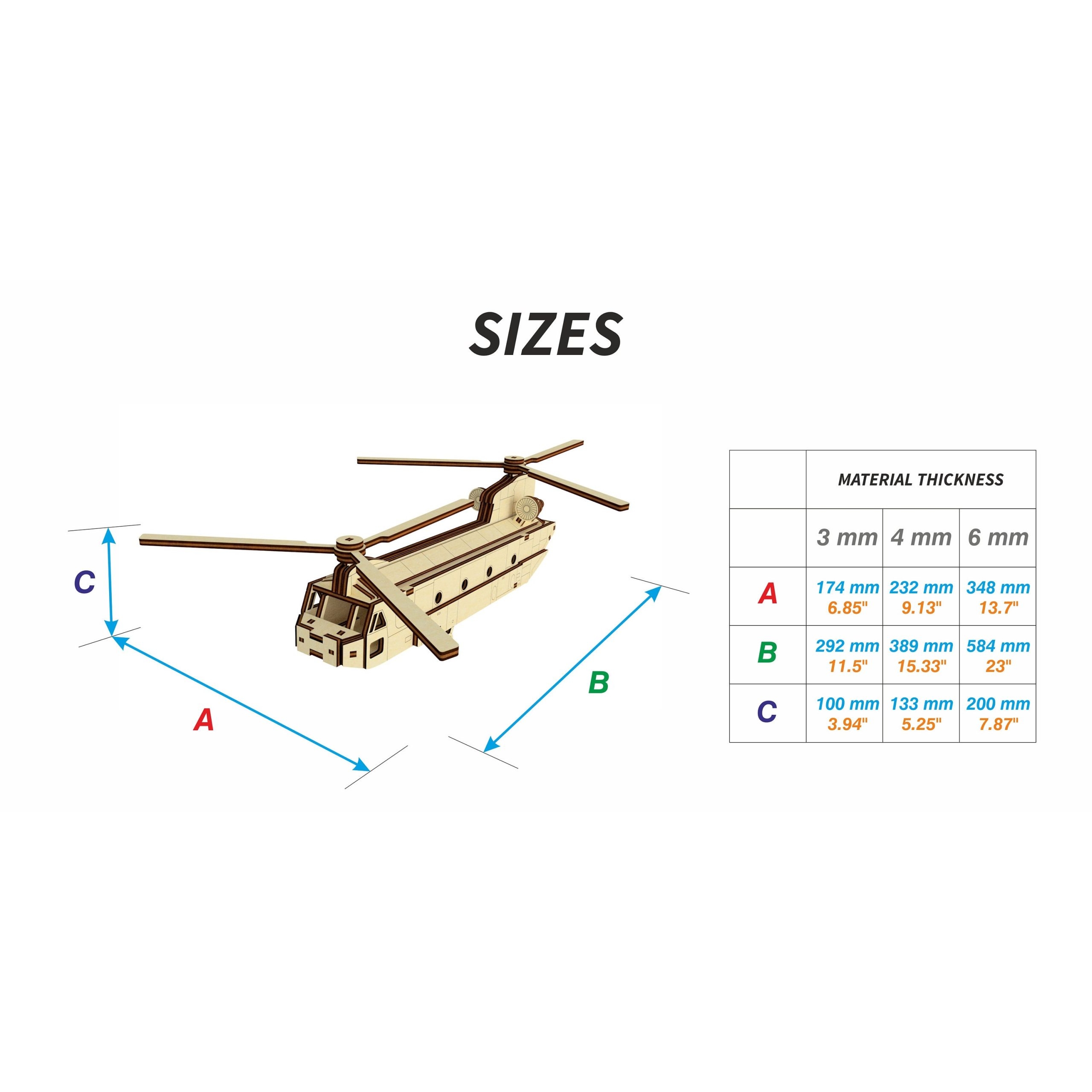

Sizes:
3 mm thickness: 174 x 292 x 100 mm (6.85 x 11.5 x 3.94”)
1/8”(3.175mm) thickness: 184 x 309 x 106 mm (7,25 x 12,17 x 4,17”)
4 mm thickness: 232 x 389 x 133 mm (9.13 x 15.33 x 5.25”)
6 mm thickness: 348 x 584 x 200 mm (13.7 x 21 x 7.87”)
1/4”(6.35mm) thickness: 368 x 618 x 212 mm (14,50 x 24,33 x 8,33”)

Important! Glowforge layout includes only for 1/8in material thickness

In the file:
green color – draw (cut with little power and big speed)
pink color – cut
black color – cut

What you get:
You will download 1 ZIP files for 3mm, 4mm and 6 mm containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-file with assembly instructions

If you have any quastions feel free to contact me:)

These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine

This is an Instant Digital Download

The item is non-refundable because it’s not physical.
YOU CAN use the files for personal purposes and for your small business. For commercial use, indicate my authorship “Designed by Ivan Bilous”
YOU CANNOT share, redistribute or resell the files.

Copyright is not transferable with the sale.
