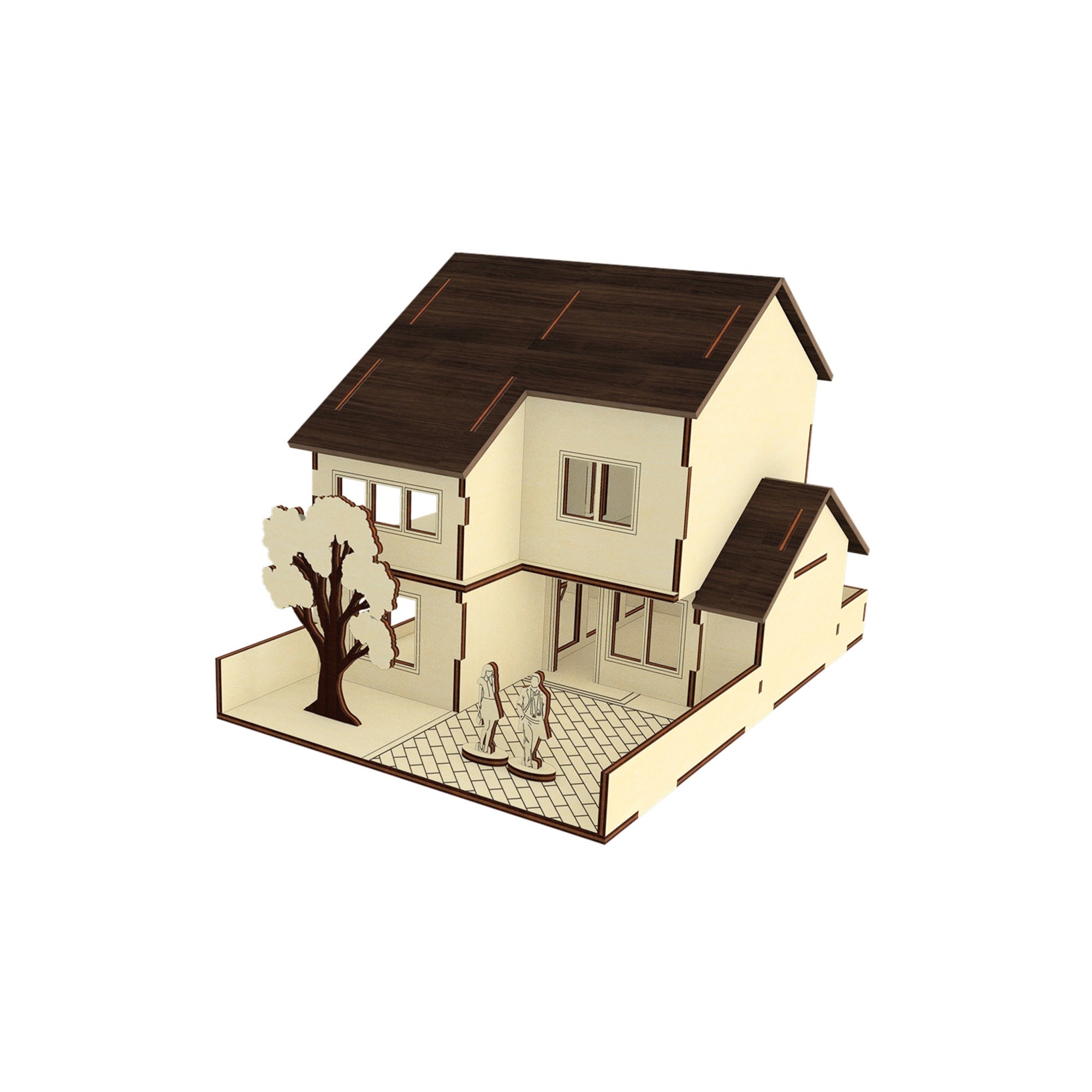

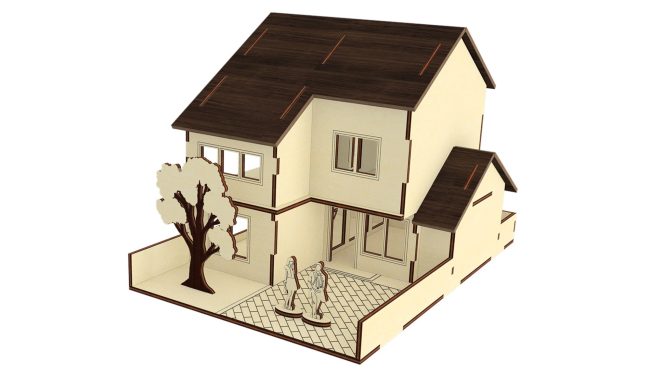

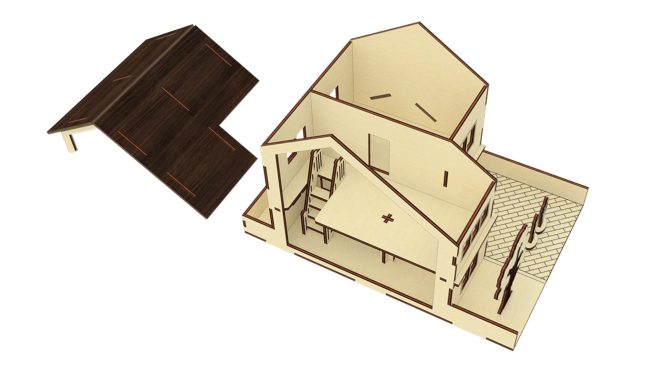

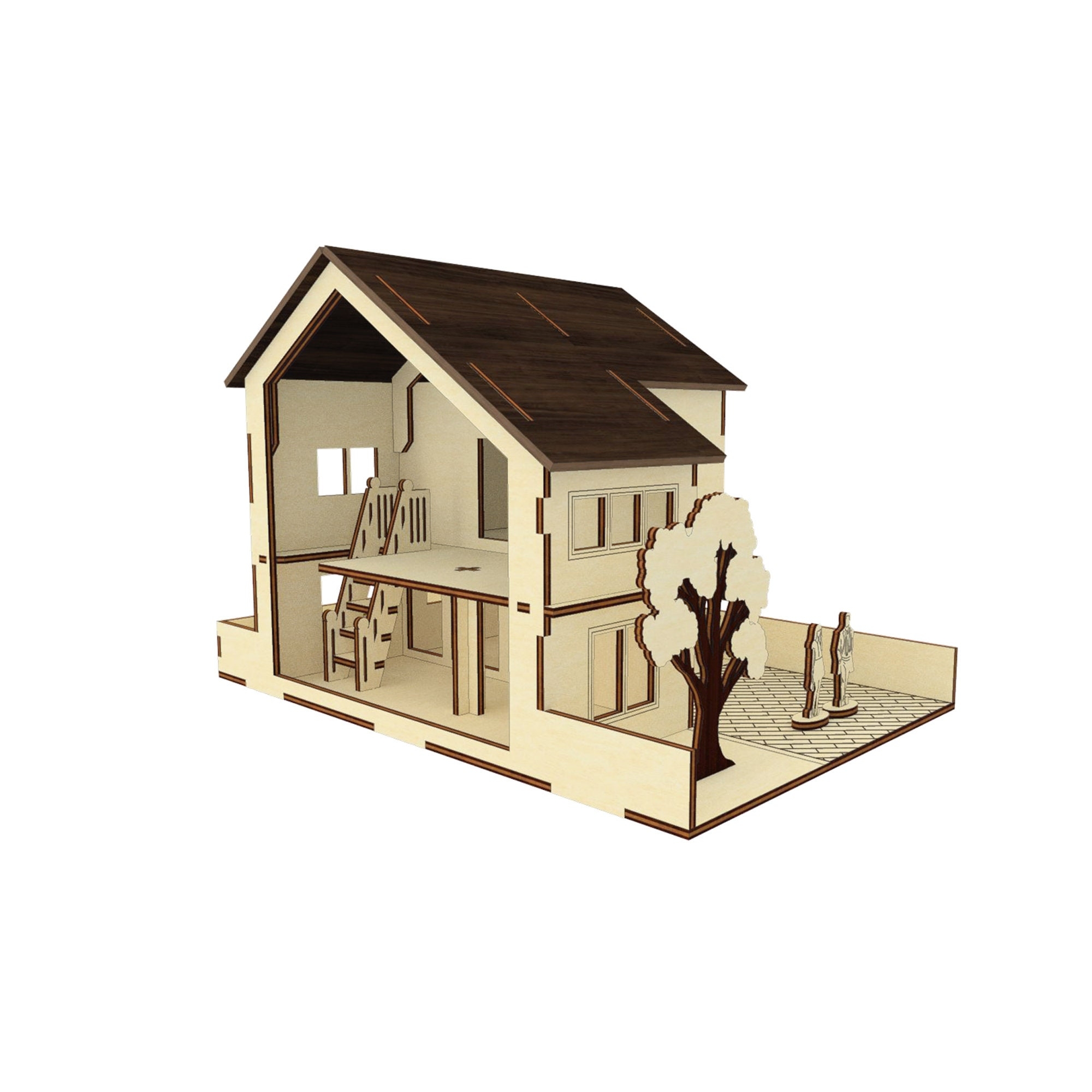

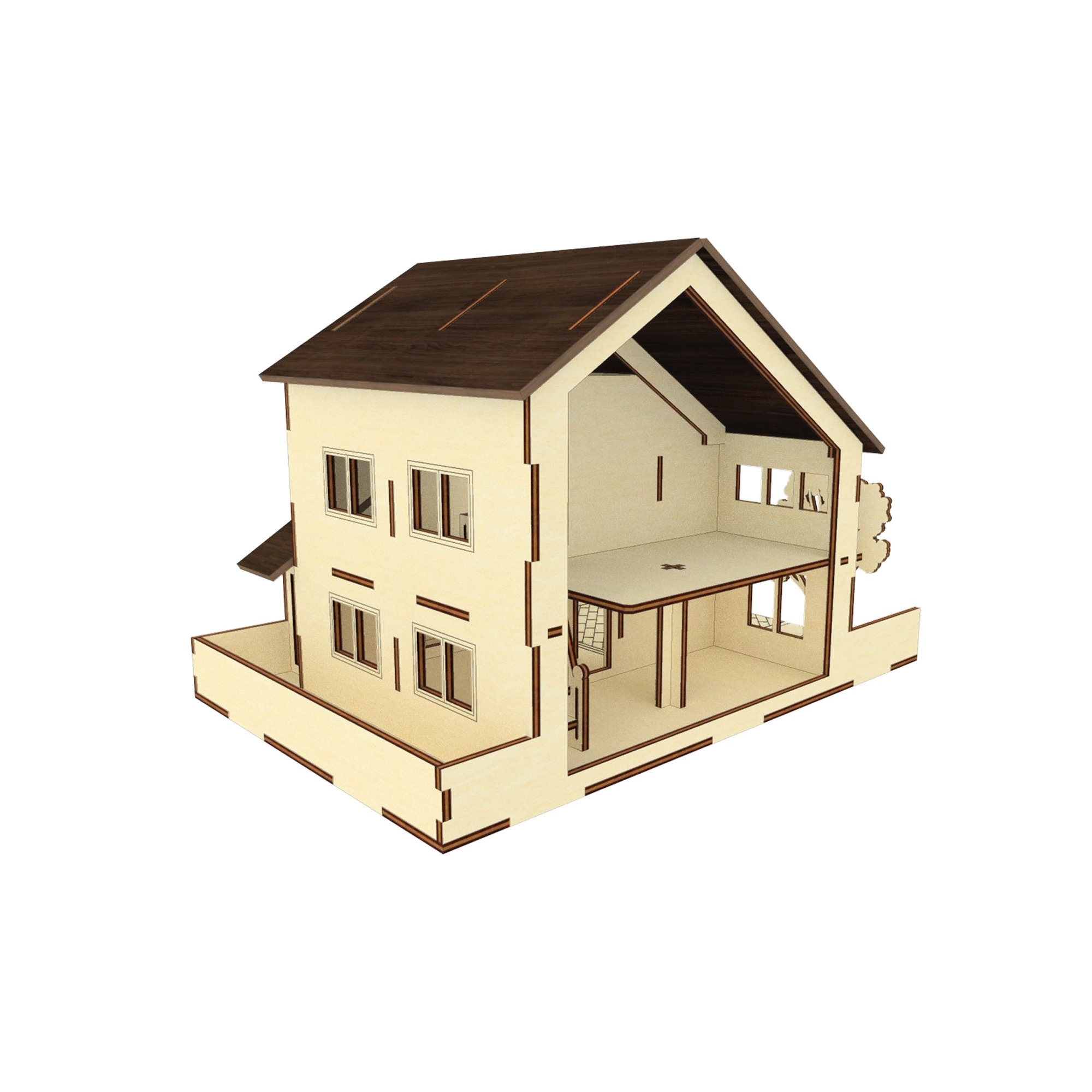

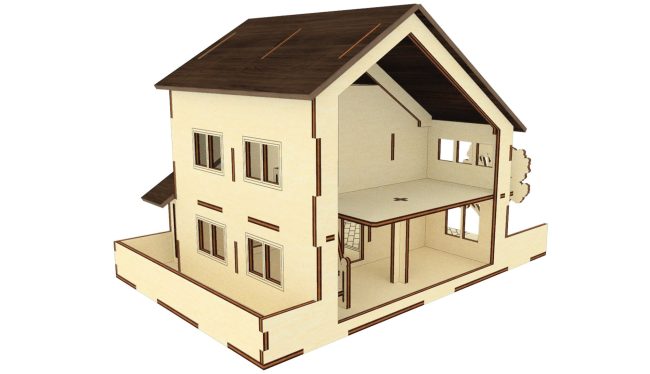

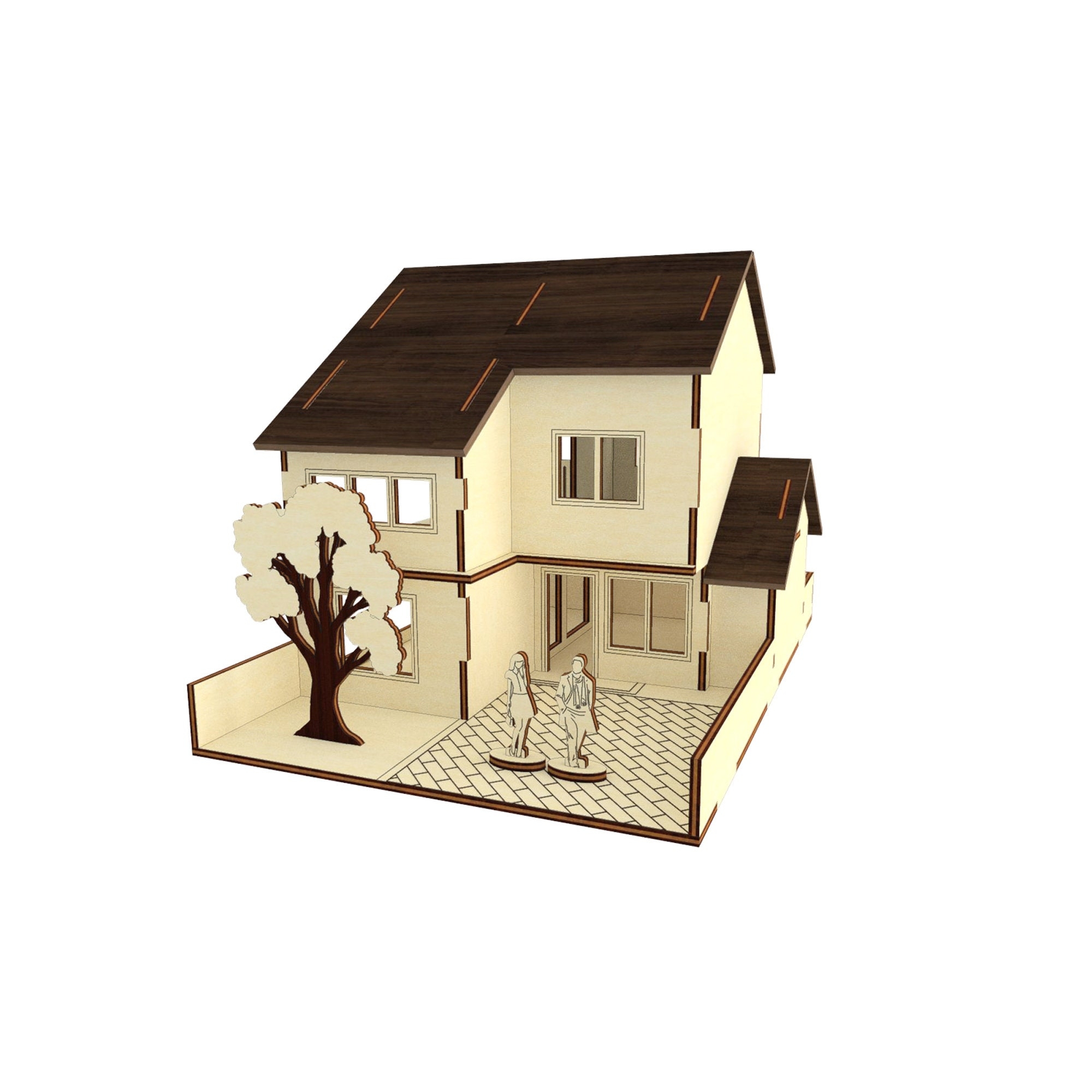

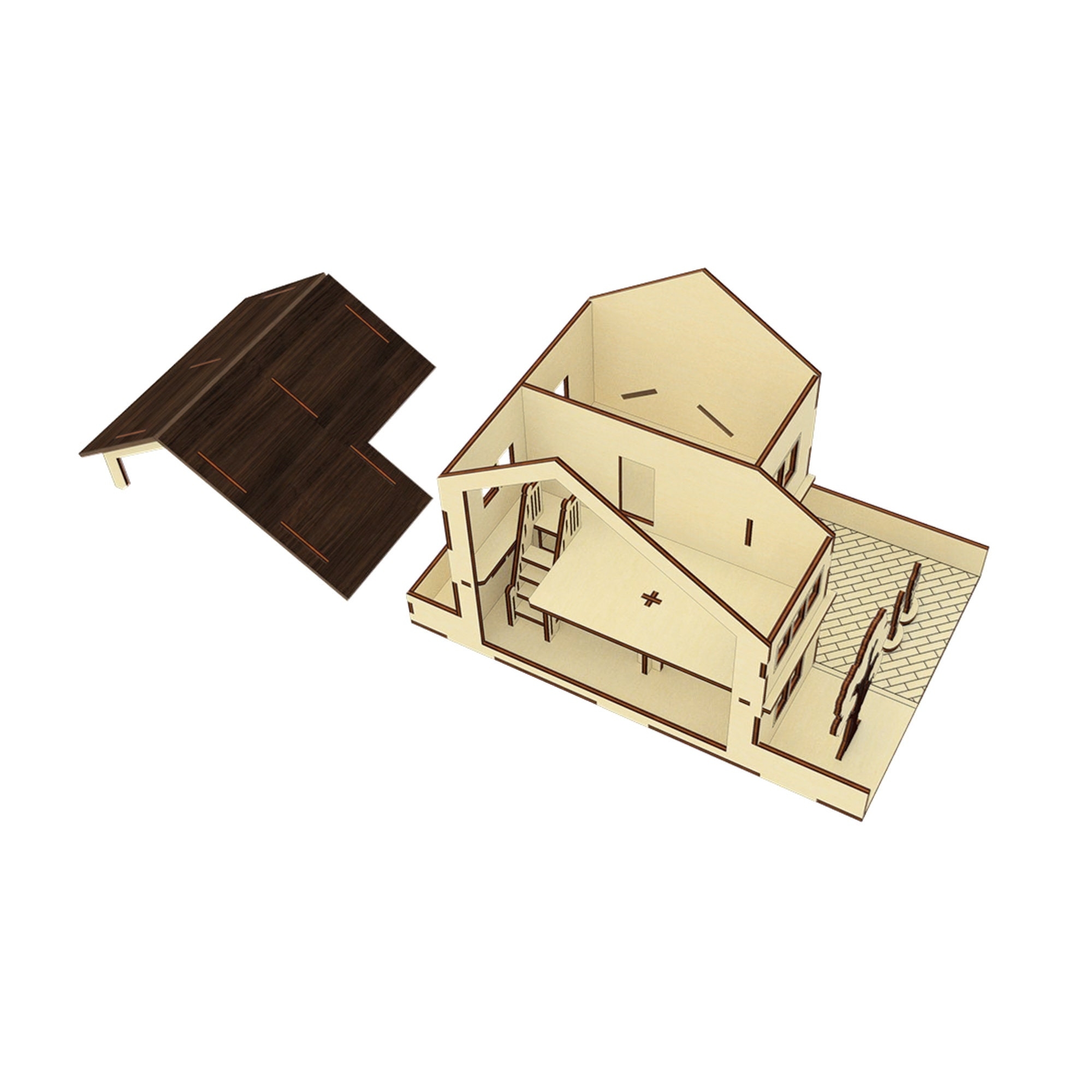

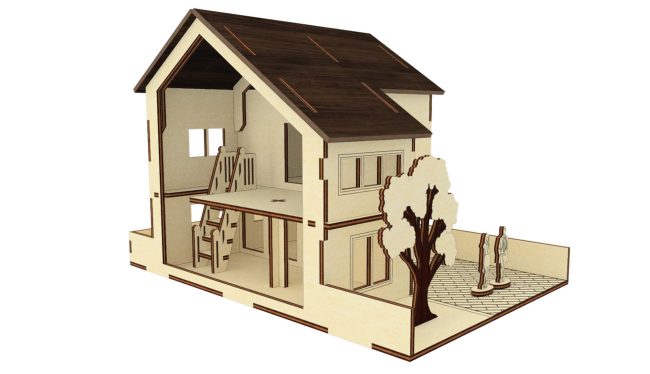

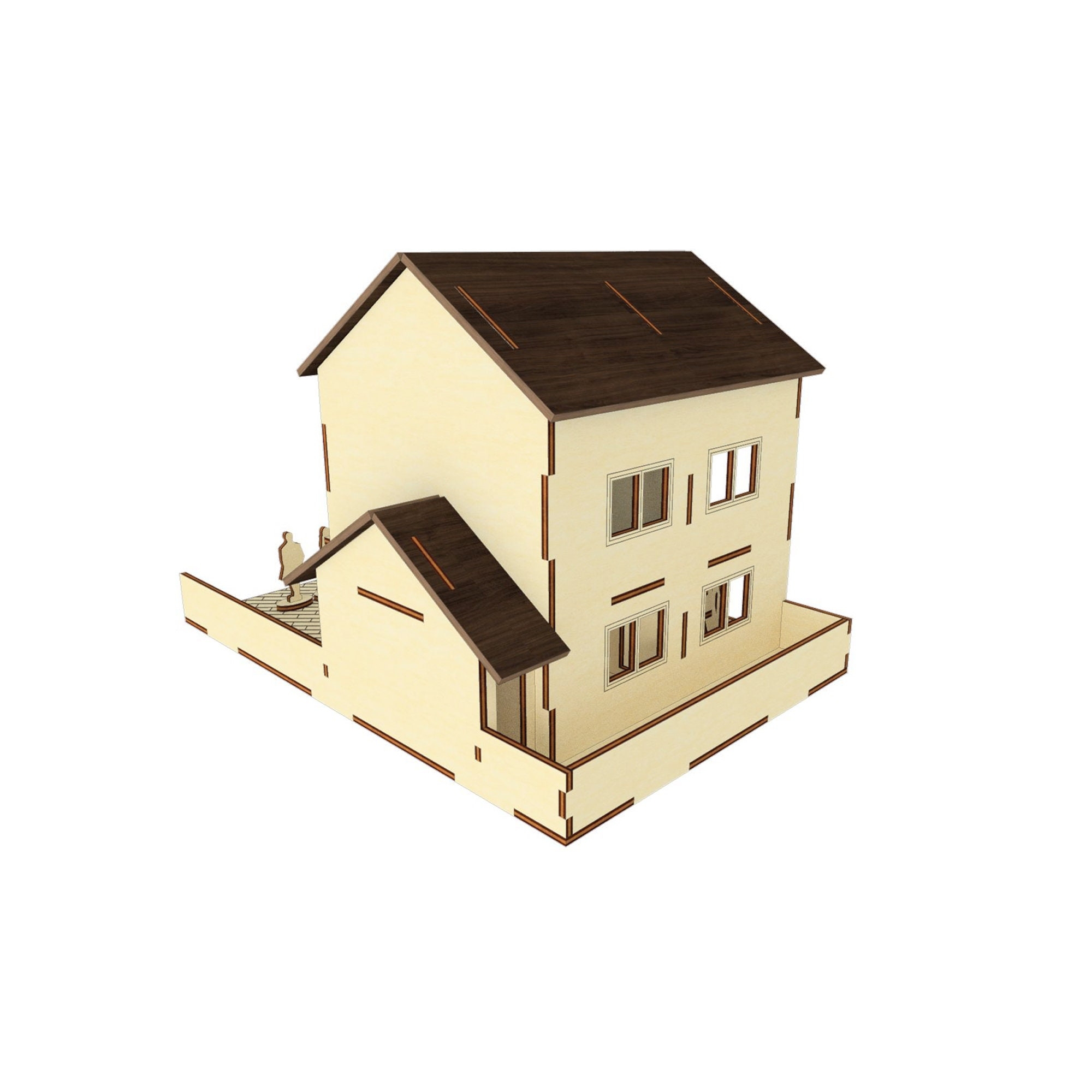

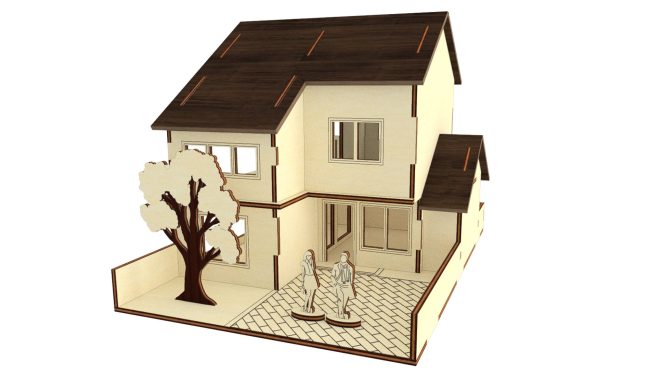

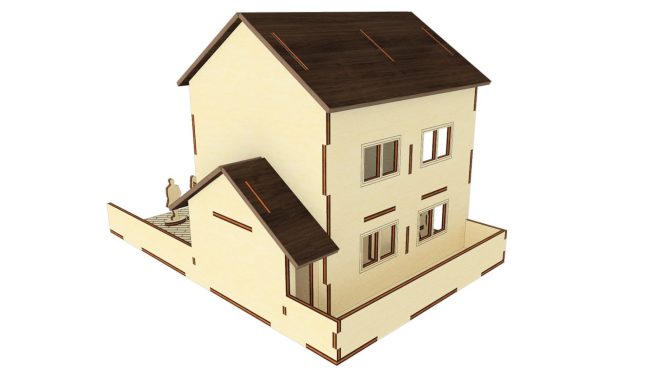

Model “Dollhouse”. Vector plan for Laser Cutting.

Material thickness: 3mm, 1/8”(3.175mm), 4mm, 6mm, 1/4”(6.35mm)

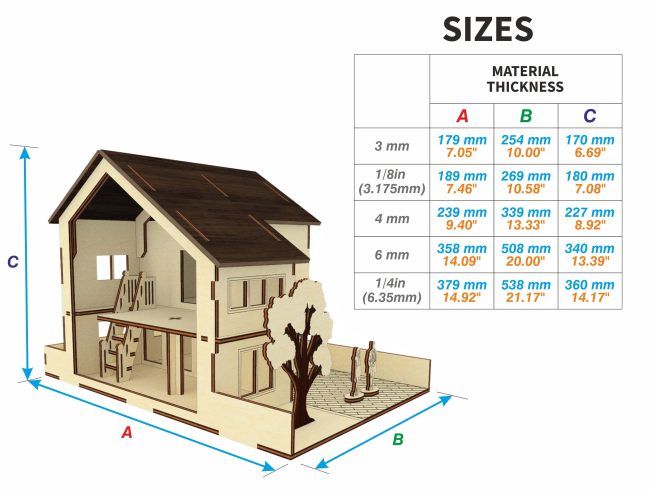

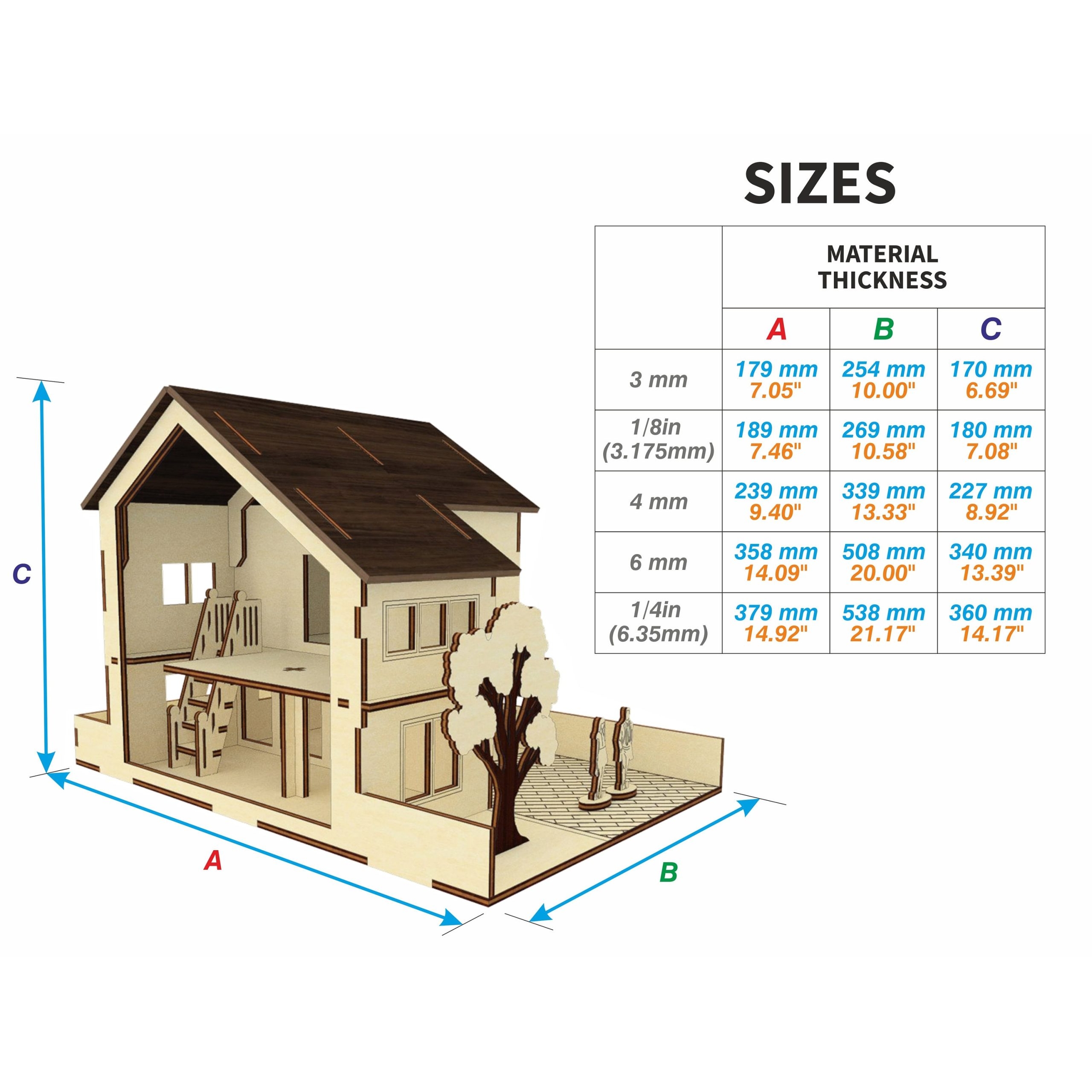

Sizes:
3 mm thickness: 179 x 254 x 170 mm (7,05 x 10,00 x 6,69”)
1/8”(3.175mm) thickness: 189 x 269 x 180 mm (7,46 x 10,58 x 7,08”)
4 mm thickness: 239 x 339 x 227 mm (9,40 x 13,33 x 8,92”)
6 mm thickness: 358 x 508 x 340 mm (14,09 x 20,00 x 13,39”)
1/4”(6.35mm) thickness: 379 x 538 x 360 mm (14,92 x 21,17 x 14,17”)

Work area:
3 mm thickness: 983 x 303 mm (38.70 x 11.93”)
1/8”(3.175mm) thickness: 1040 x 321 mm (40.96 x 12.63”)
4 mm thickness: 1311 x 404 mm (51.60 x 15.91”)
6 mm thickness: 1966 x 606 mm (77.40 x 23.86”)
1/4”(6.35mm) thickness: 2081 x 641 mm (81.92 x 25.25”)

Biggest part:
3 mm thickness: 170 x 254 mm (6,69 x 10,00”)
1/8”(3.175mm) thickness: 180 x 269 mm (7,08 x 10,58”)
4 mm thickness: 227 x 339 mm (8,92 x 13,33”)
6 mm thickness: 340 x 508 mm (13,39 x 20,00”)
1/4”(6.35mm) thickness: 360 x 538 mm (14,17 x 21,17”)

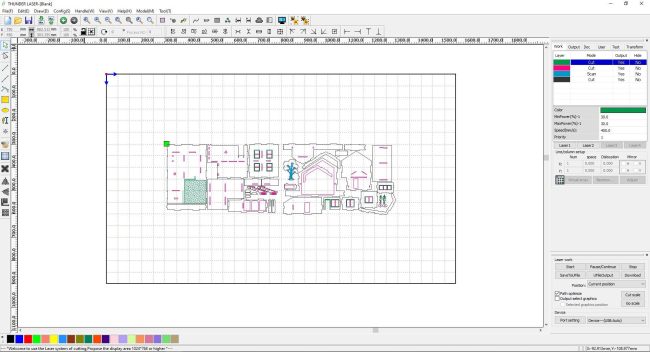

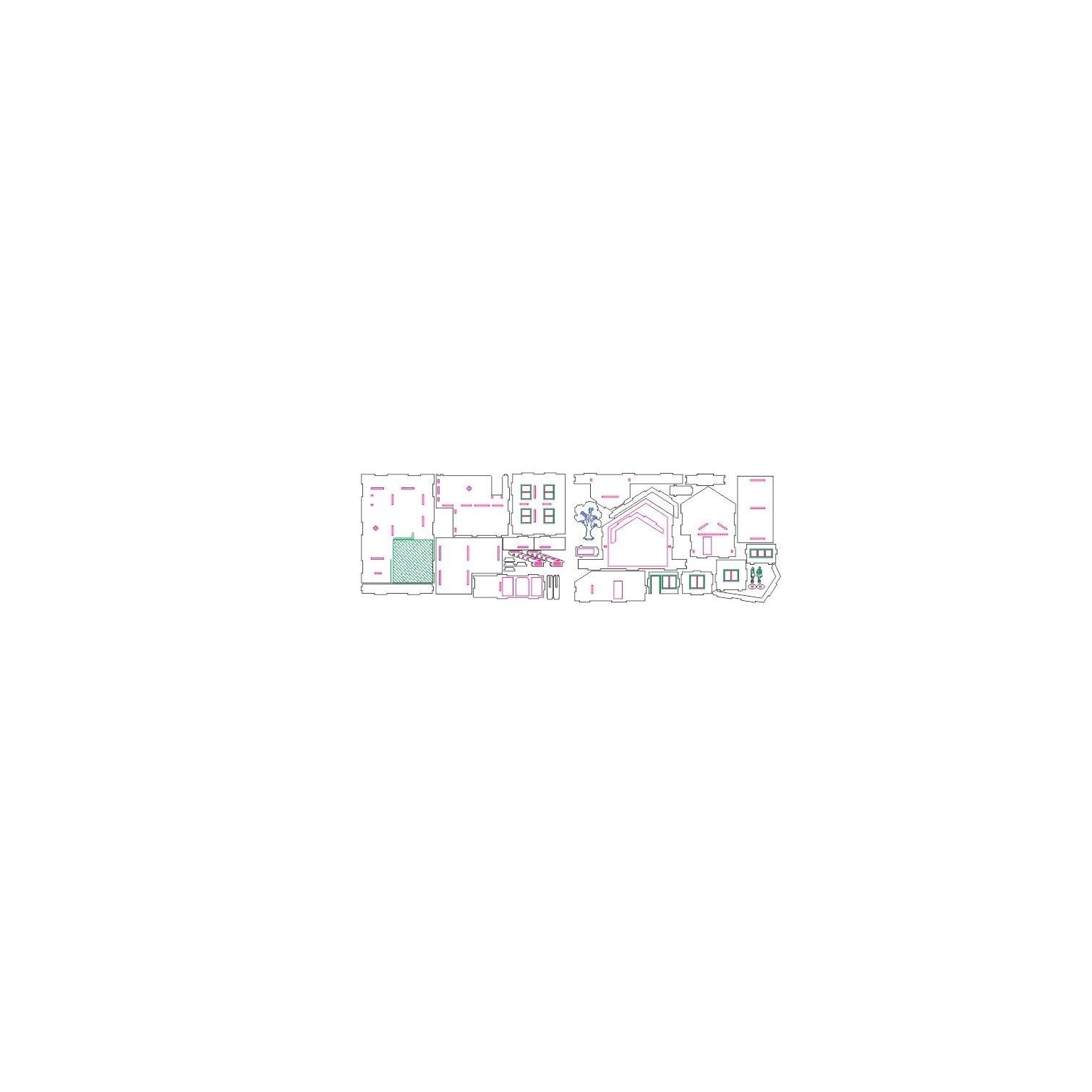

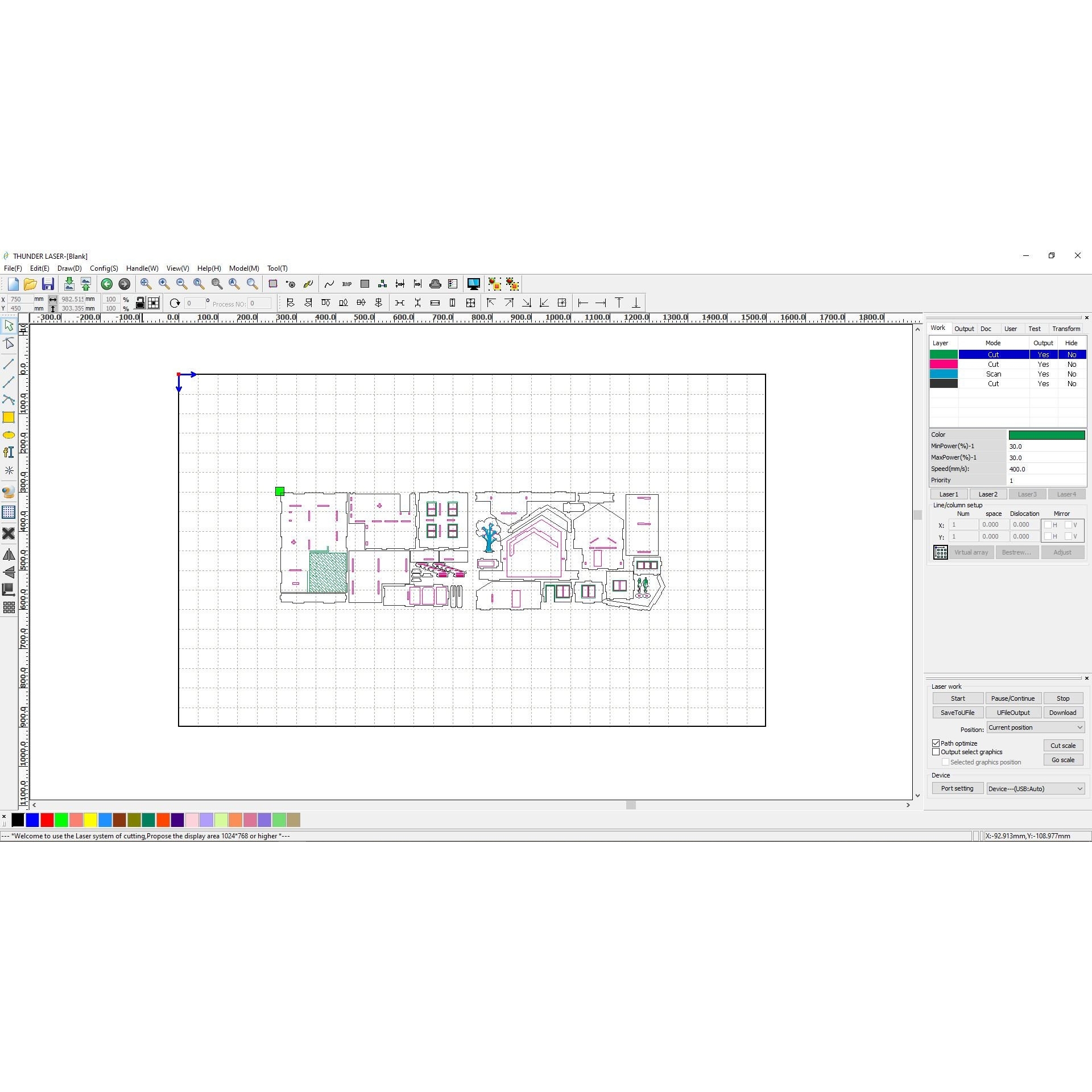

In the file:
blue color – engrave
green color – draw (cut with little power and big speed)
pink color – cut
black color – cut

What you receive:
You will download 1 ZIP files for 3mm, 1/8”(3.175mm), 4mm, 6mm, 1/4”(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)

These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine

This is an Instant Digital Download

The item is non-refundable because it’s not physical.
YOU CAN use the files for personal purposes and for your small business. For commercial use, indicate my authorship “Designed by Ivan Bilous”
YOU CANNOT share, redistribute or resell the files.

Copyright is not transferable with the sale.
