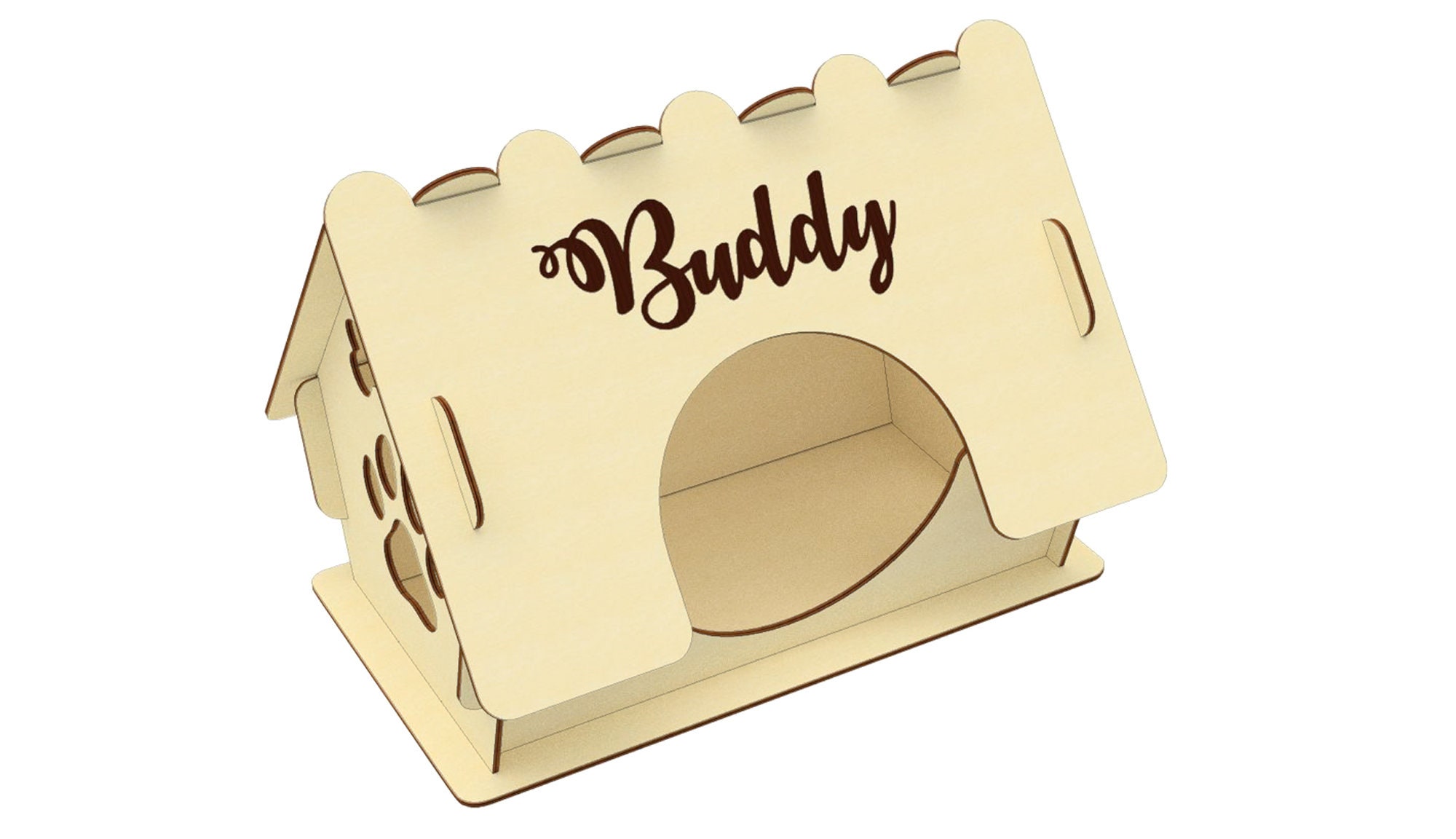

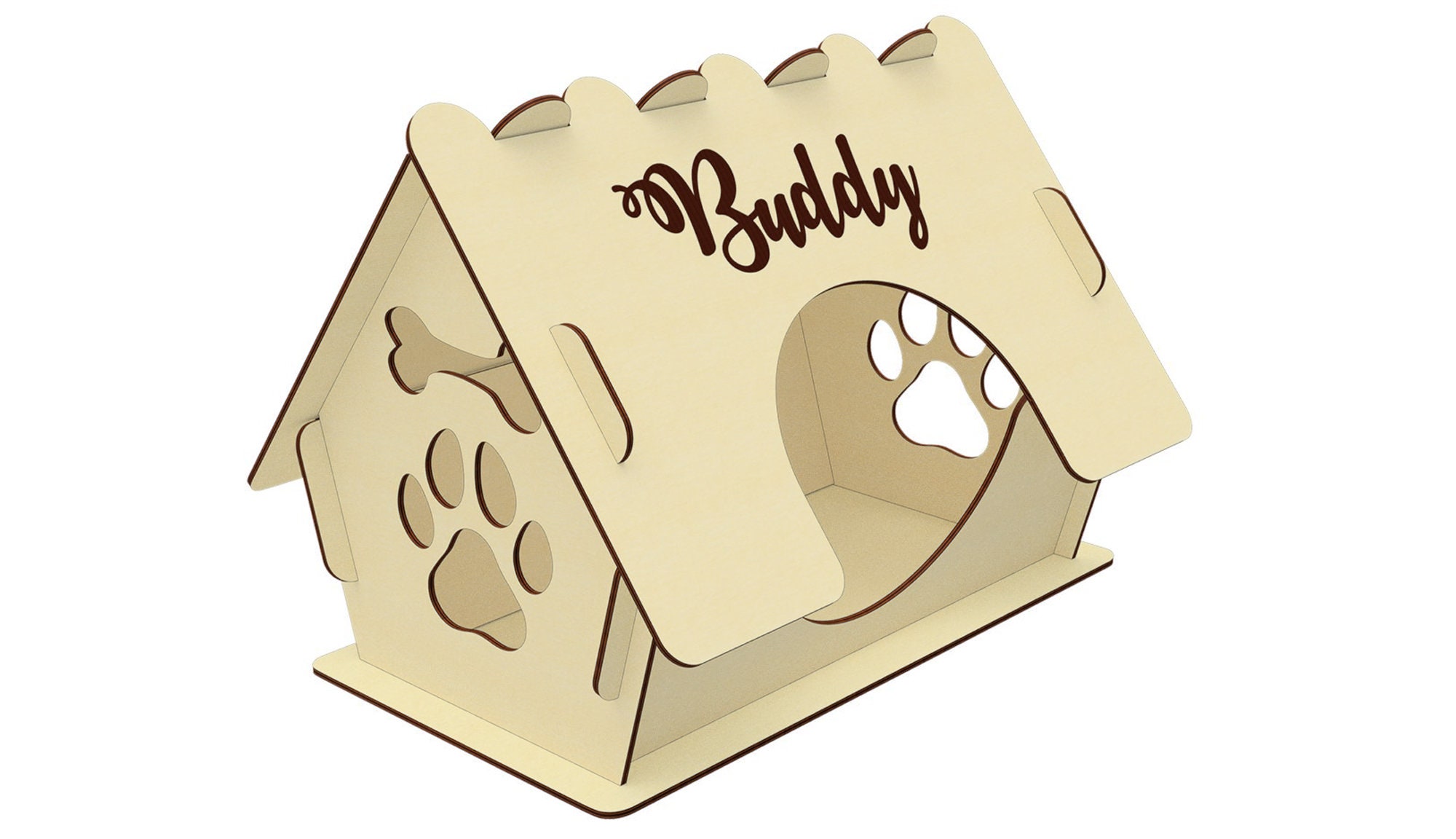

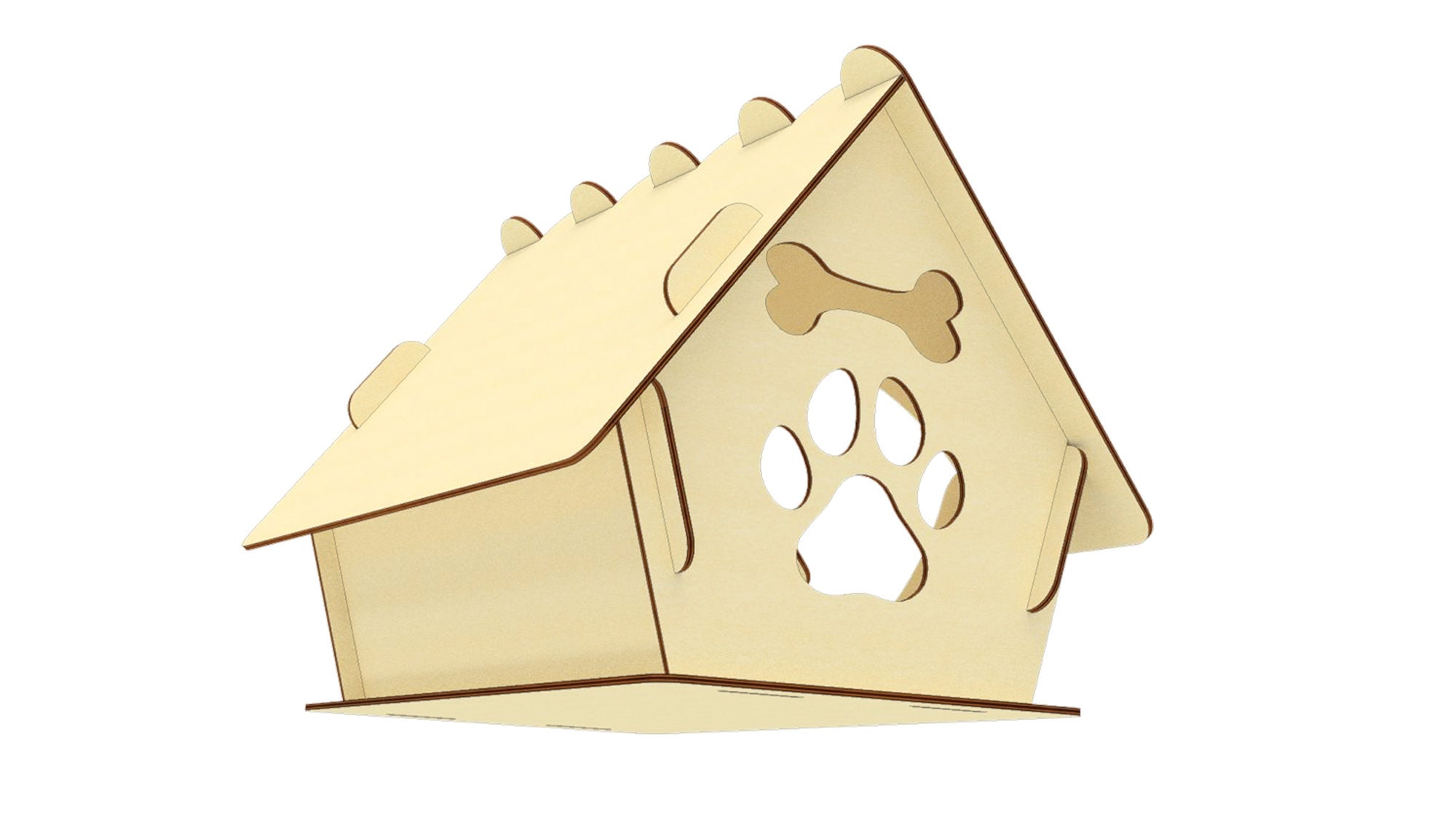

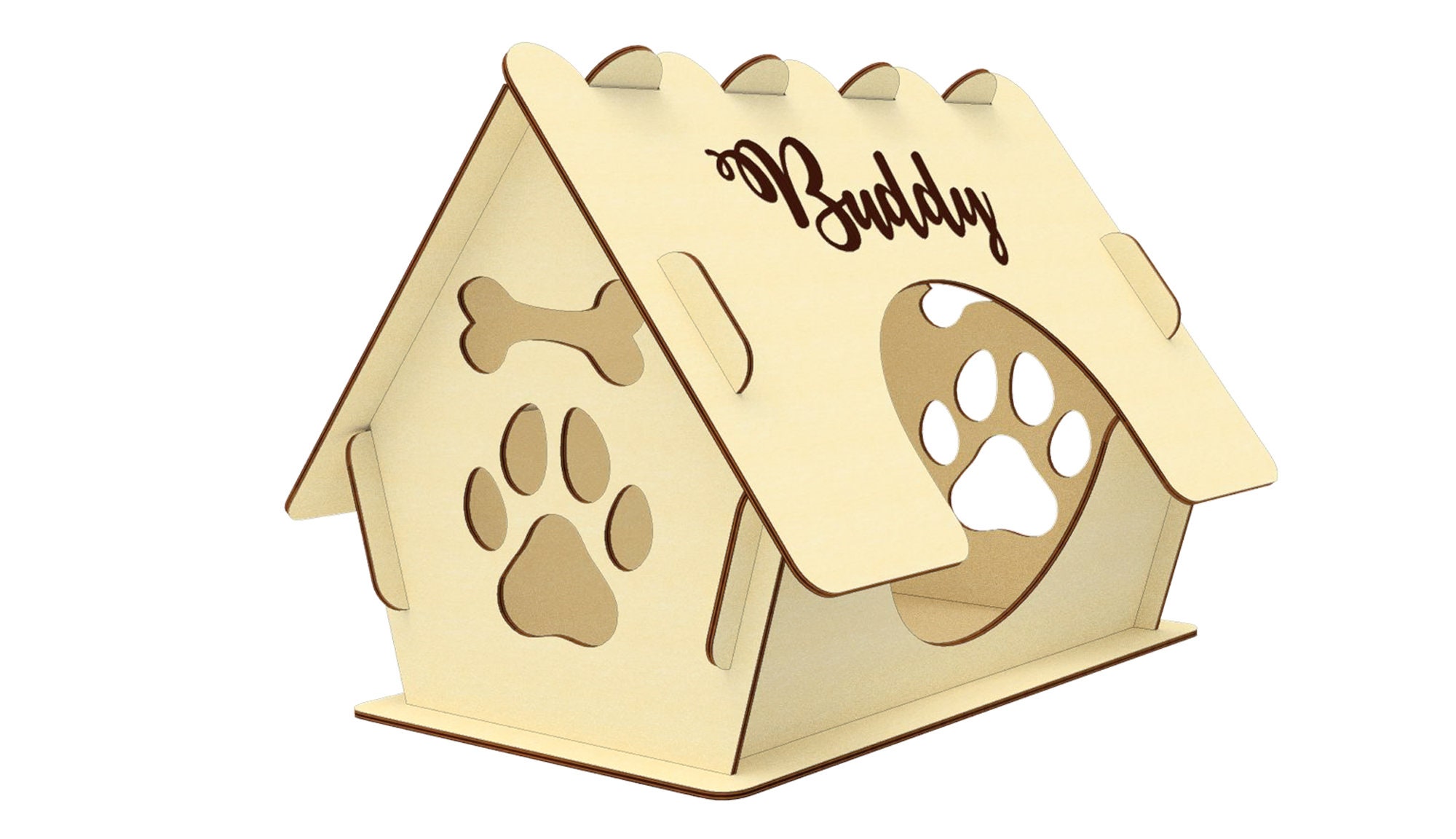

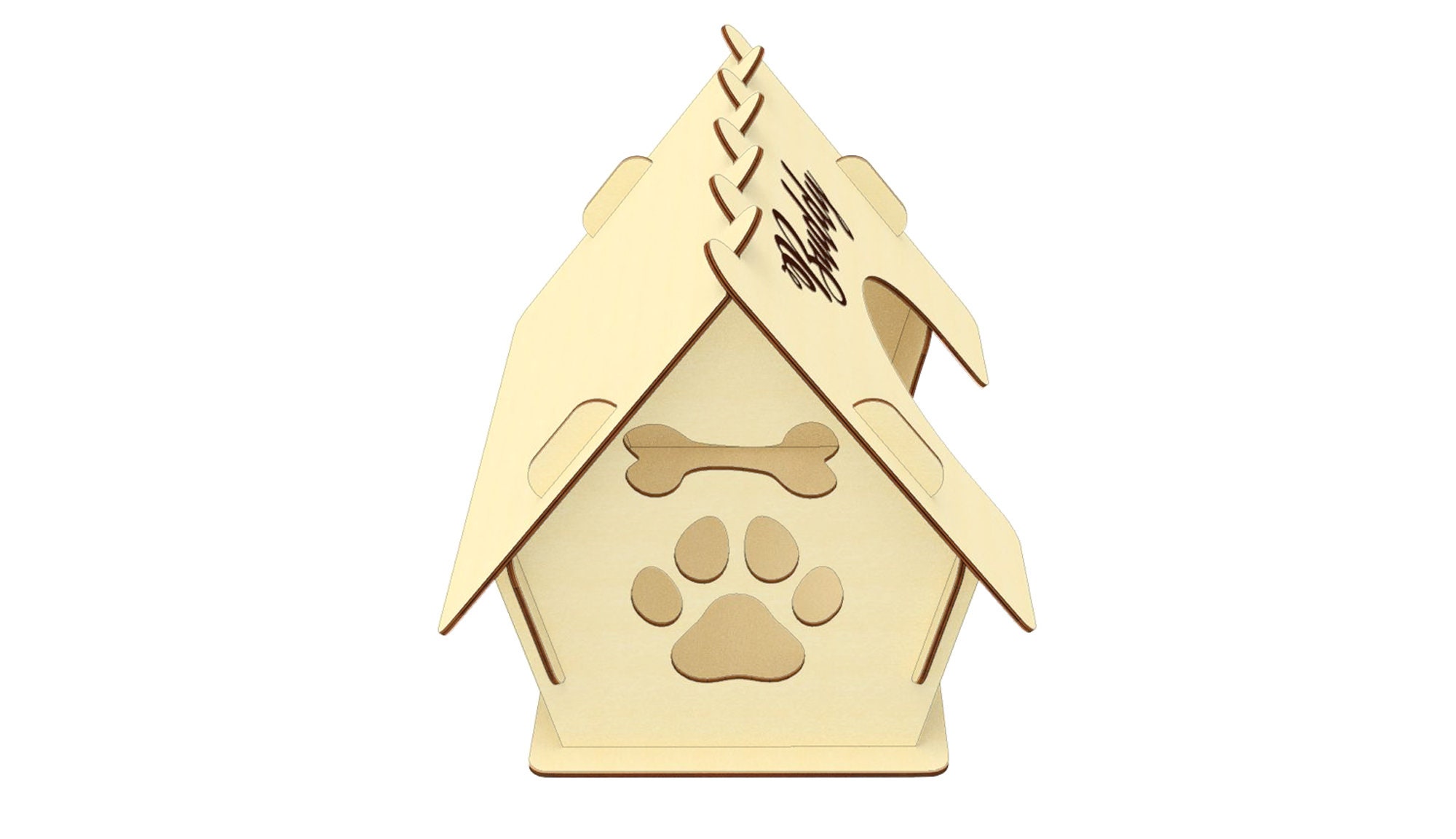

Model “Dog house”. Vector plan for Laser Cutting.

Material thickness: 3mm, 1/8”(3.175mm), 4mm, 6mm, 1/4”(6.35mm)

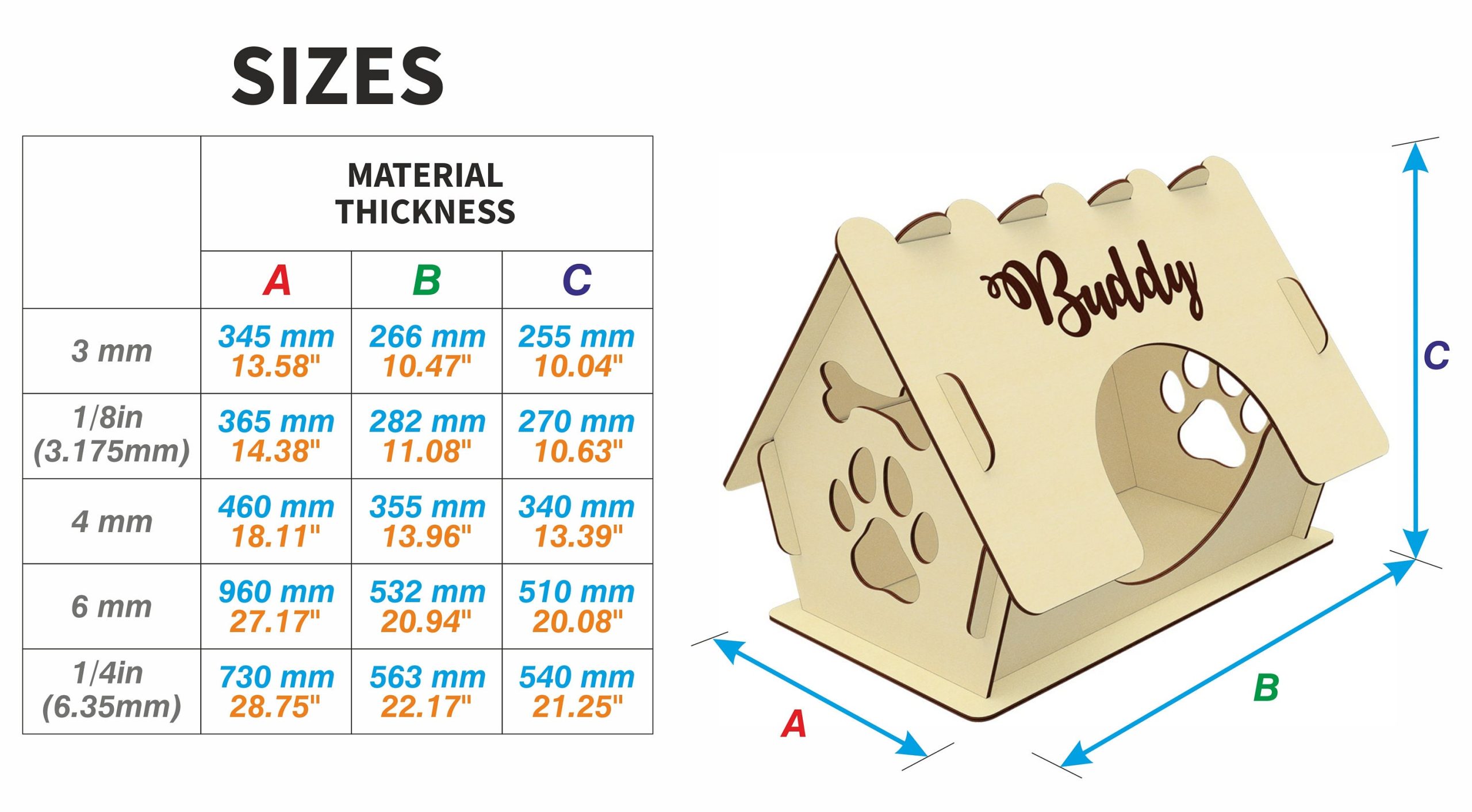

Sizes:
3 mm thickness: 345 x 266 x 255 mm (13,58 x 10,47 x 10,04”)
1/8”(3.175mm) thickness: 365 x 282 x 270 mm (14,38 x 11,08 x 10,63”)
4 mm thickness: 460 x 355 x 340 mm (18,11 x 13,96 x 13,39”)
6 mm thickness: 690 x 532 x 510 mm (27,17 x 20,94 x 20,08”)
1/4”(6.35mm) thickness: 730 x 563 x 540 mm (28,75 x 22,17 x 21,25”)

Work area:
3 mm thickness: 830 x 671 mm (32,68 x 26,42”)
1/8”(3.175mm) thickness: 878 x 710 mm (34,58 x 27,96”)
4 mm thickness: 1107 x 895 mm (43,57 x 35,22”)
6 mm thickness: 1660 x 1342 mm (65,35 x 52,83”)
1/4”(6.35mm) thickness: 1757 x 1420 mm (69,17 x 55,92”)

Biggest part:
3 mm thickness: 345 x 231 mm (13,58 x 9,09”)
1/8”(3.175mm) thickness: 365 x 244 mm (14,38 x 9,63”)
4 mm thickness: 460 x 308 mm (18,11 x 12,13”)
6 mm thickness: 690 x 462 mm (27,17 x 18,19”)
1/4”(6.35mm) thickness: 730 x 489 mm (28,75 x 19,25”)

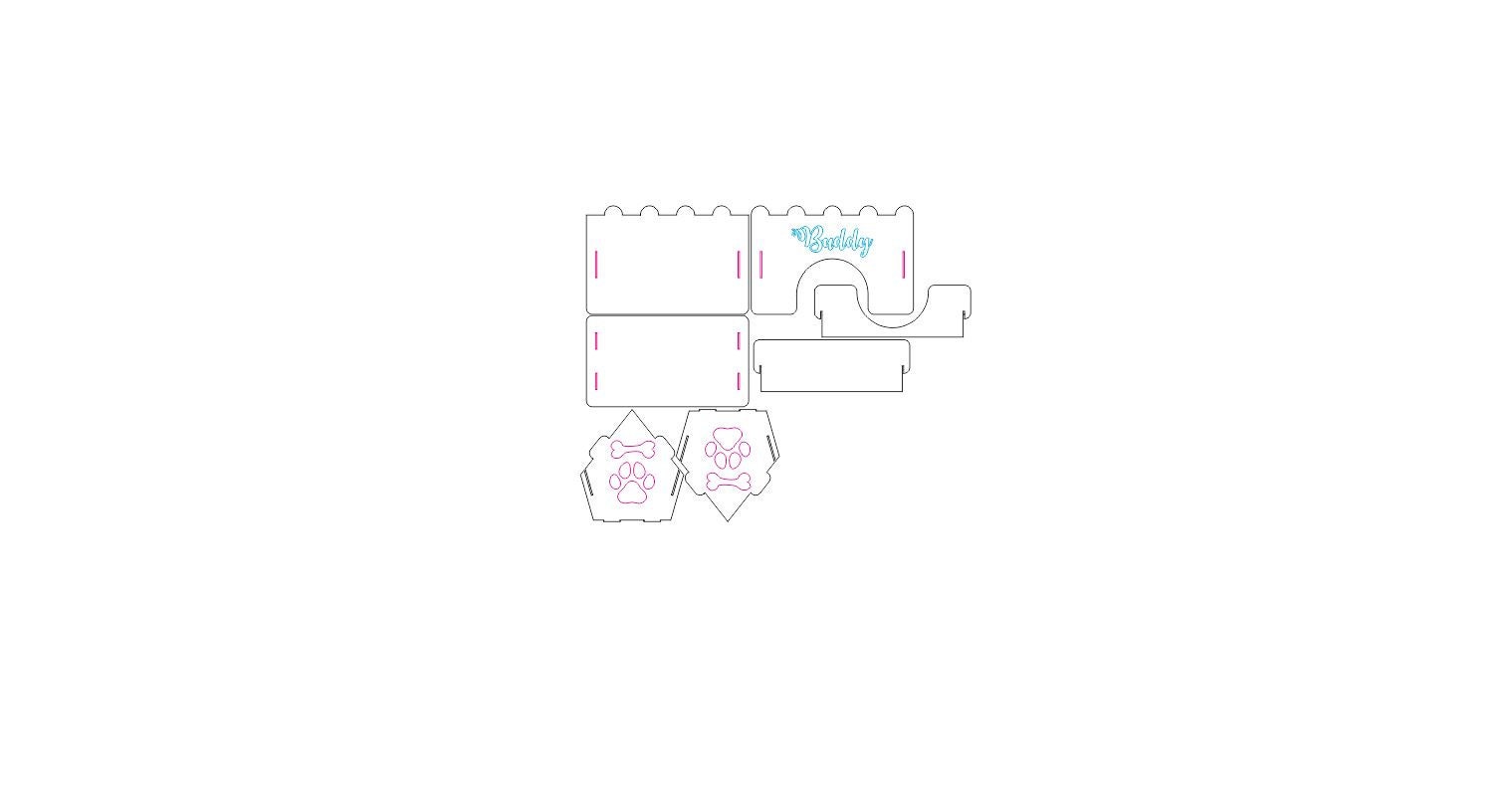

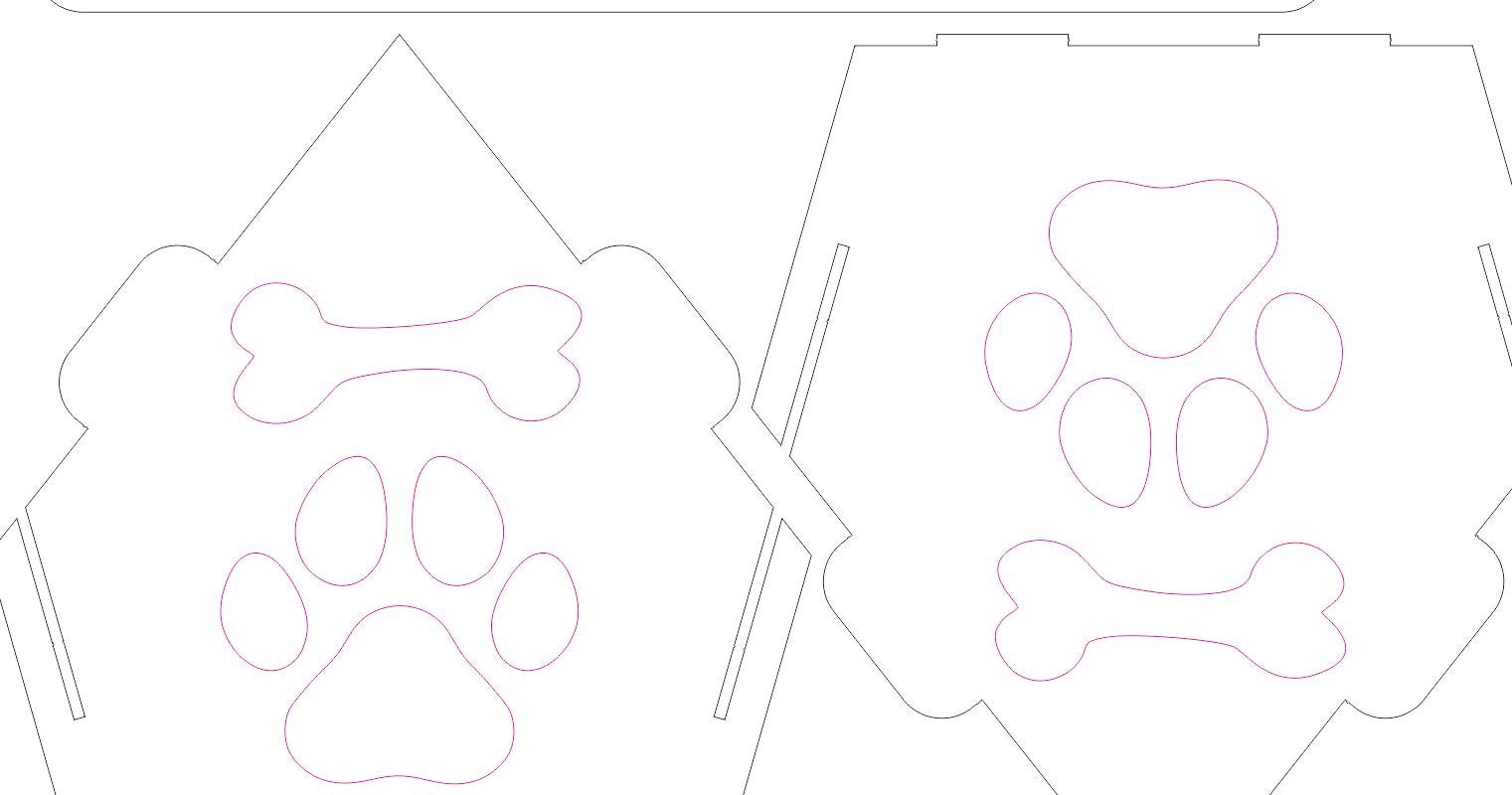

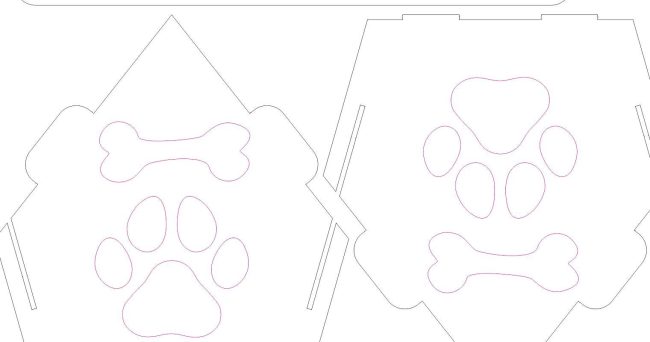

In the file:
blue color – engrave
pink color – cut
black color – cut

What you receive:
You will download 1 ZIP files for 3mm, 1/8”(3.175mm), 4mm, 6mm, 1/4”(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)

These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine

This is an Instant Digital Download

The item is non-refundable because it’s not physical.
YOU CAN use the files for personal purposes and for your small business. For commercial use, indicate my authorship “Designed by Ivan Bilous”
YOU CANNOT share, redistribute or resell the files.

Copyright is not transferable with the sale.
