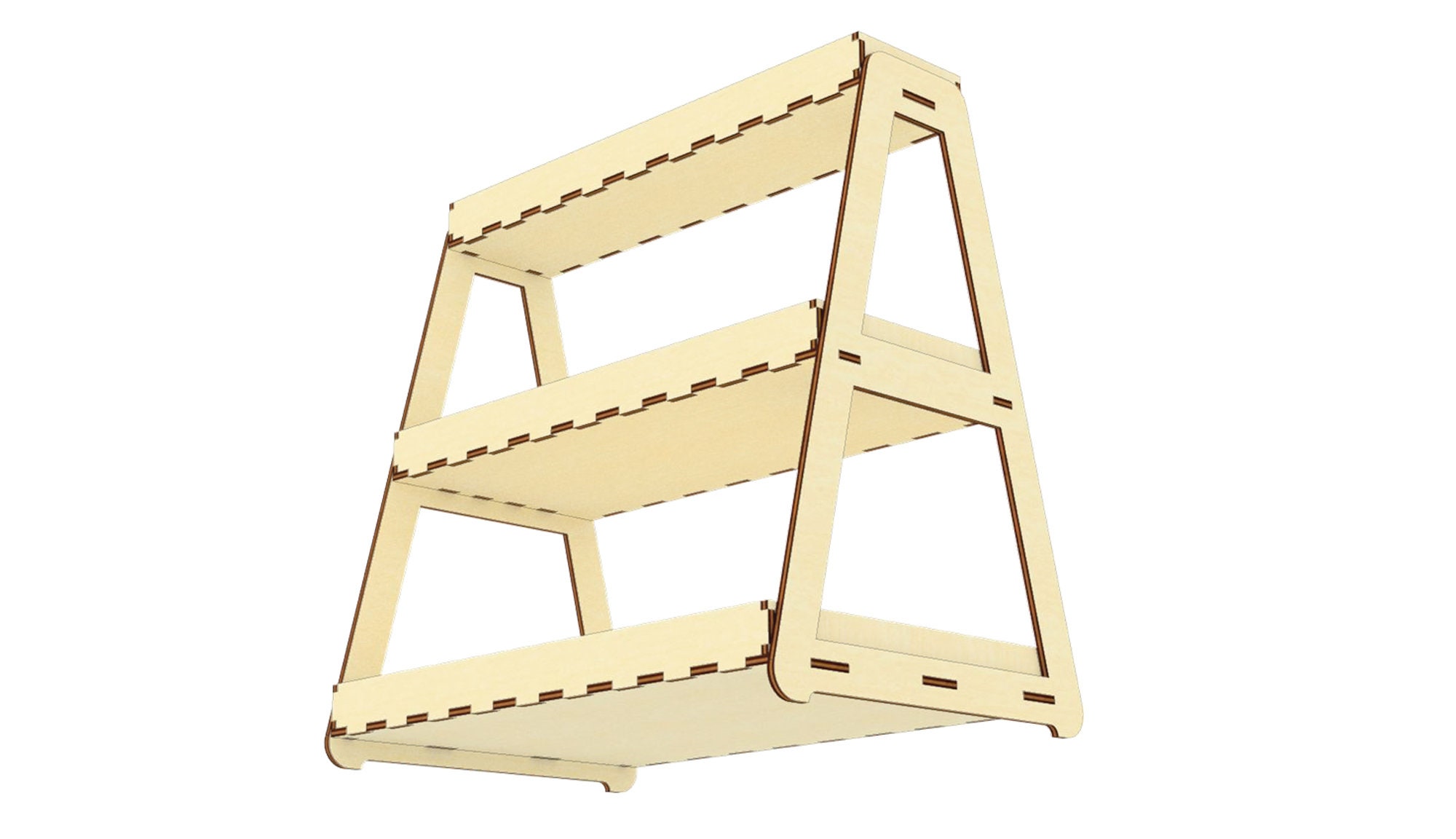

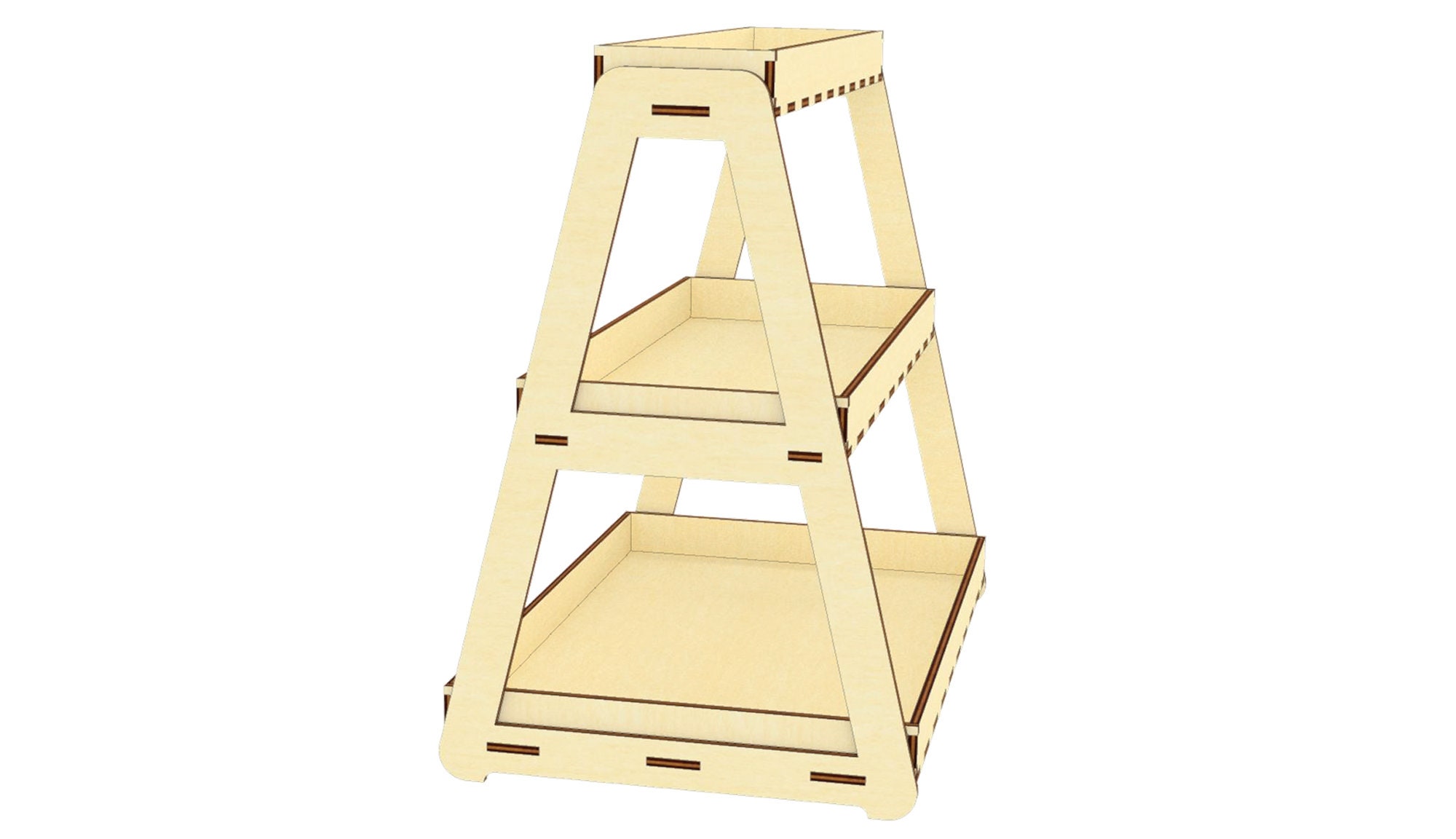

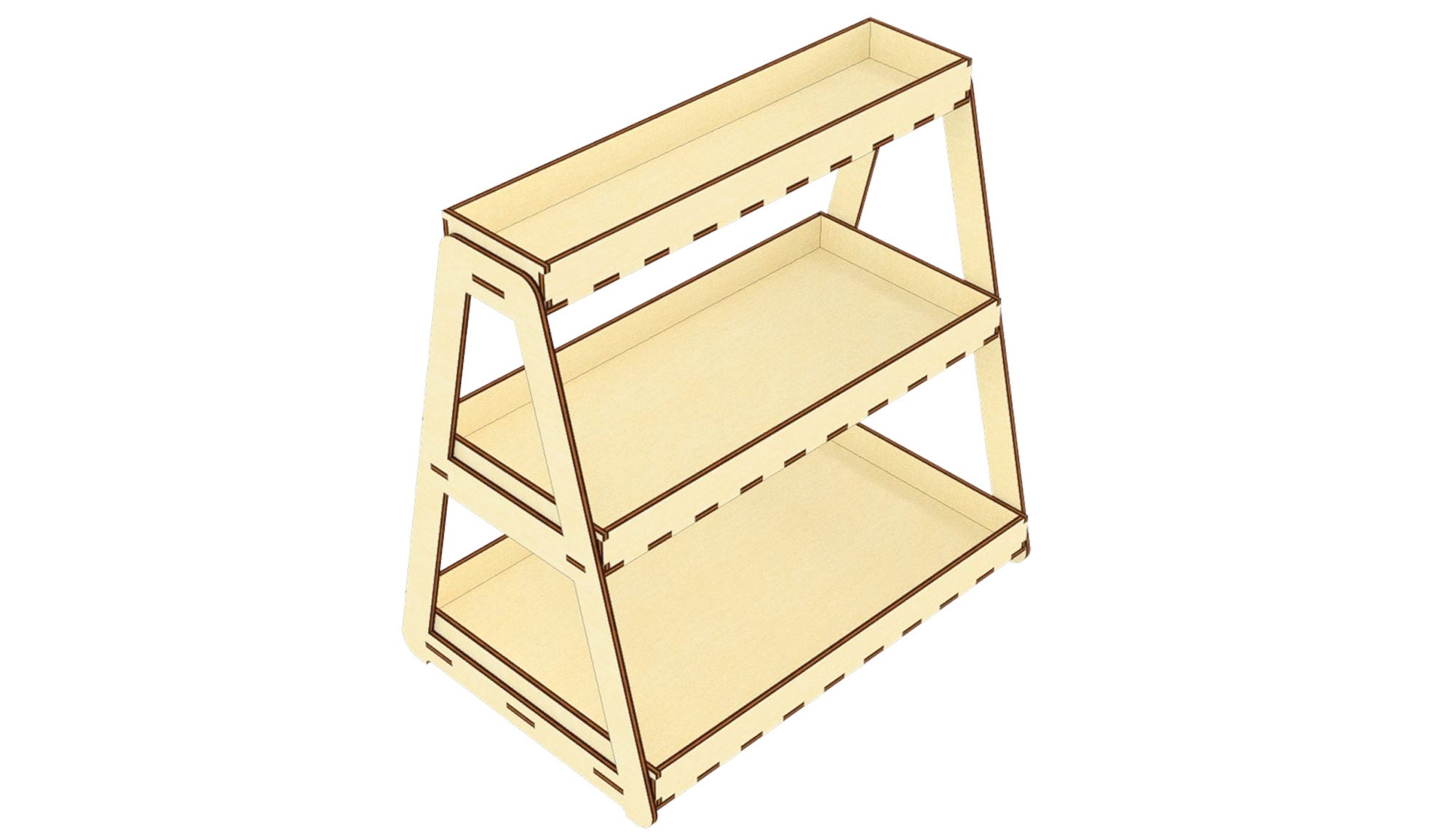

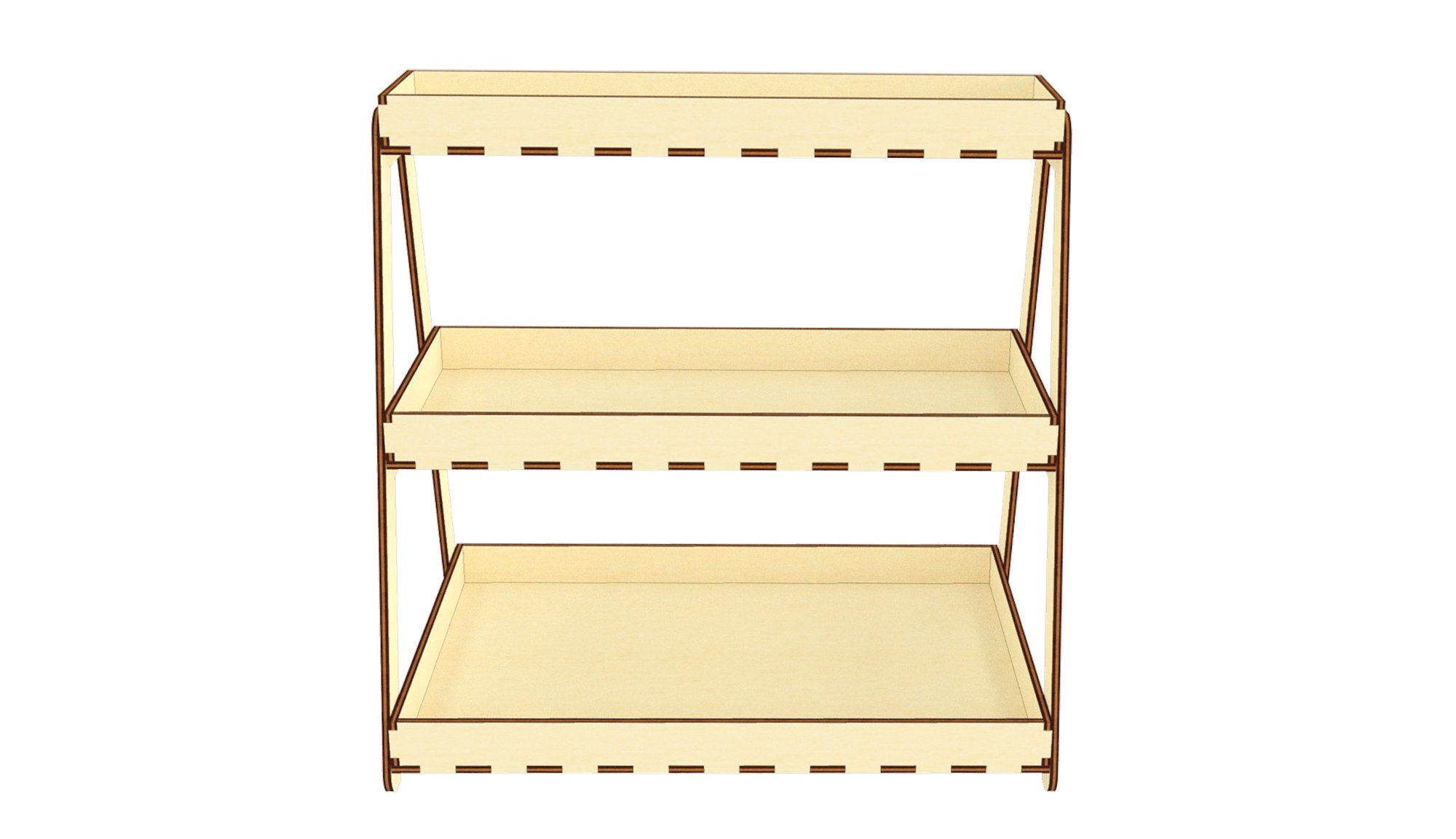

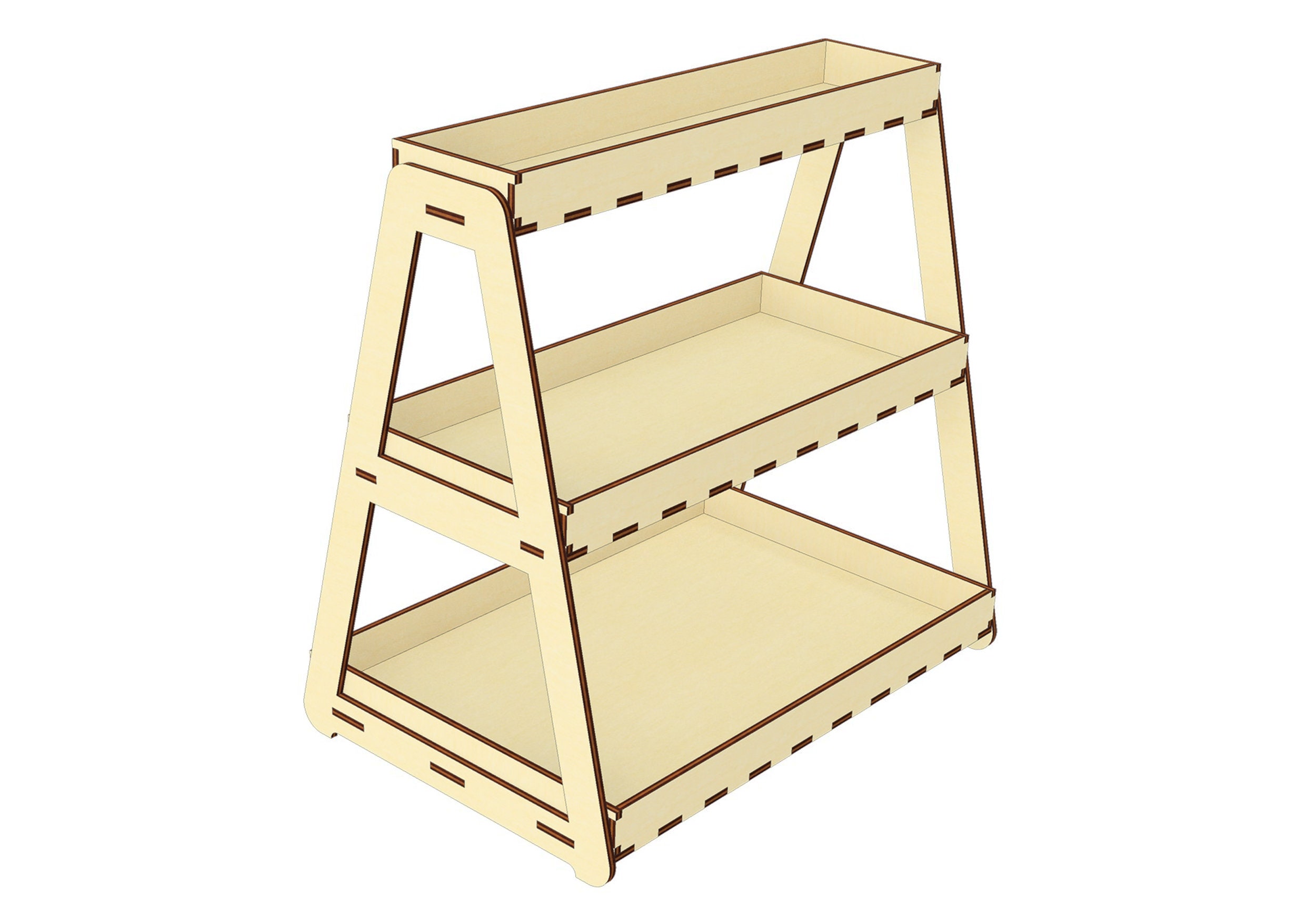

Model “Display Stand”. Vector plan for Laser Cutting.

Material thickness: 3mm, 1/8”(3.175mm), 4mm, 6mm, 1/4”(6.35mm)

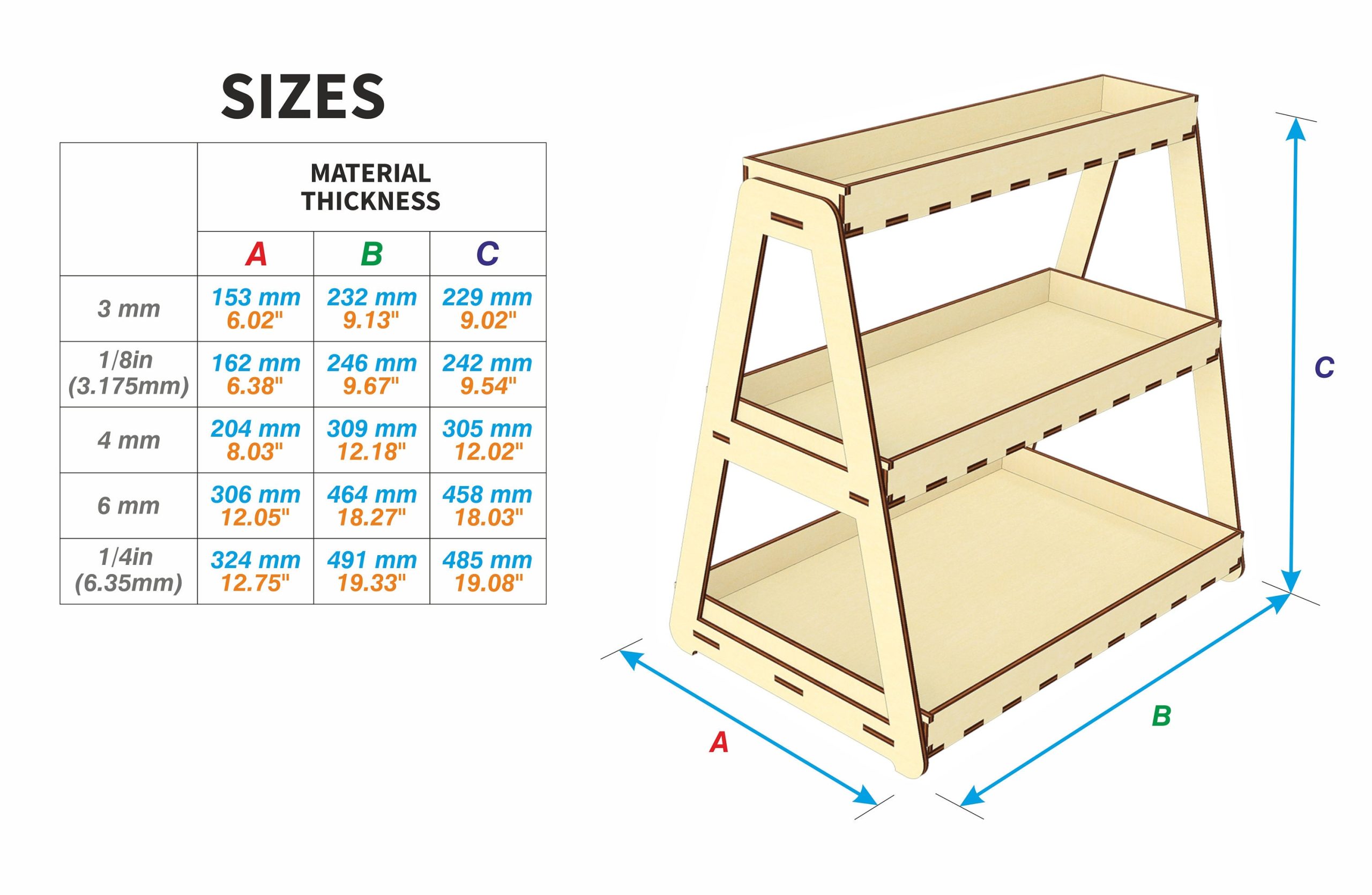

Sizes:
3 mm thickness: 153 x 232 x 229 mm (6,02 x 9,13 x 9,02”)
1/8”(3.175mm) thickness: 162 x 246 x 242 mm (6,38 x 9,67 x 9,54”)
4 mm thickness: 204 x 309 x 305 mm (8,03 x 12,18 x 12,02”)
6 mm thickness: 306 x 464 x 458 mm (12,05 x 18,27 x 18,03”)
1/4”(6.35mm) thickness: 324 x 491 x 485 mm (12,75 x 19,33 x 19,08”)

Work area:
3 mm thickness: 814 x 234 mm (32,05 x 9,21”)
1/8”(3.175mm) thickness: 861 x 248 mm (33,92 x 9,75”)
4 mm thickness: 1085 x 312 mm (42,73 x 12,28”)
6 mm thickness: 1628 x 468 mm (64,09 x 18,43”)
1/4”(6.35mm) thickness: 1723 x 495 mm (67,83 x 19,50”)

Biggest part:
3 mm thickness: 153 x 232 mm (6,02 x 9,13”)
1/8”(3.175mm) thickness: 162 x 246 mm (6,38 x 9,67”)
4 mm thickness: 204 x 309 mm (8,03 x 12,18”)
6 mm thickness: 306 x 464 mm (12,05 x 18,27”)
1/4”(6.35mm) thickness: 324 x 491 mm (12,75 x 19,33”)

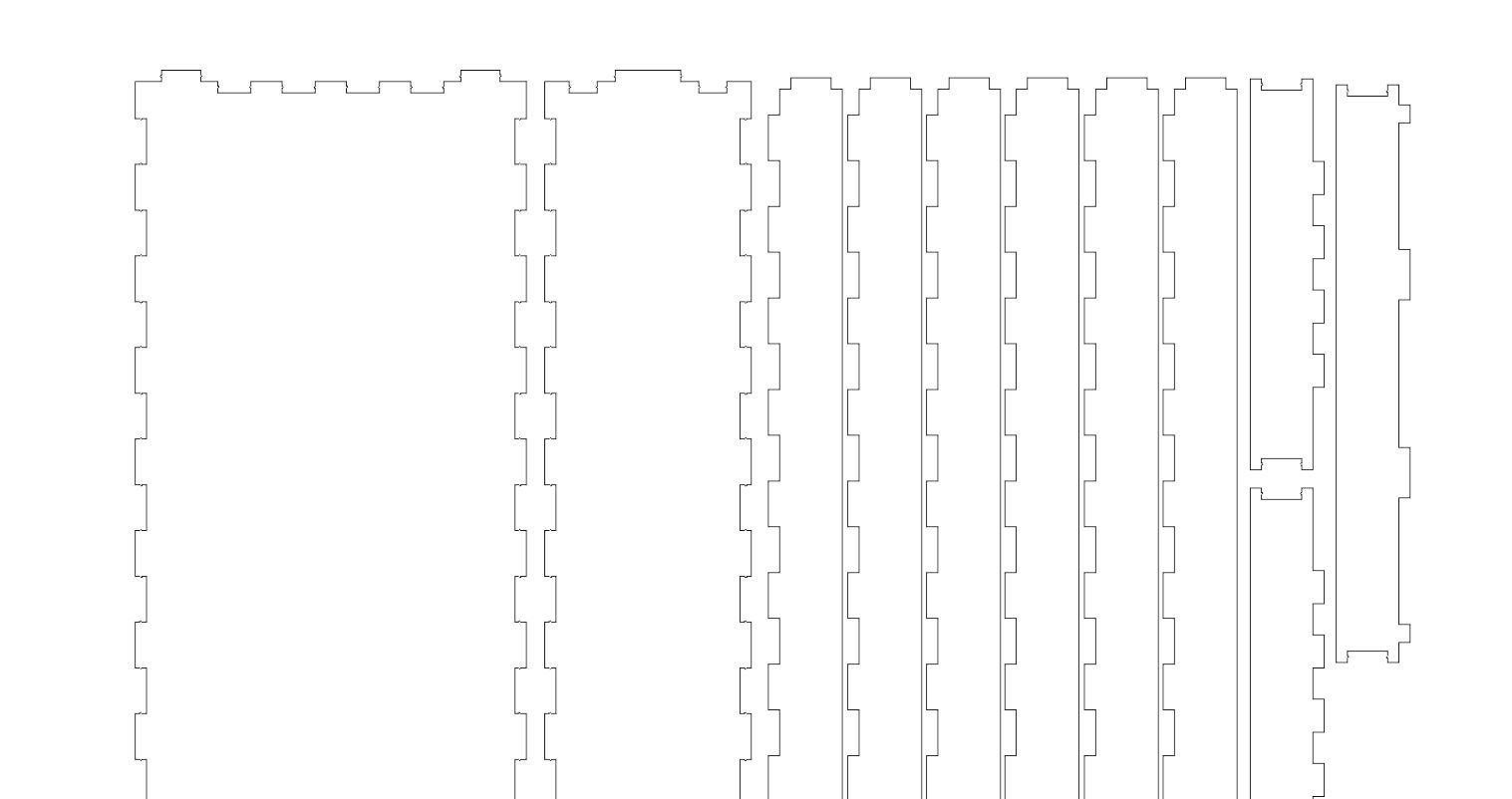

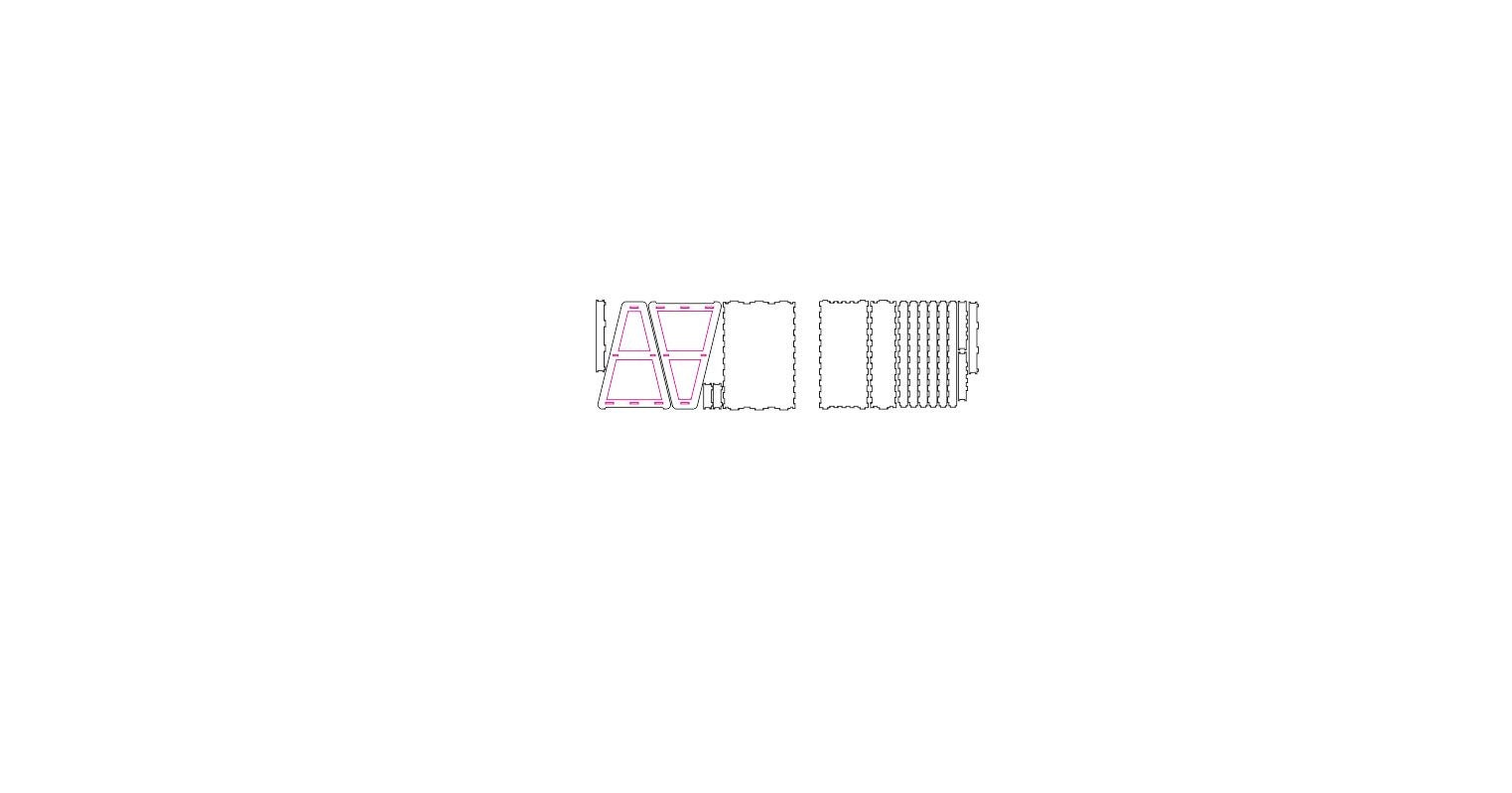

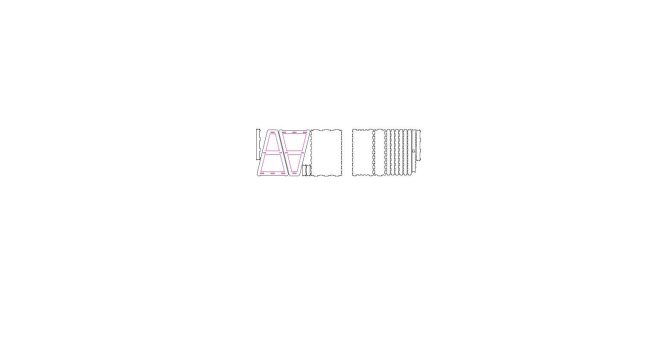

In the file:
pink color – cut
black color – cut

What you receive:
You will download 1 ZIP files for 3mm, 1/8”(3.175mm), 4mm, 6mm, 1/4”(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)

These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine

This is an Instant Digital Download

The item is non-refundable because it’s not physical.
YOU CAN use the files for personal purposes and for your small business. For commercial use, indicate my authorship “Designed by Ivan Bilous”
YOU CANNOT share, redistribute or resell the files.

Copyright is not transferable with the sale.
