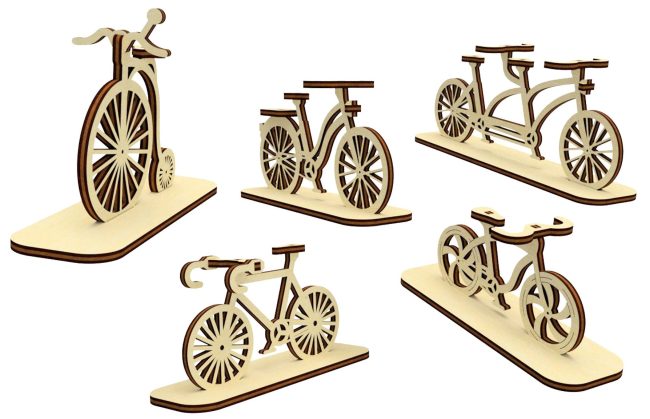

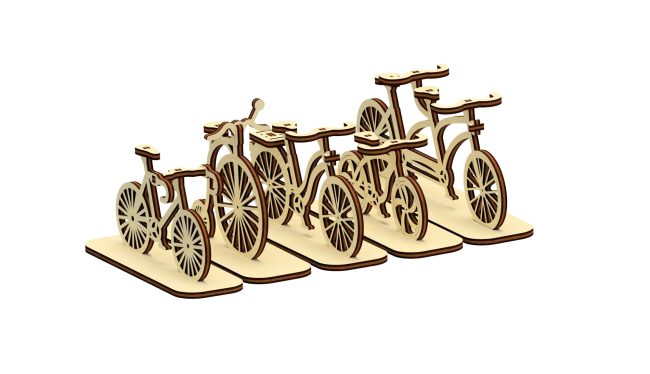

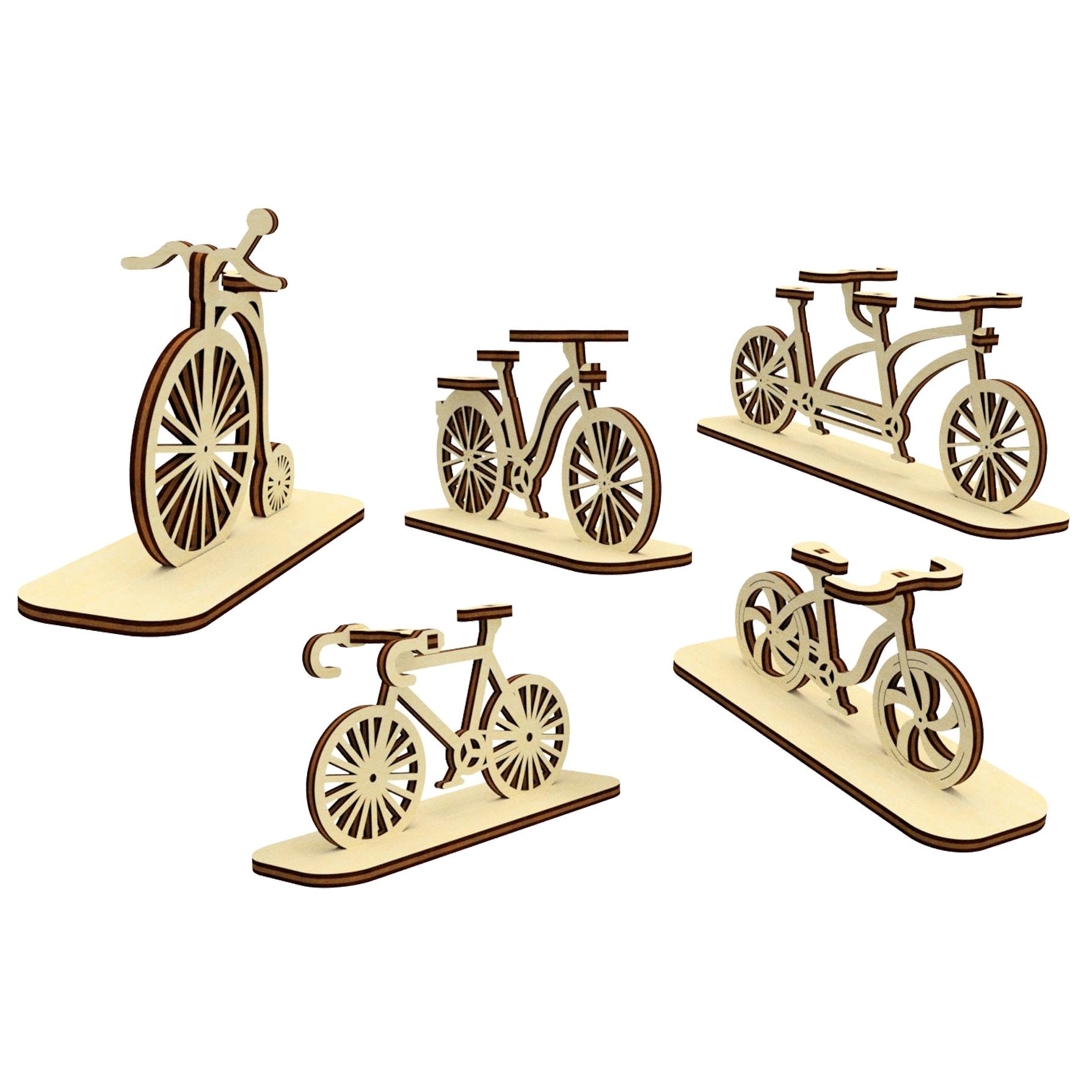

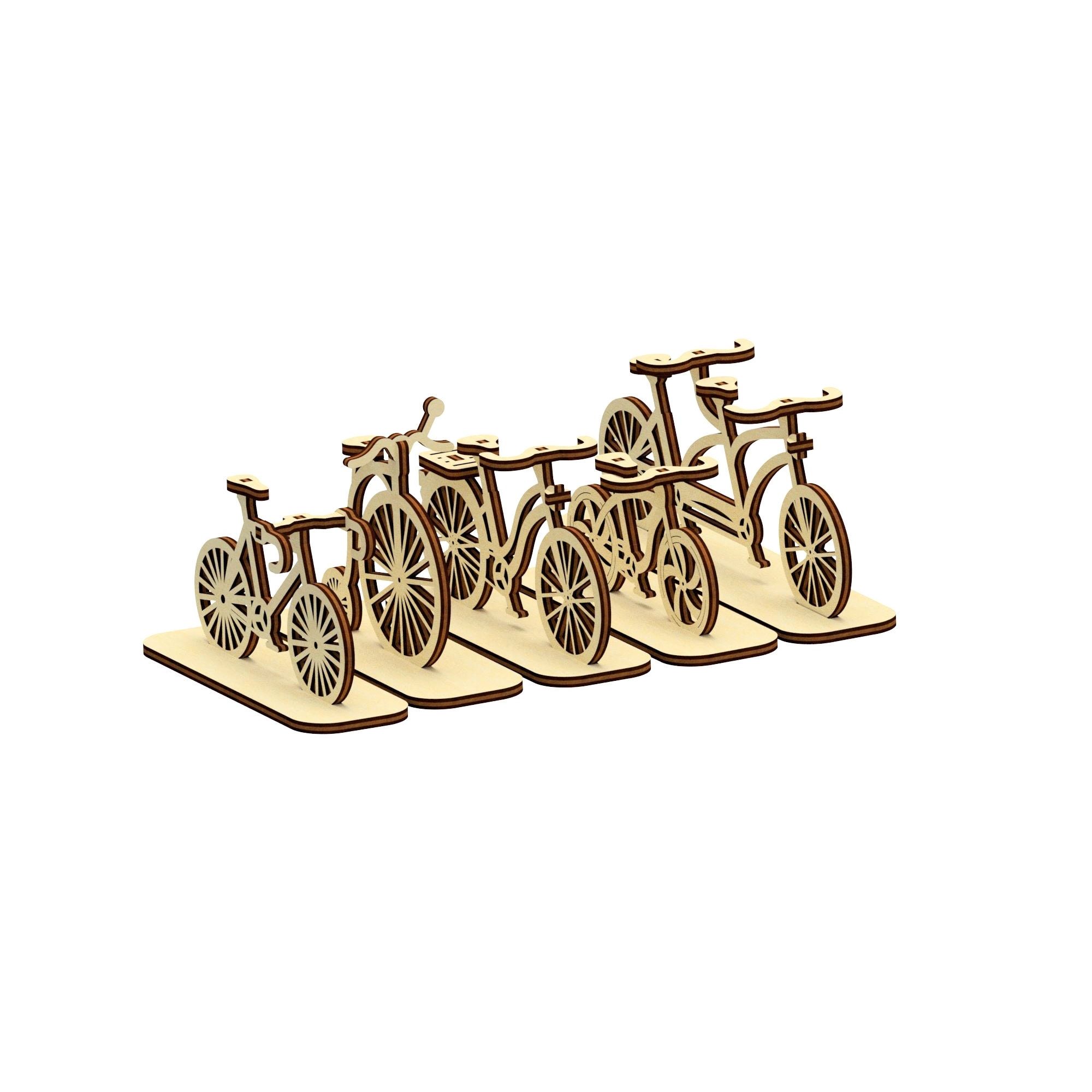

Set of bike models for laser cutting

Material thickness: 3mm, 1/8”(3.175mm), 4mm, 6mm, 1/4”(6.35mm)

In the files:
green color – draw (cut with little power and big speed)
pink color – cut
black color – cut

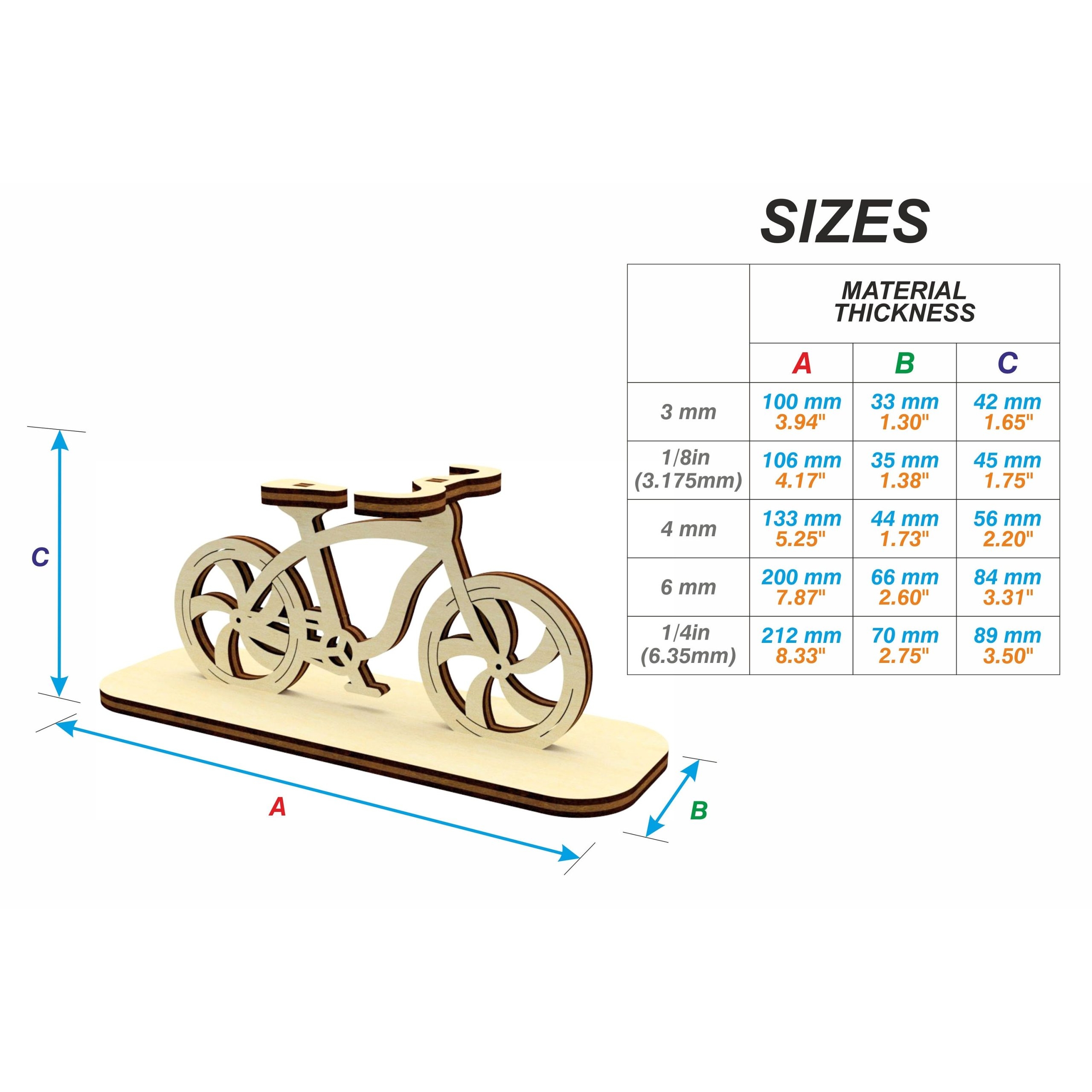

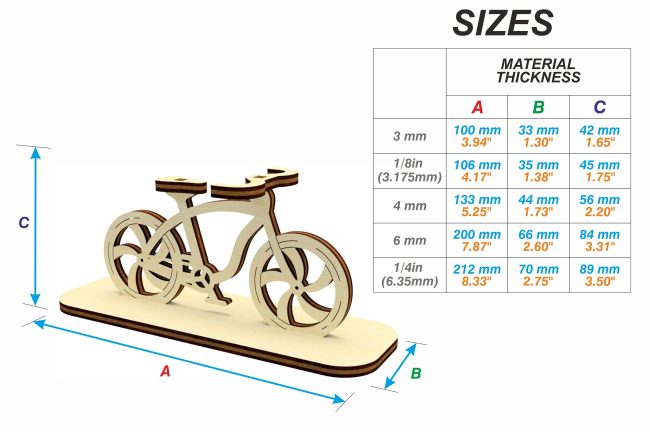

1) SPORT BICYCLE

Sizes:
3 mm thickness: 100 x 33 x 42 mm (3.94 x 1.30 x 1.65”)
1/8”(3.175mm) thickness: 106 x 35 x 45 mm (4.17 x 1.38 x 1.75”)
4 mm thickness: 133 x 44 x 56 mm (5.25 x 1.73 x 2.20”)
6 mm thickness: 200 x 66 x 84 mm (7.87 x 2.60 x 3.31”)
1/4”(6.35mm) thickness: 212 x 70 x 89 mm (8.33 x 2.75 x 3.50”)

Work area:
3 mm thickness: 100 x 75 mm (3.94 x 2.95”)
1/8”(3.175mm) thickness: 106 x 79 mm (4.17 x 3.13”)
4 mm thickness: 133 x 100 mm (5.25 x 3.94”)
6 mm thickness: 200 x 150 mm (7.87 x 5.91”)
1/4”(6.35mm) thickness: 212 x 159 mm (8.33 x 6.25”)

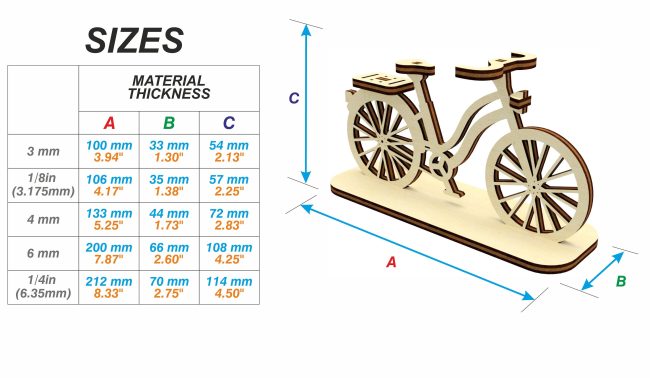

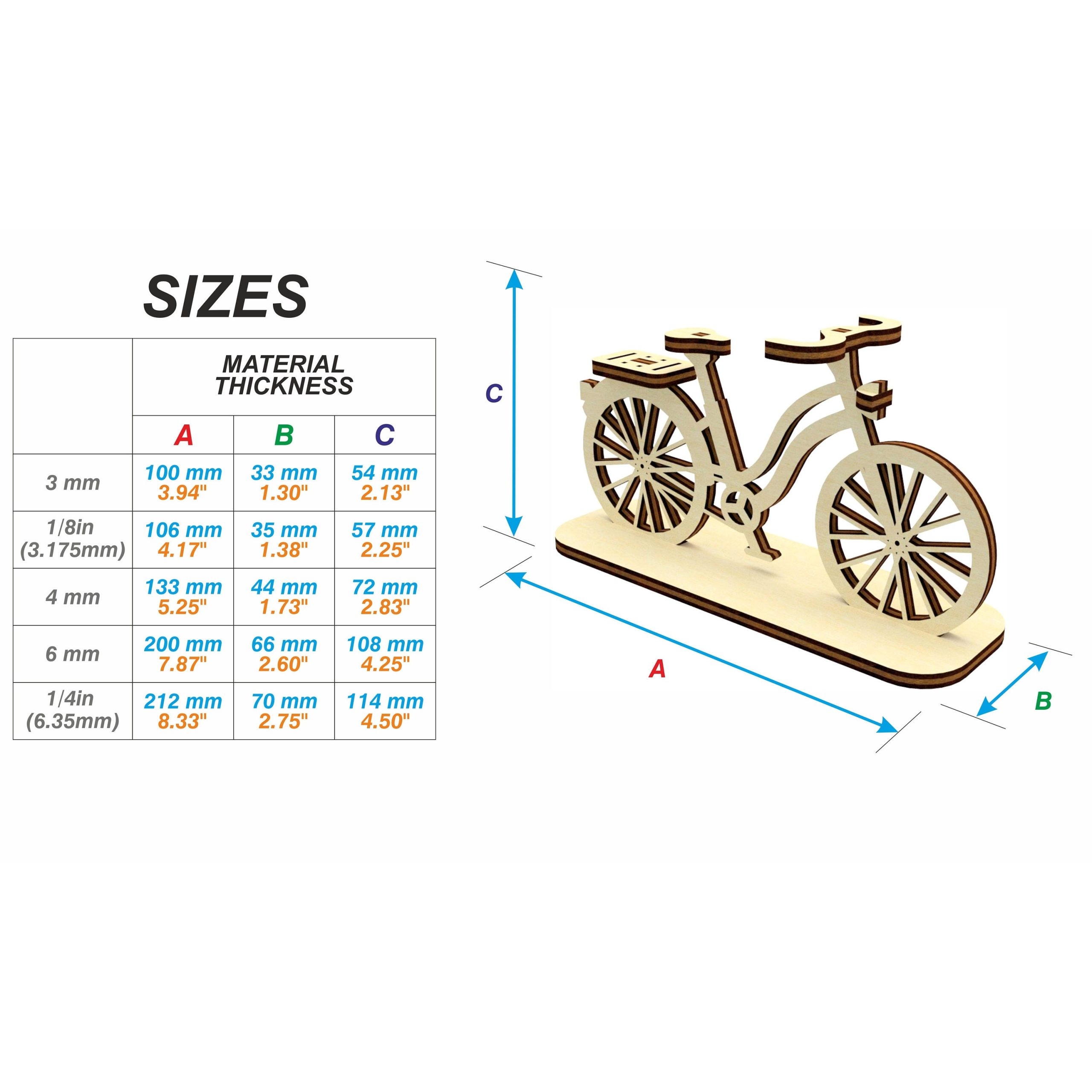

2) BICYCLE

Sizes:
3 mm thickness: 100 x 33 x 54 mm (3.94 x 1.30 x 2.13”)
1/8”(3.175mm) thickness: 106 x 35 x 57 mm (4.17 x 1.38 x 2.25”)
4 mm thickness: 133 x 44 x 72 mm (5.25 x 1.73 x 2.83”)
6 mm thickness: 200 x 66 x 108 mm (7.87 x 2.60 x 4.25”)
1/4”(6.35mm) thickness: 212 x 70 x 114 mm (8.33 x 2.75 x 4.50”)

Work area:
3 mm thickness: 100 x 89 mm (3.94 x 3.50”)
1/8”(3.175mm) thickness: 106 x 94 mm (4.17 x 3.71”)
4 mm thickness: 133 x 119 mm (5.25 x 4.67”)
6 mm thickness: 200 x 178m (7.87 x 7.01”)
1/4”(6.35mm) thickness: 212 x 188 mm (8.33 x 7.42”)

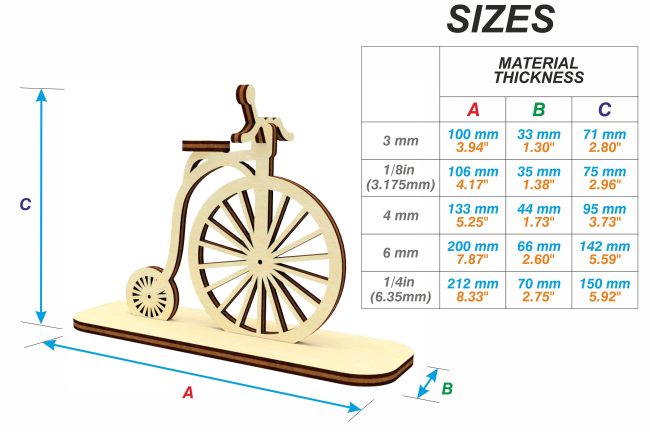

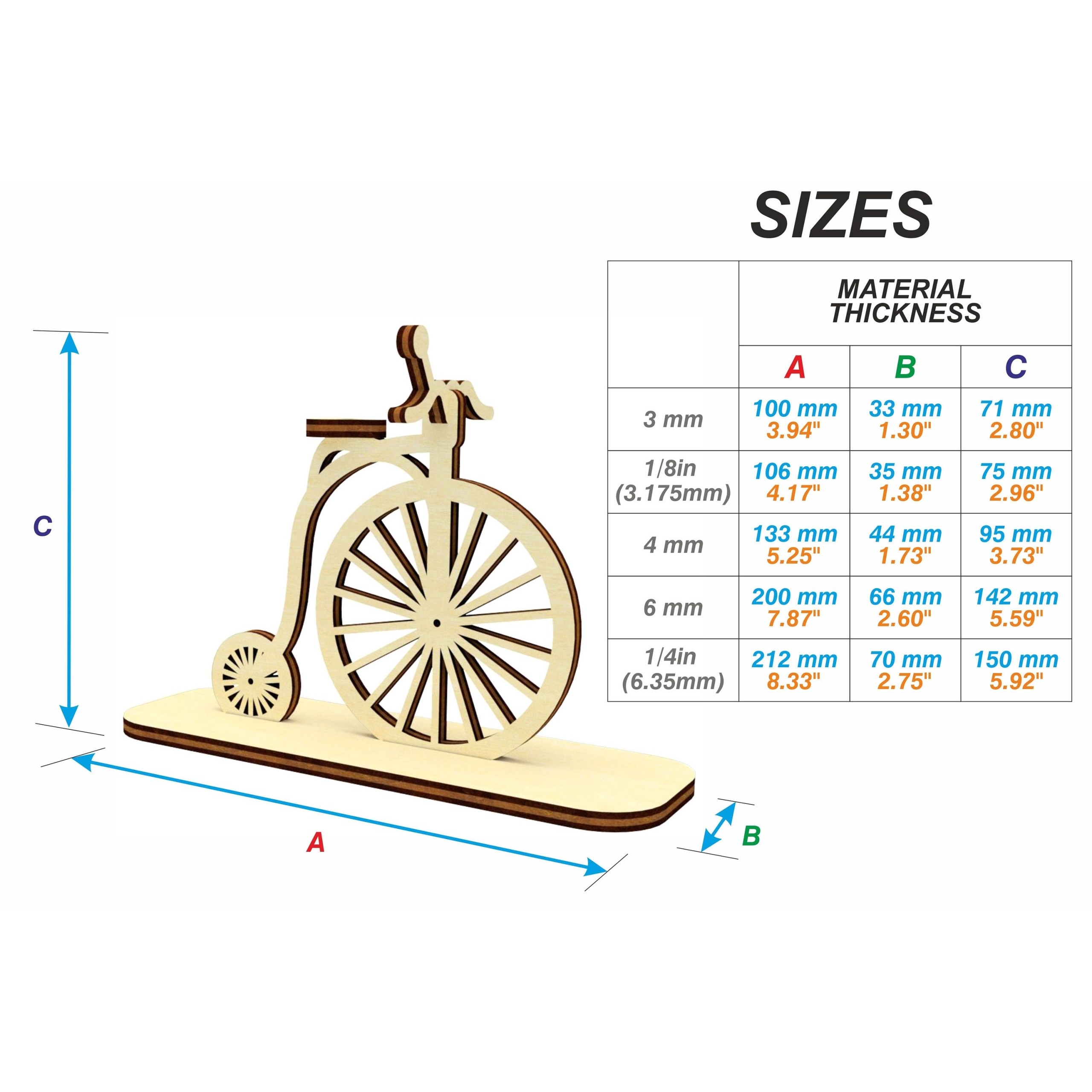

3) CIRCUS BICYCLE

Sizes:
3 mm thickness: 100 x 33 x 71 mm (3.94 x 1.30 x 2.80”)
1/8”(3.175mm) thickness: 106 x 35 x 755 mm (4.17 x 1.38 x 2.96”)
4 mm thickness: 133 x 44 x 95 mm (5.25 x 1.73 x 3.73”)
6 mm thickness: 200 x 66 x 142 mm (7.87 x 2.60 x 5.59”)
1/4”(6.35mm) thickness: 212 x 70 x 150 mm (8.33 x 2.75 x 5.92”)

Work area:
3 mm thickness: 100 x 95 mm (3.94 x 3.74”)
1/8”(3.175mm) thickness: 106 x 101 mm (4.17 x 3.96”)
4 mm thickness: 133 x 127 mm (5.25 x 4.99”)
6 mm thickness: 200 x 190 mm (7.87 x 7.48”)
1/4”(6.35mm) thickness: 212 x 201 mm (8.33 x 7.92”)

4) TANDEM

Sizes:
3 mm thickness: 140 x 33 x 57 mm (5.51 x 1.30 x 2.24”)
1/8”(3.175mm) thickness: 148 x 35 x 60 mm (4.17 x 1.38 x 2.38”)
4 mm thickness: 187 x 44 x 76 mm (7.35 x 1.73 x 2.99”)
6 mm thickness: 280 x 66 x 114 mm (11.02 x 2.60 x 4.49”)
1/4”(6.35mm) thickness: 296 x 70 x 121 mm (11.67 x 2.75 x 4.75”)

Work area:
3 mm thickness: 140 x 96 mm (5.51 x 3.78”)
1/8”(3.175mm) thickness: 148 x 102 mm (5.83 x 4.00”)
4 mm thickness: 187 x 128 mm (7.35 x 5.04”)
6 mm thickness: 280 x 192 mm (11.02 x 7.56”)
1/4”(6.35mm) thickness: 296 x 203 mm (11.67 x 8.00”)

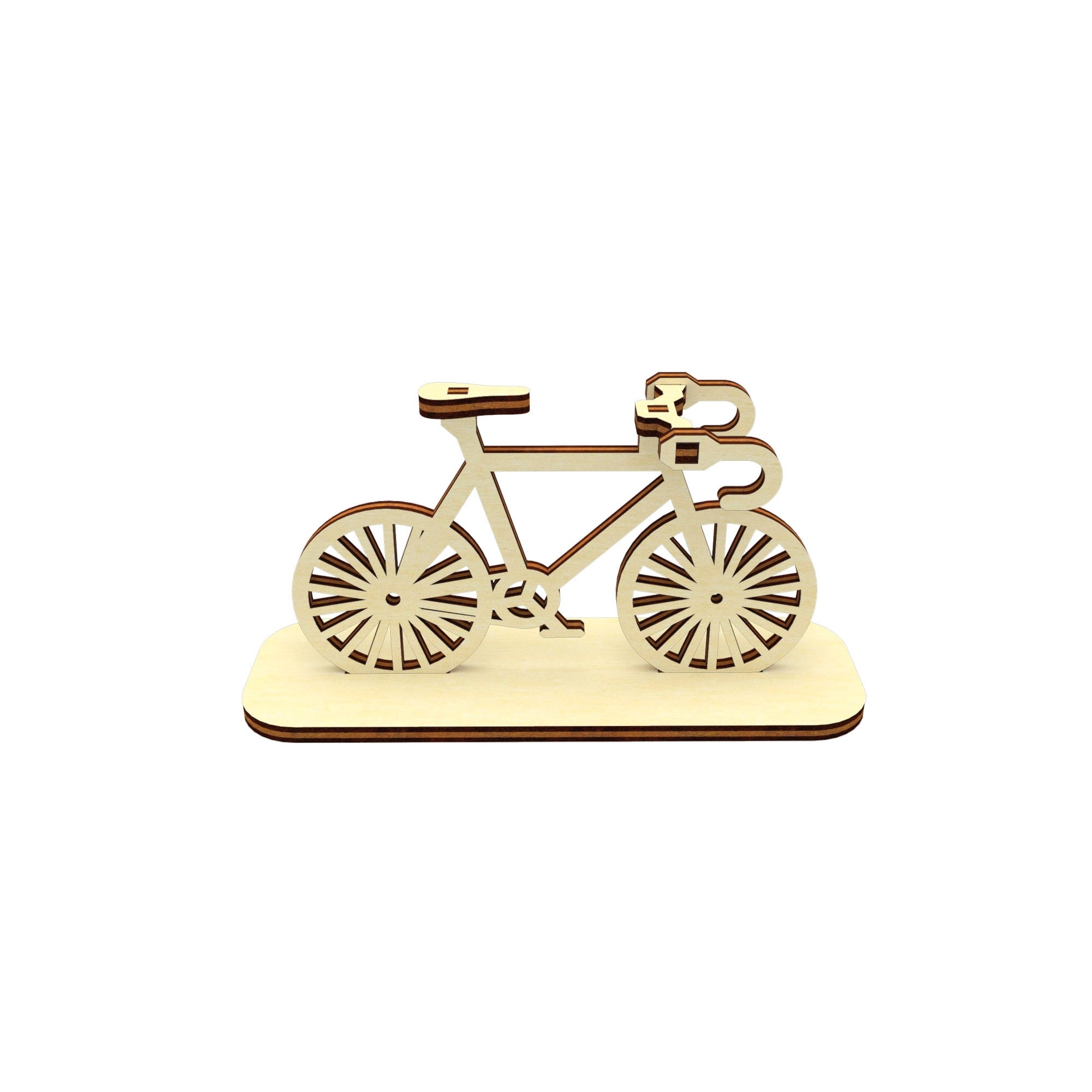

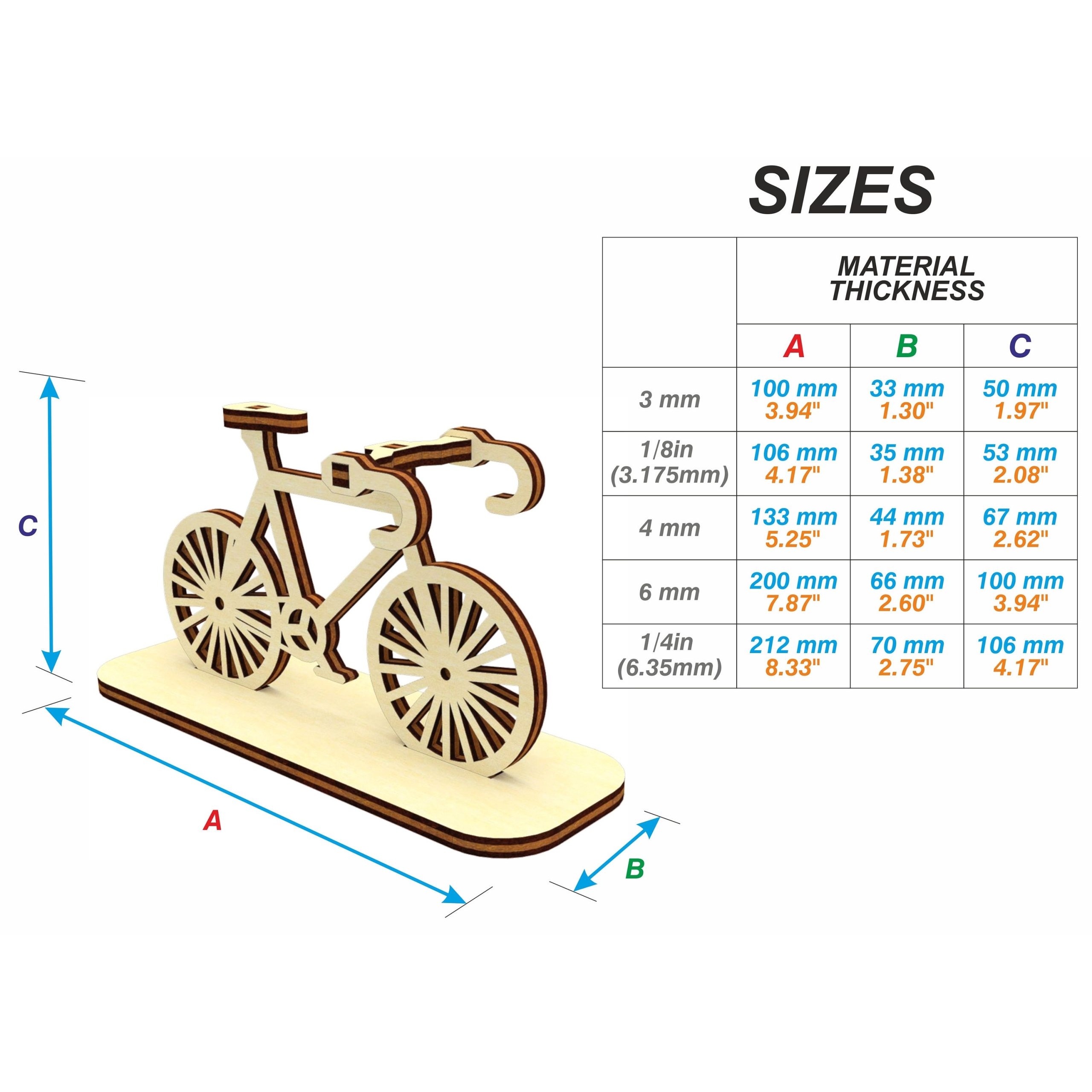

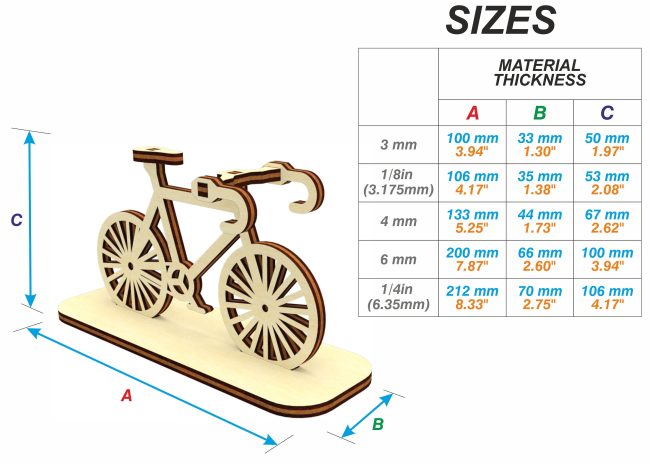

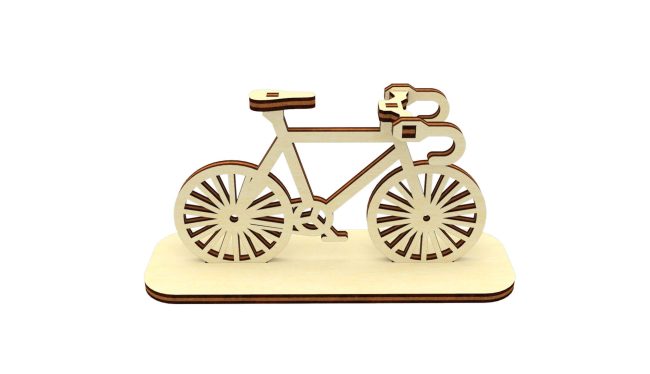

5) ROAD BIKE

Sizes:
3 mm thickness: 100 x 33 x 50 mm (3.94 x 1.30 x 1.97”)
1/8”(3.175mm) thickness: 106 x 35 x 53 mm (4.17 x 1.38 x 2.08”)
4 mm thickness: 133 x 44 x 67 mm (5.25 x 1.73 x 2.62”)
6 mm thickness: 200 x 66 x 100 mm (7.87 x 2.60 x 3.94”)
1/4”(6.35mm) thickness: 212 x 70 x 106 mm (8.33 x 2.75 x 4.17”)

Work area:
3 mm thickness: 100 x 88 mm (3.94 x 3.46”)
1/8”(3.175mm) thickness: 106 x 93 mm (4.17 x 3.67”)
4 mm thickness: 133 x 117 mm (5.25 x 4.62”)
6 mm thickness: 200 x 176 mm (7.87 x 6.93”)
1/4”(6.35mm) thickness: 212 x 186 mm (8.33 x 7.33”)

What you receive:
You will download 1 ZIP files for 3mm, 1/8”(3.175mm), 4mm, 6mm, 1/4”(6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting

If you have any questions feel free to contact me:)

These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine

This is an Instant Digital Download

The item is non-refundable because it’s not physical.
YOU CAN use the files for personal purposes and for your small business. For commercial use, indicate my authorship “Designed by Ivan Bilous”
YOU CANNOT share, redistribute or resell the files.

Copyright is not transferable with the sale.

Wholesale cheaper
Use promocodes for discount

3 files – WHOLESALE3 – 15%
5 files – WHOLESALE5 – 20%
10 files – WHOLESALE10 – 30%
