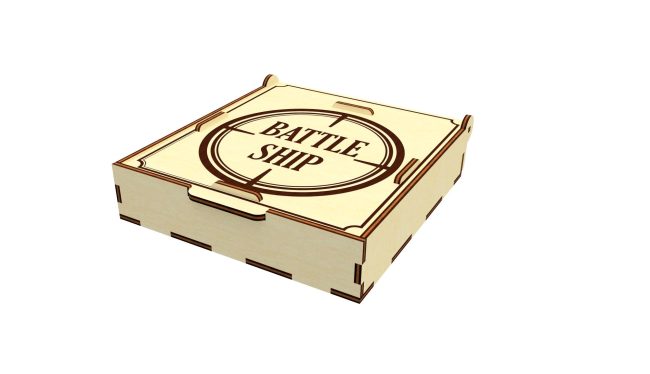

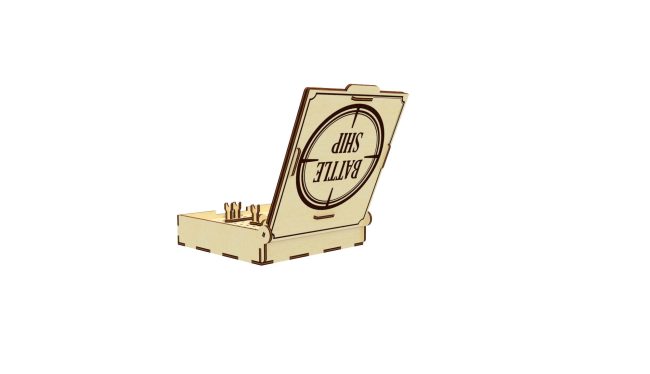

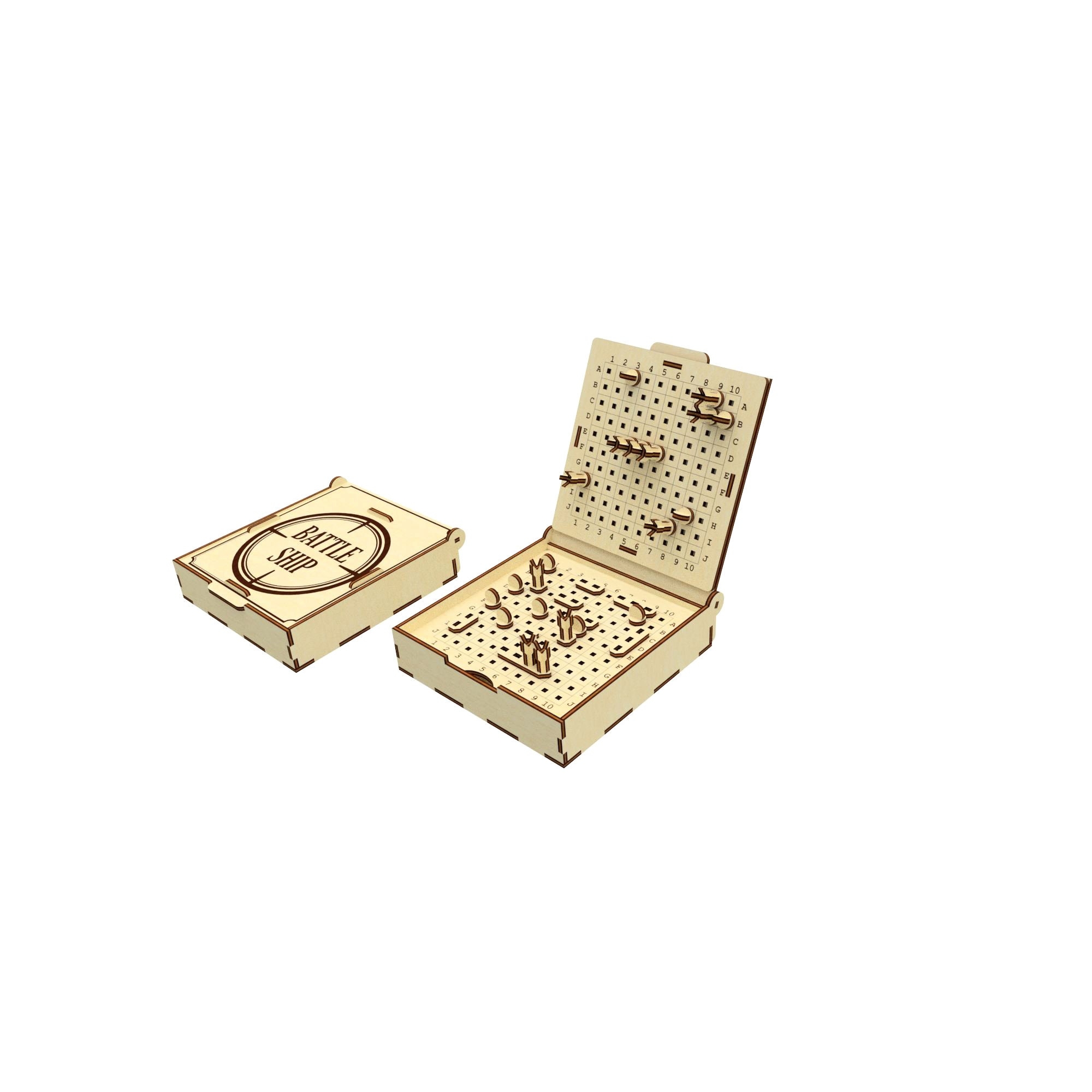

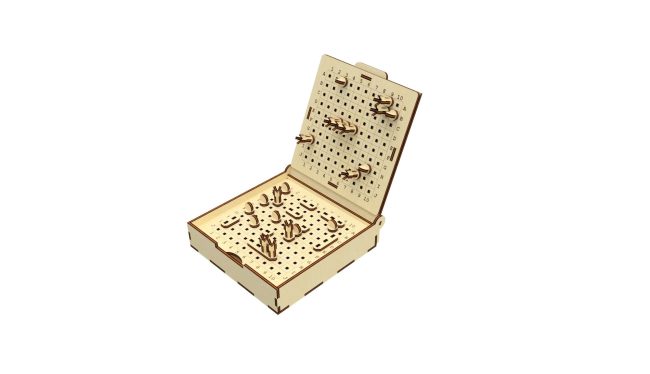

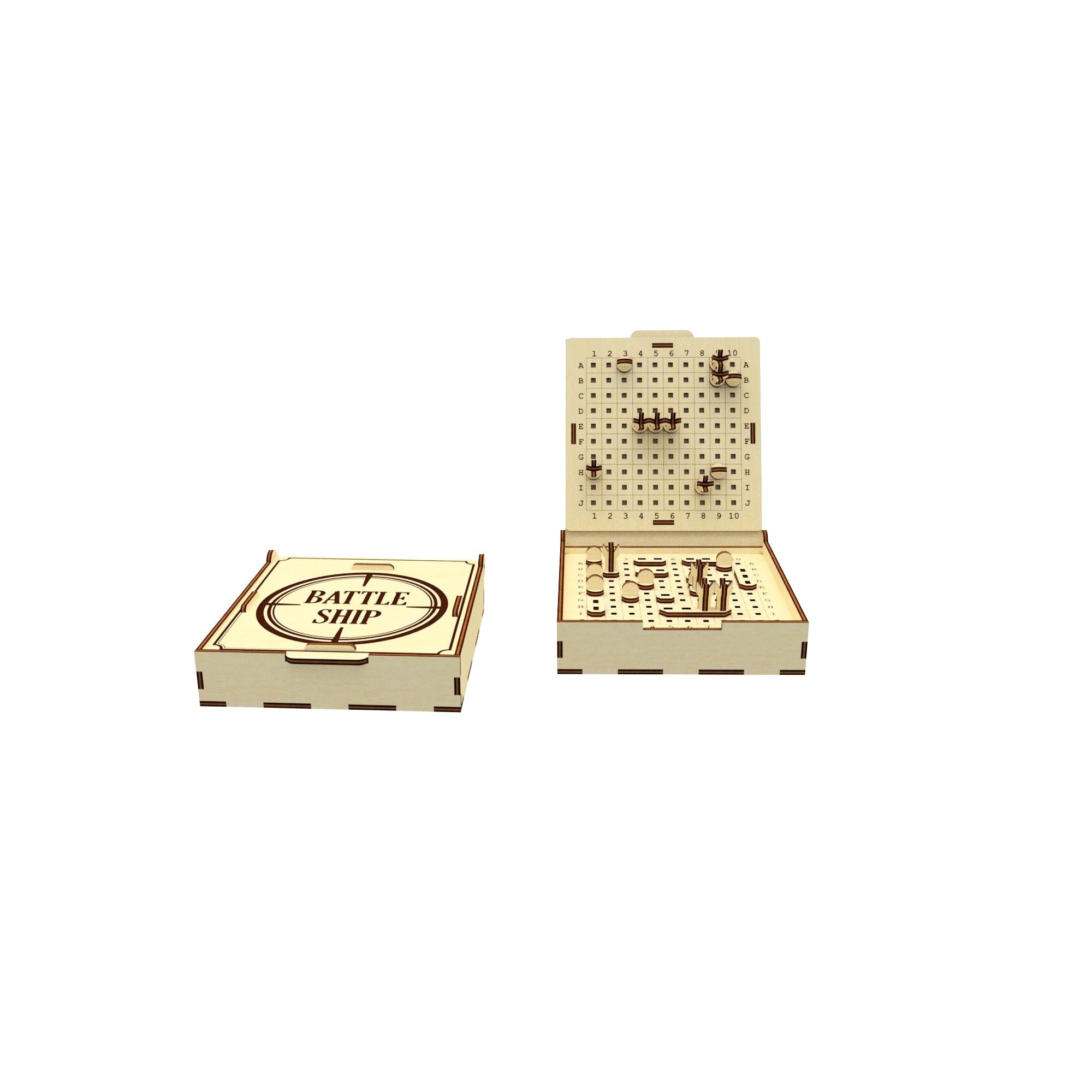

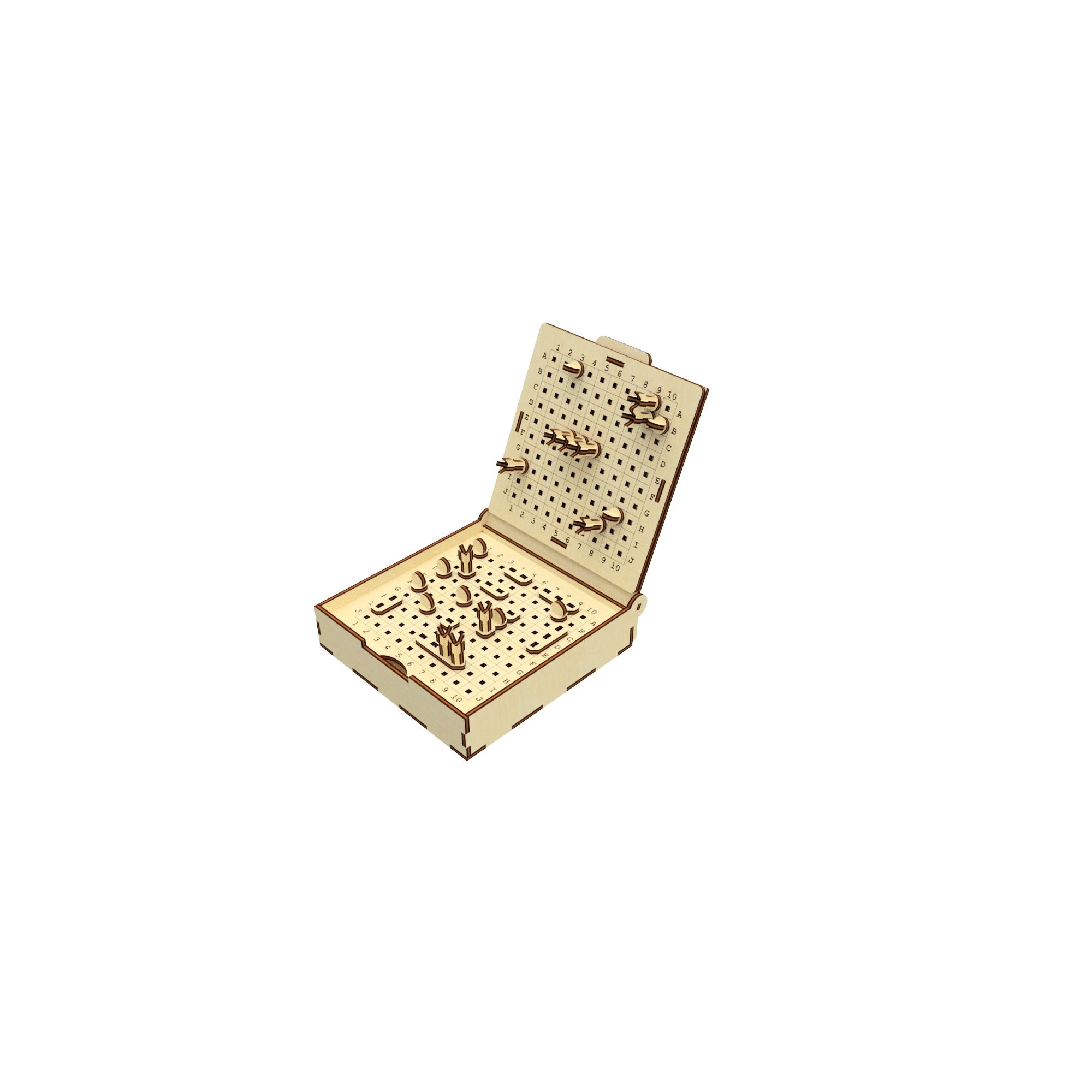

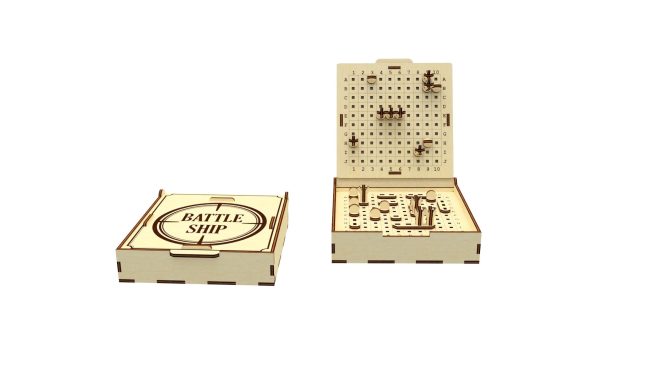

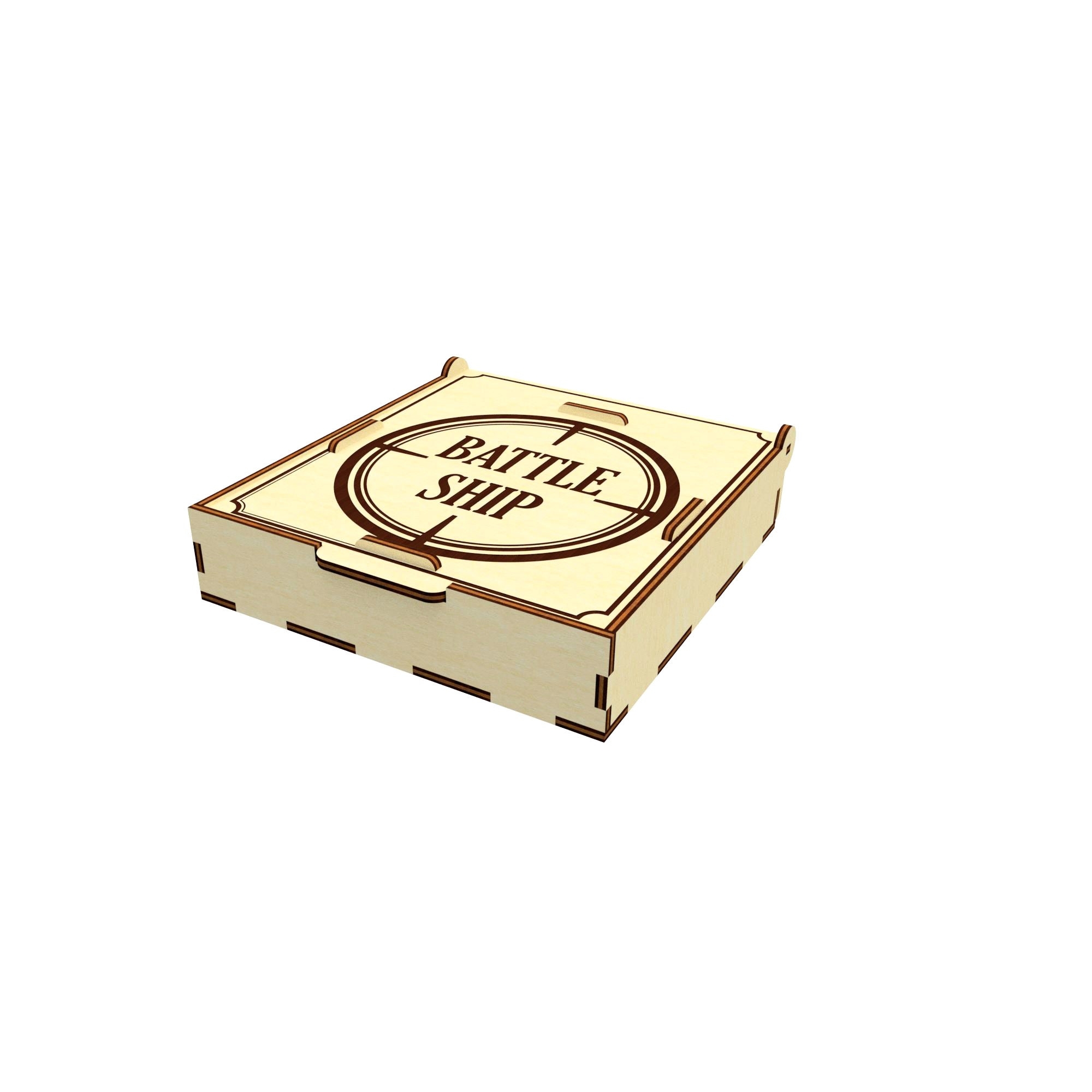

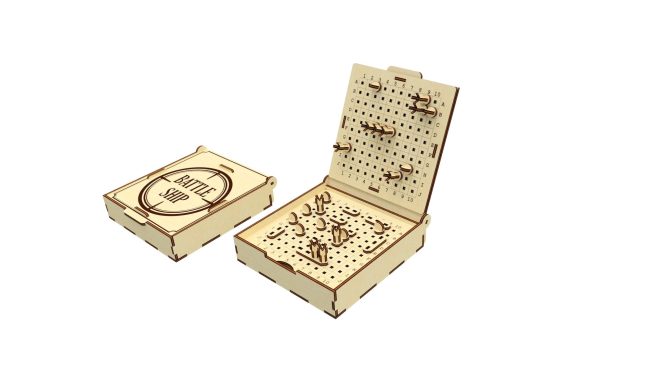

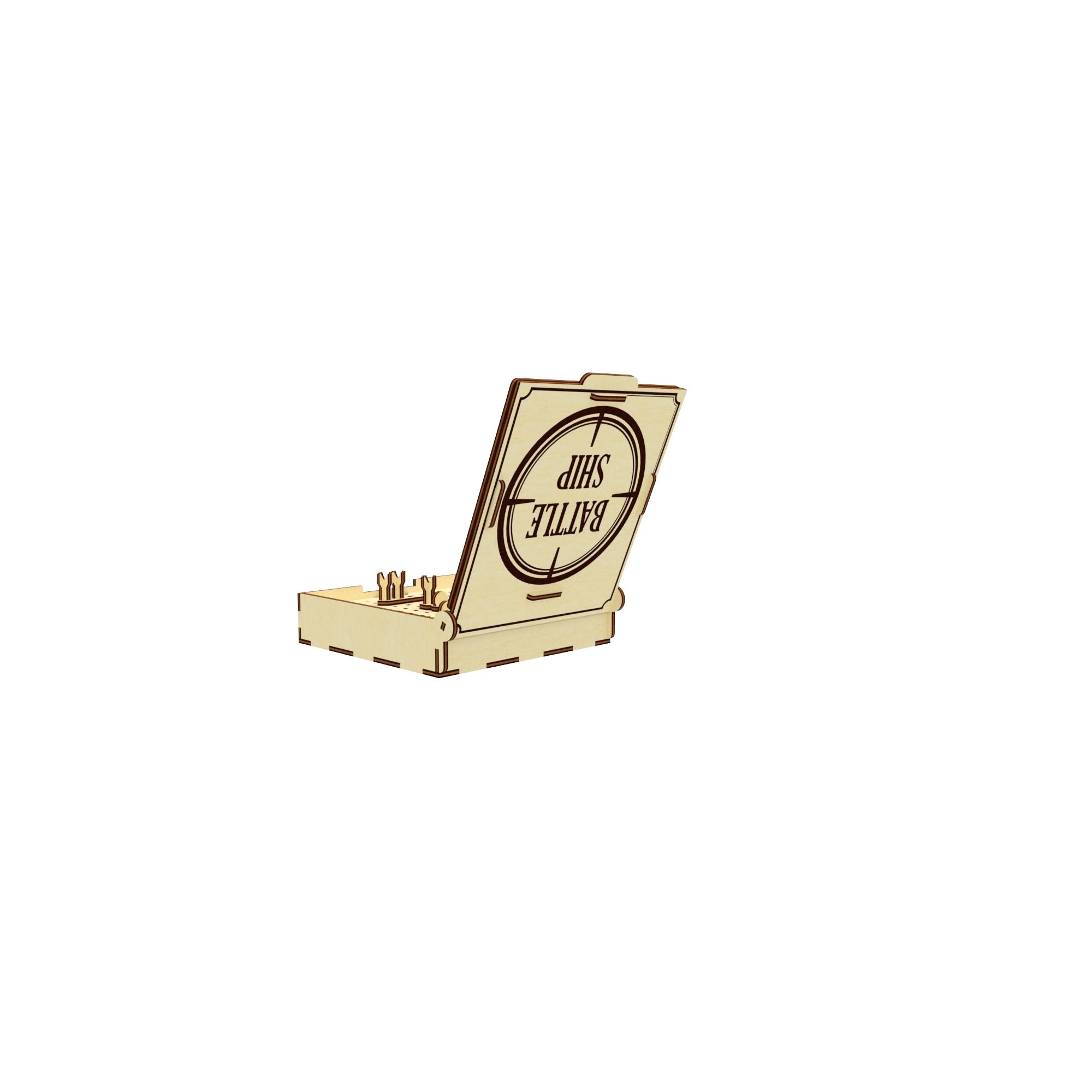

Model “Battle ship”. Vector plan for Laser Cutting Machines.

Material thickness: 3mm, 1/8in (3.175mm), 4mm, 6mm, 1/4in (6.35mm)

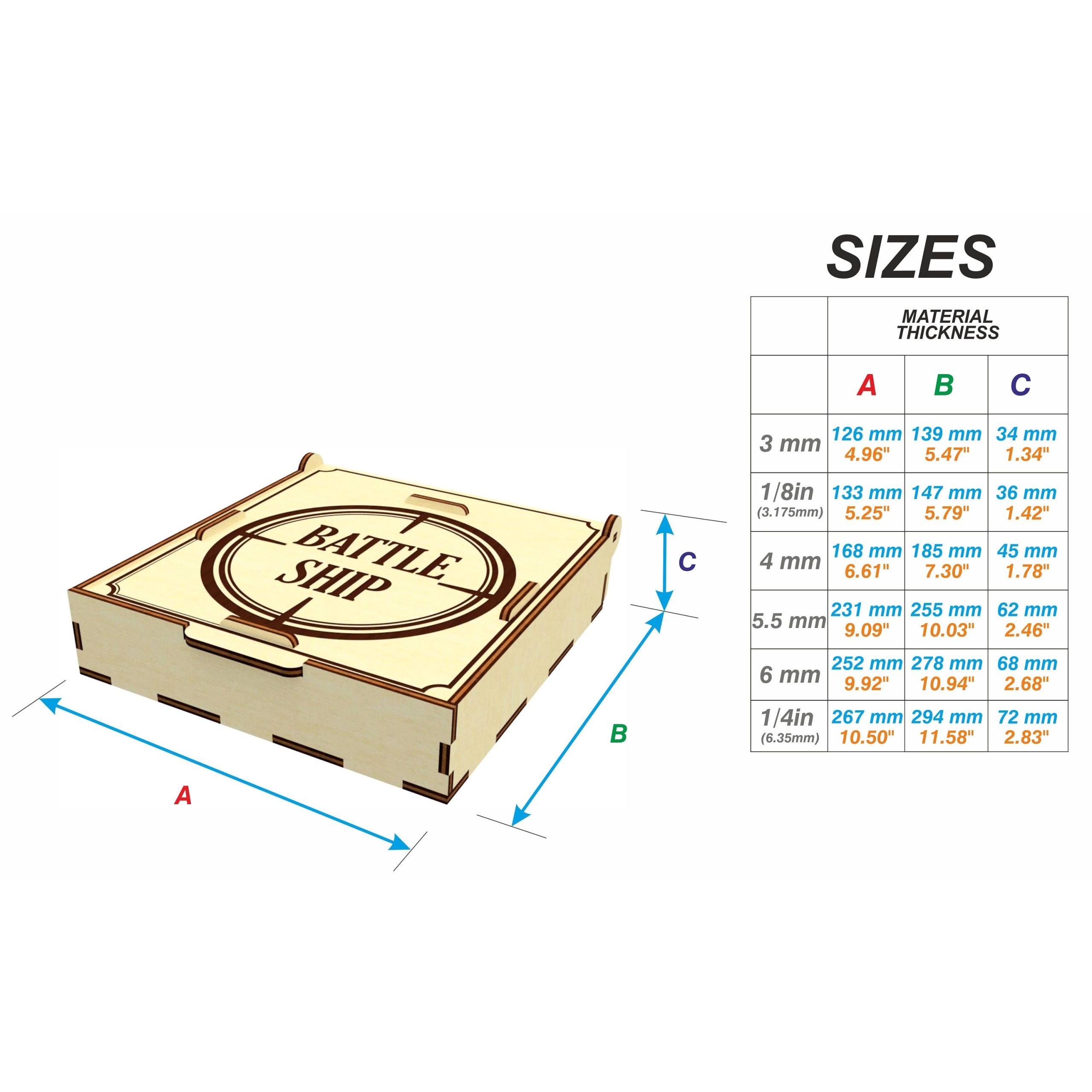

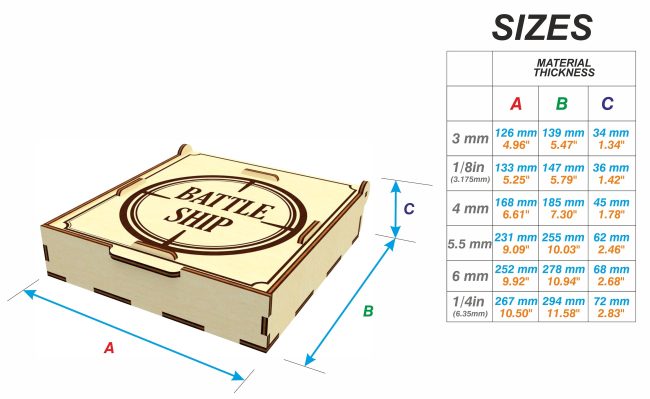

Sizes:
3 mm thickness: 126 x 139 x 34 mm (4.96 x 5.47 x 1.34”)
1/8in (3.175mm) thickness: 133 x 147 x 36 mm (5.25 x 5.79 x 1.42”)
4 mm thickness: 168 x 185 x 45 mm (6.61 x 7.30 x 1.78”)
6 mm thickness: 252 x 278 x 68 mm (9.92 x 10.94 x 2.68”)
5.5 mm thickness: 231 x 255 x 62 mm (9.09 x 10.03 x 2.46”)
1/4in (6.35mm) thickness: 267 x 294 x 72 mm (10.50 x 11.58 x 2.83”)

Work area:
3 mm thickness: 471 x 265 mm (18.54 x 10.43”)
1/8in (3.175mm) thickness: 499 x 251 mm (19.63 x 11.04”)
4 mm thickness: 628 x 353 mm (24.72 x 13.91”)
5.5 mm thickness: 765 x 486 mm (34 x 19.12)
6 mm thickness: 942 x 530 mm (37.09 x 20.87”)
1/4in (6.35mm) thickness: 997 x 561 mm (39.25 x 22.08”)

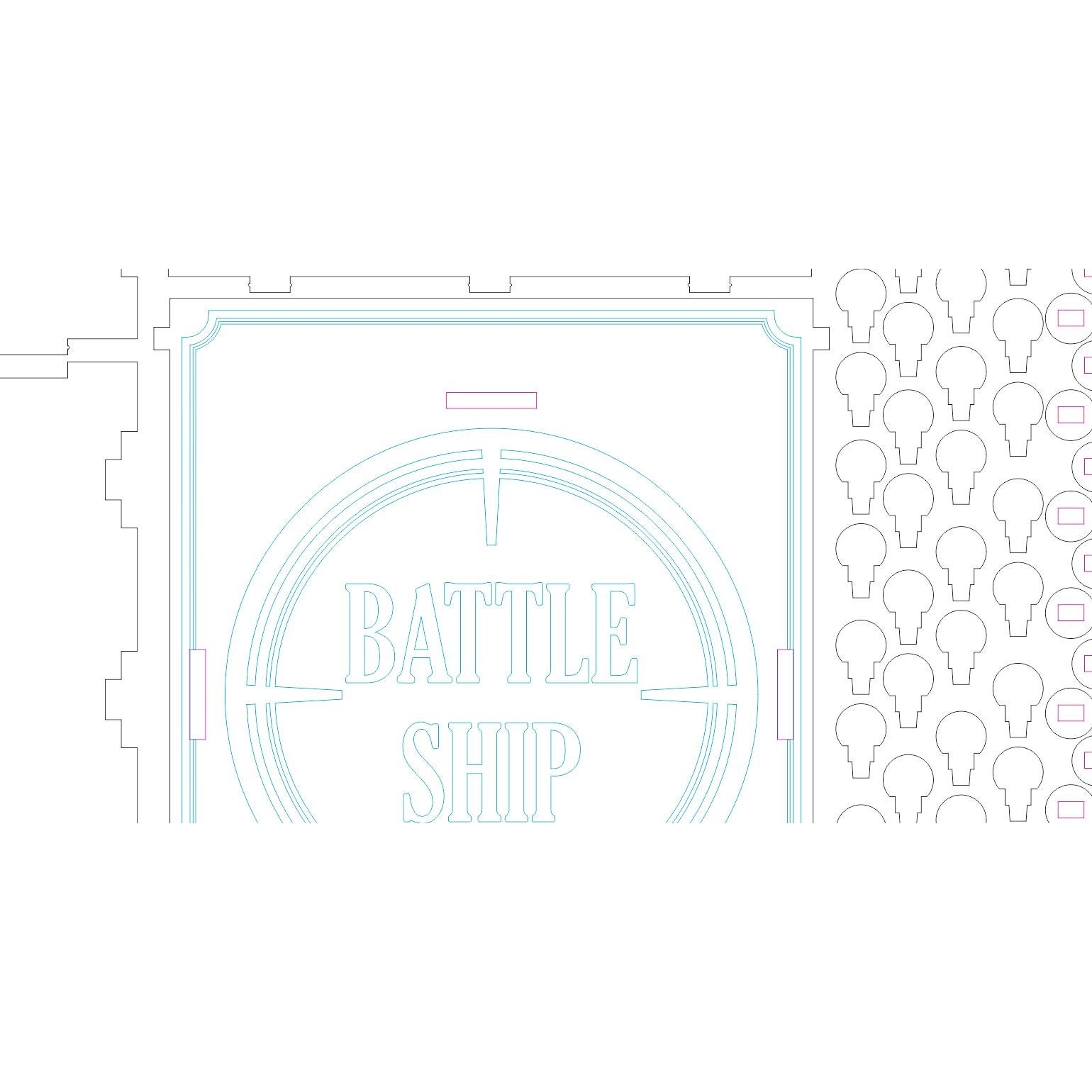

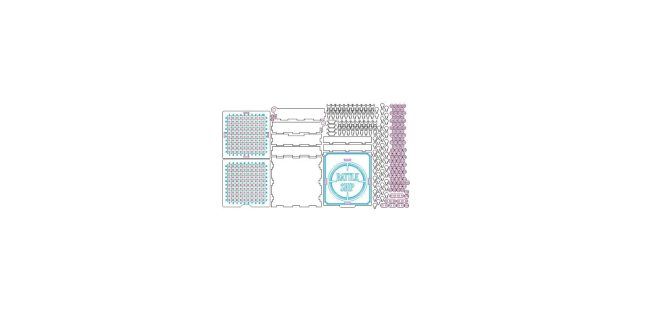

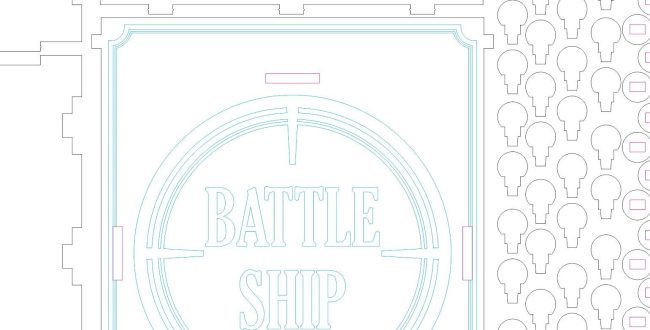

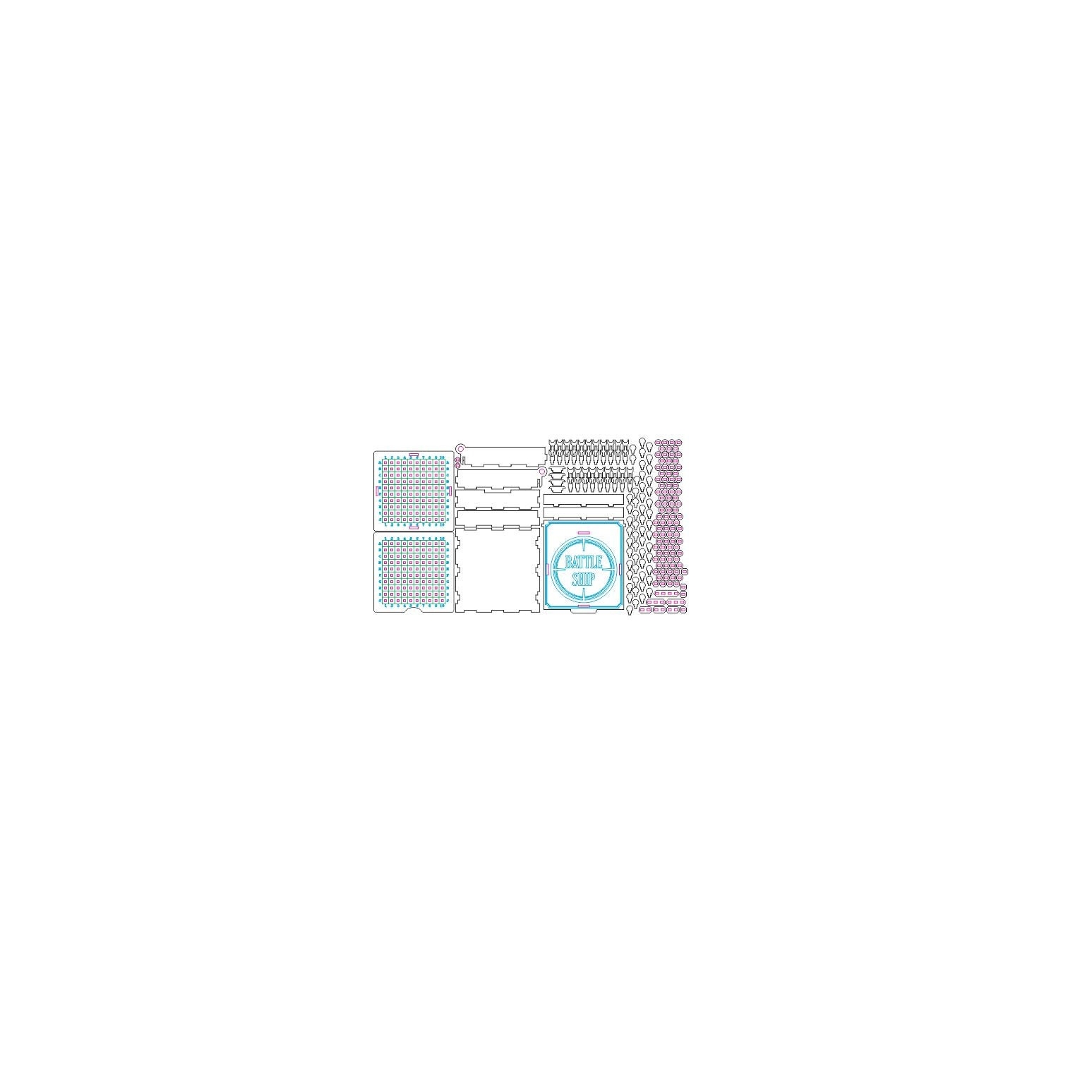

In the file:
blue color – engrave
green color – draw (cut with little power and big speed)
pink color – cut
black color – cut

What you receive:
You will download 1 ZIP files for 3mm, 1/8in (3.175mm), 4mm, 6mm, 1/4in (6.35mm) containing the following:

the CDR, DXF, AI and SVG file for laser cutting and PDF-assembly instruction

If you have any questions feel free to contact me:)

These files are vector-based and compatible with all laser cut software, milling machine, CNC plasma cutting machine

This is an Instant Digital Download

The item is non-refundable because it’s not physical.
YOU CAN use the files for personal purposes and for your small business. For commercial use, indicate my authorship “Designed by Ivan Bilous”
YOU CANNOT share, redistribute or resell the files.

Copyright is not transferable with the sale.
