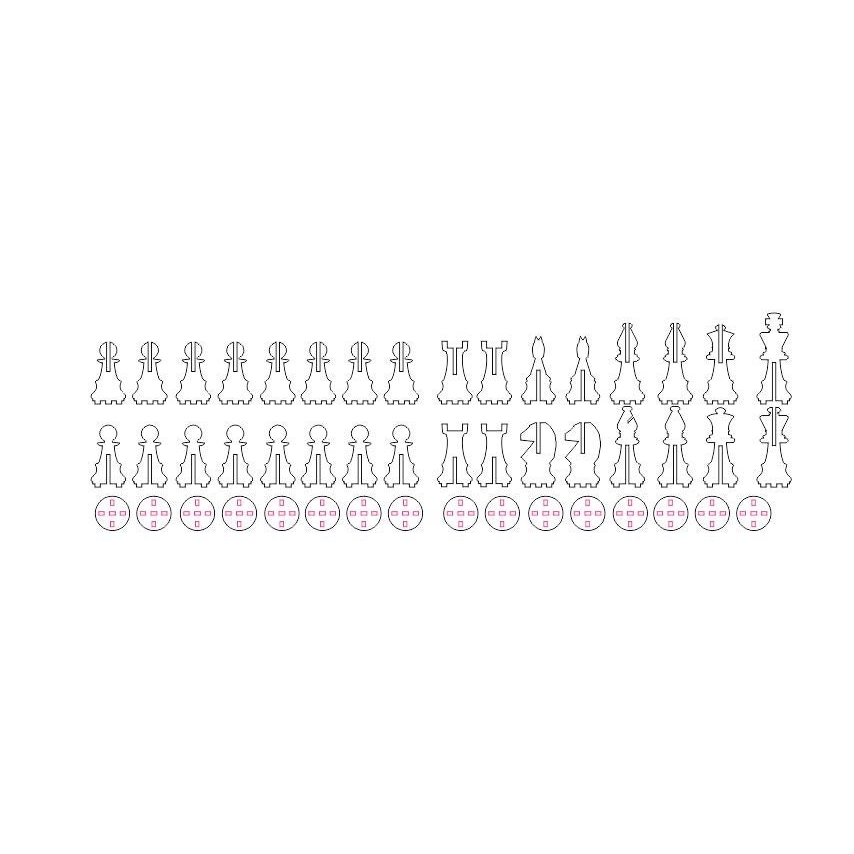

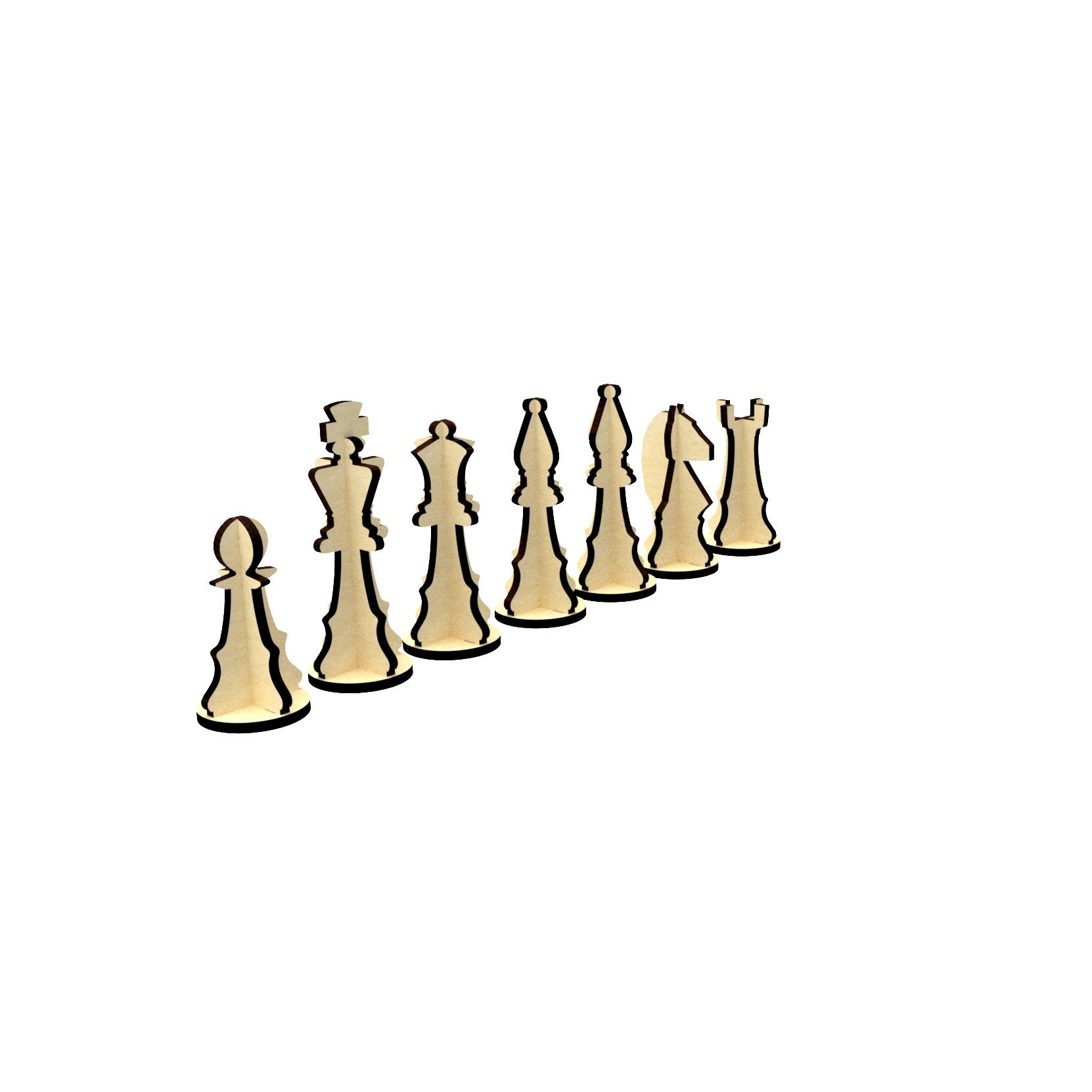

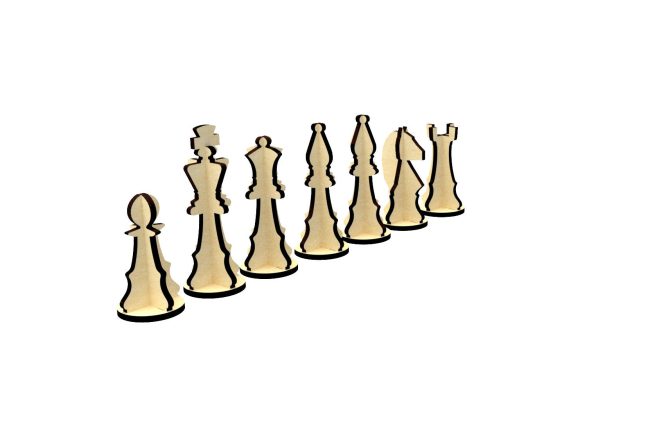

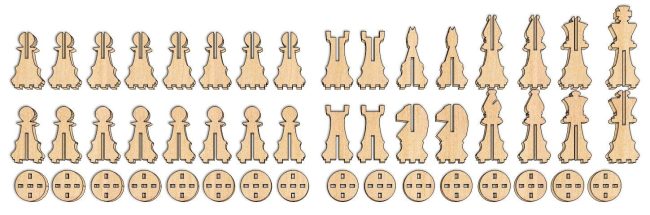

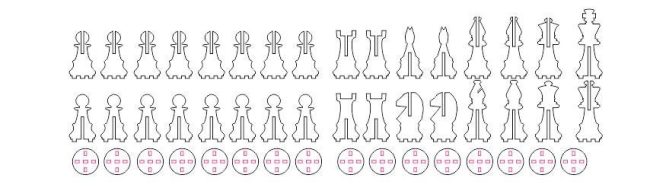

Chess figures for laser cut . Vector plan for laser cutting

Material thickness: 3 mm, 1/8in (3.175mm), 4 mm, 1/4”

For size 3mm

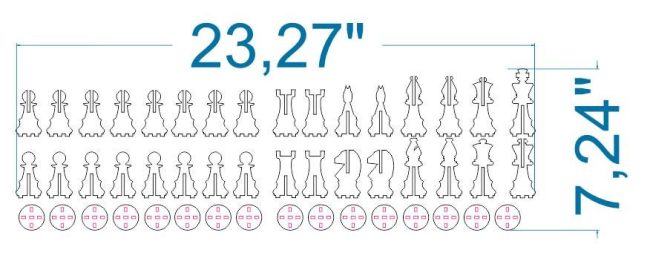

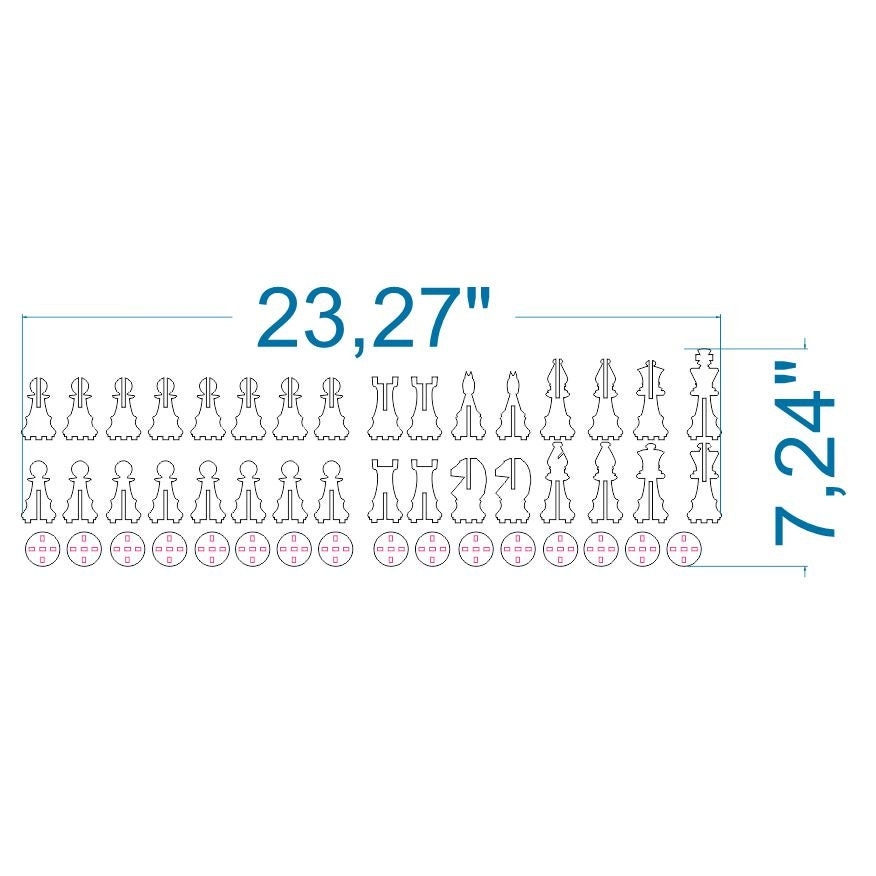

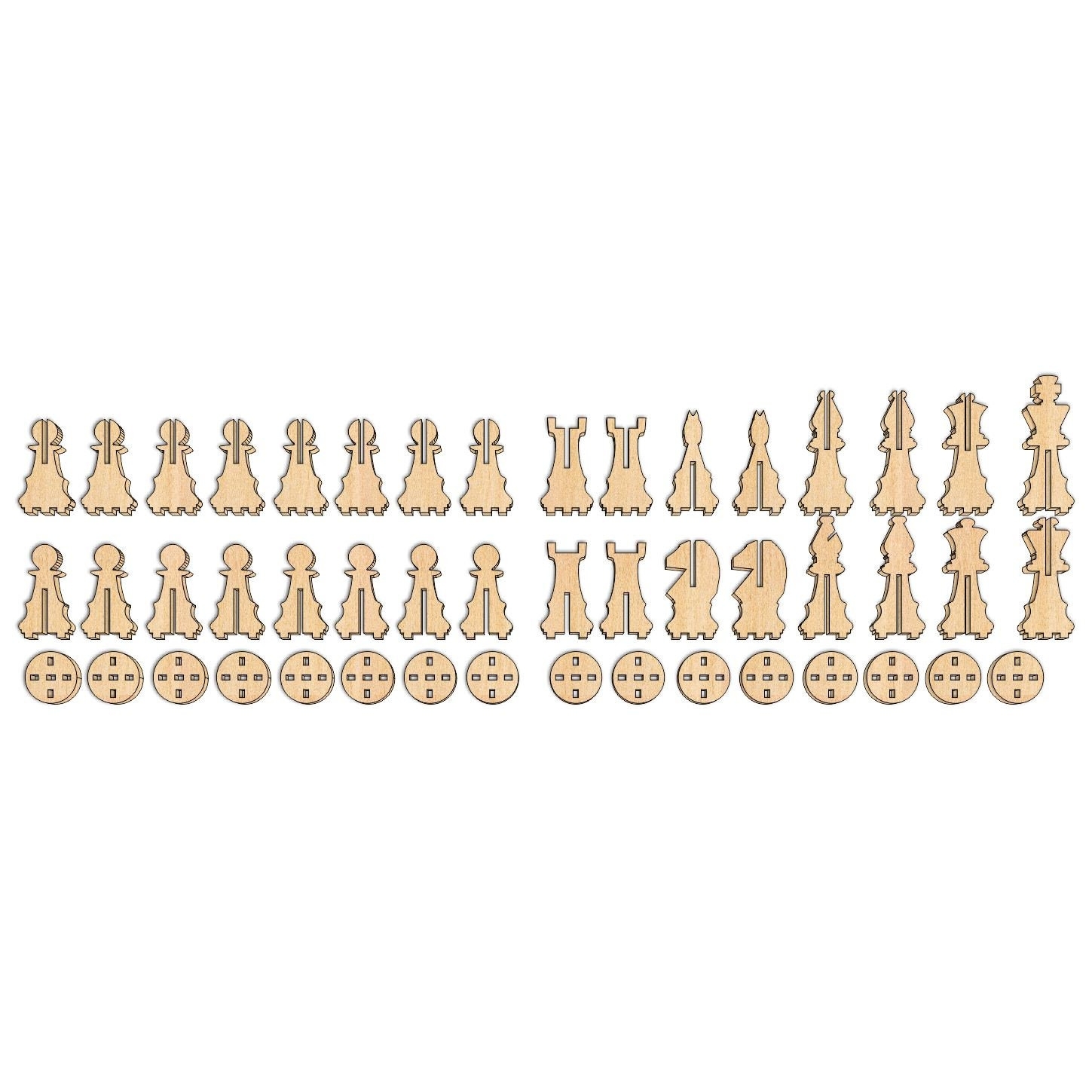

Work area 892mm x 144mm (23,34 ” x 7,248 “)

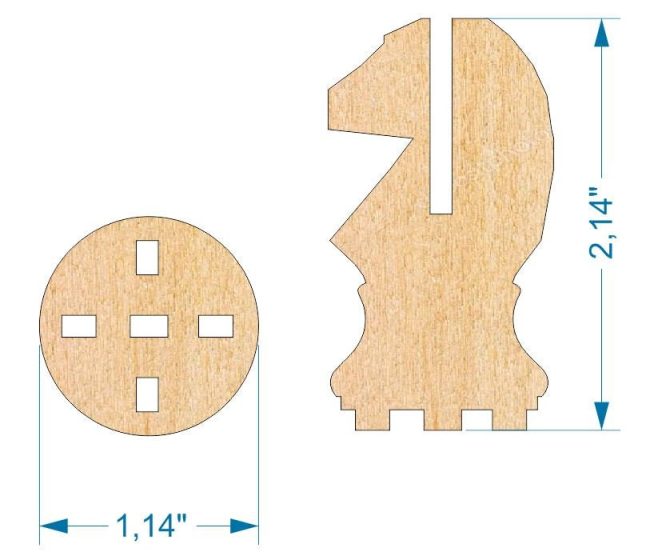

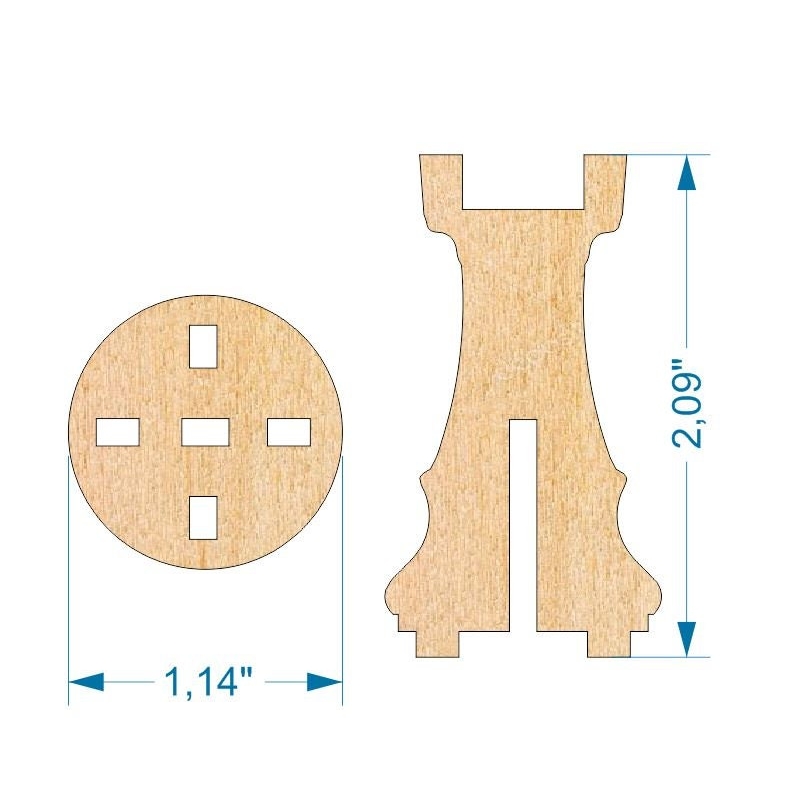

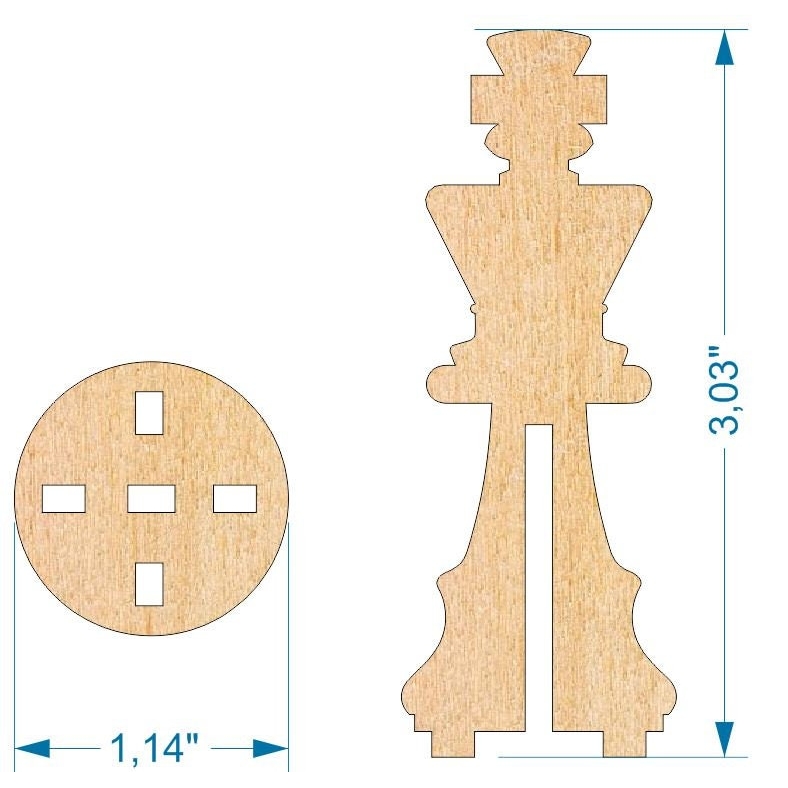

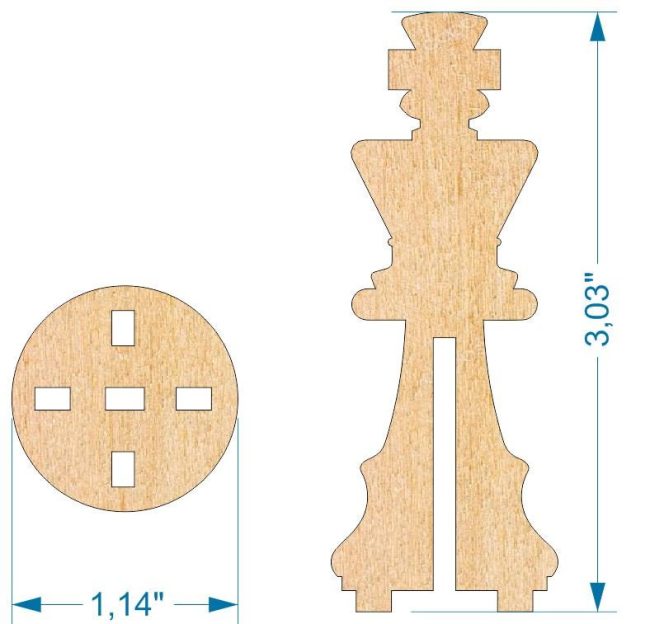

Bigger figure 77mm x 30mm x 30mm (3.03 ” x 1.18 ” x 1.18 “)

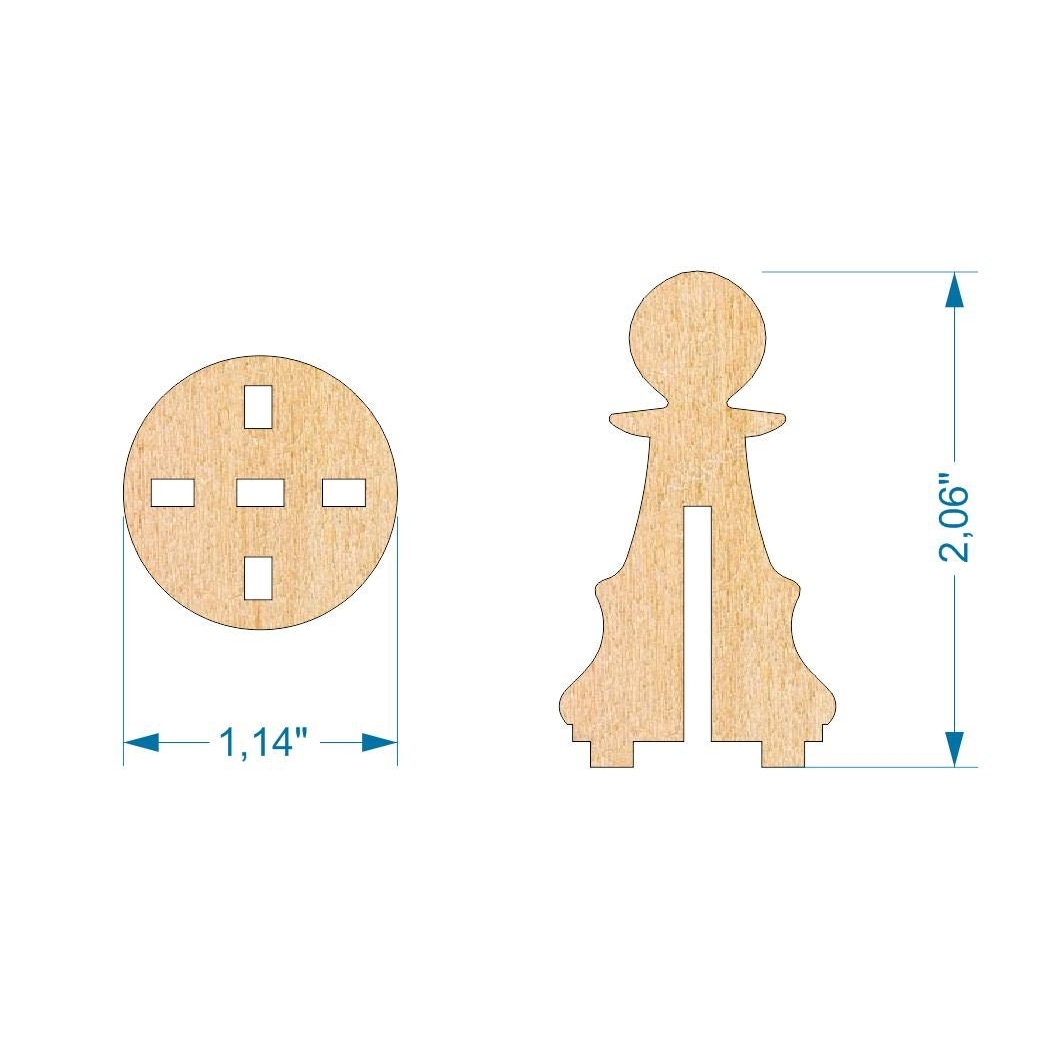

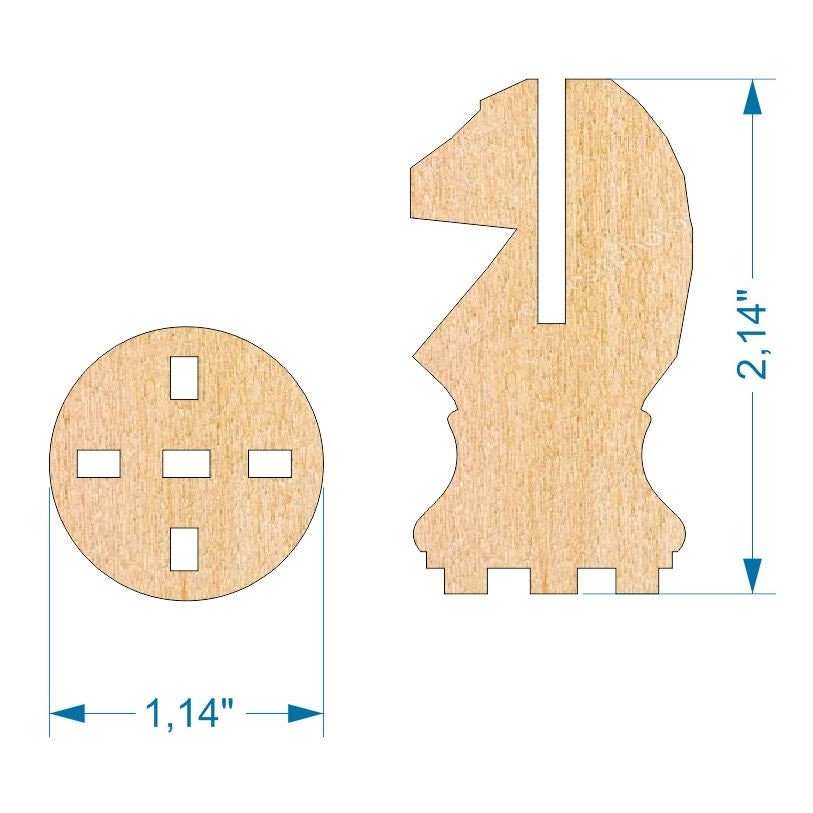

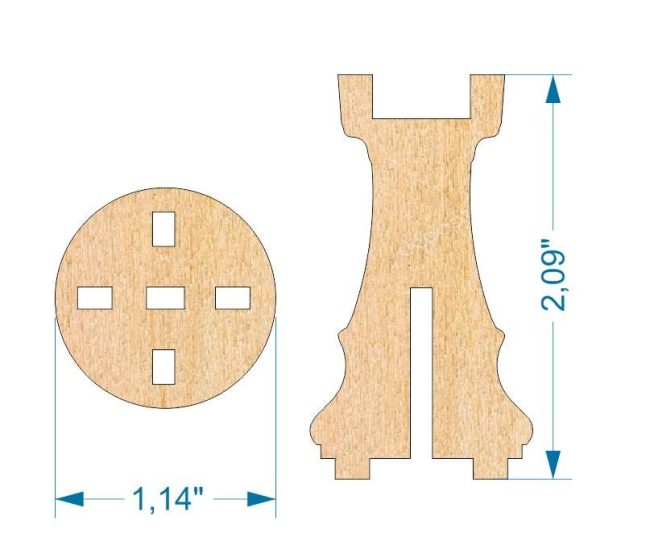

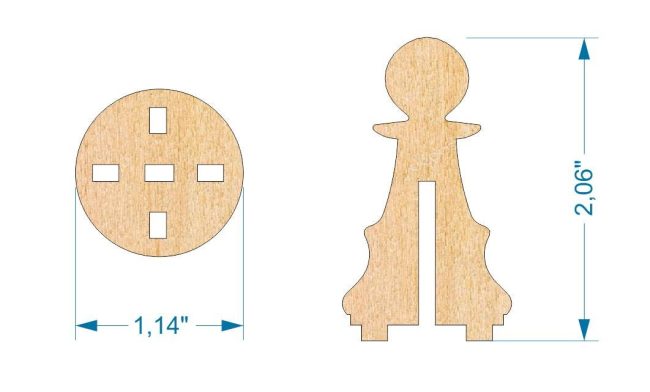

Smaller figure 52mm x 30mm x 30mm (2.05 ” x 1.18″ x 1.18 “)

For size 4mm
Work area 1189mm x 192mm (31.12 ” x 9.67 “)
Bigger figure 103mm x 40mm x 40mm (4.05 ” x 1.57 ” x 1.54 “)
Smaller figure 69mm x 40mm x 40mm (2.72 ” x 1.57 ” x 1.57 “)

For size 1/4”
Work area 49.45 ” x 15.357 “
Bigger figure 5.63 ” x 2.42 ” x2.42″
Smaller figure 4.38 ” x 2.42 ” x 2.42 “

What you get:
You will download 1 ZIP file containing the following:

the CDR, DXF, AI file for 3mm and 1/4 ”

These files are vector-based and compatible with all laser cut software, CNC plasma cutting machine

This is an Instant Digital Download

The item is non-refundable because it’s not physical.
YOU CAN use the files for personal purposes and for your small business.
YOU CANNOT share, redistribute or resell the files.

Copyright is not transferable with the sale.
